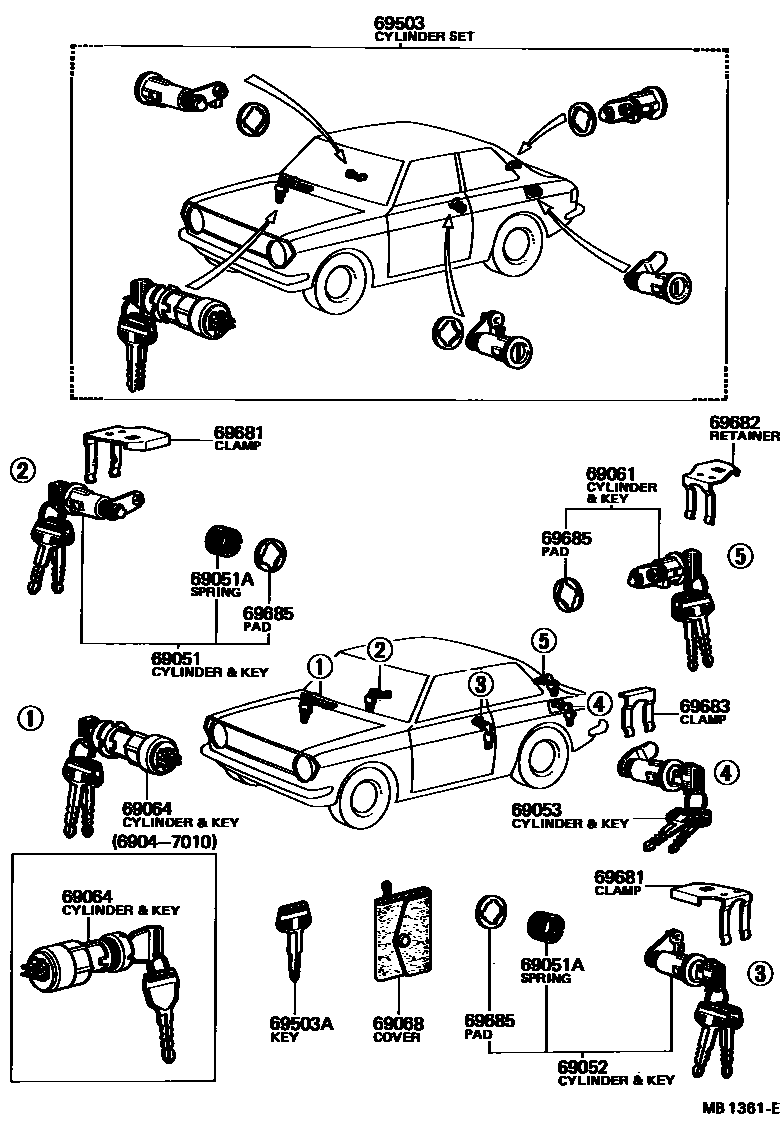

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-10010iKP30,UP30196904-197010

main69051-11020iKP36,UP36196904-197010

main69051-19015iKP30,31,UP30197010-197511

sub69051-19016

main69051-19016iKP50197601-197802

sub69051-19085

main69051-19025iKP36,37,UP36197010-197511

sub69051-19105

main69051-19105iKP3#197511-198808

69051ASPRING, DOOR LOCK CYLINDER

main90508-09279iKP30,31,50,UP30197010-197802

main90508-09280iKP36,UP36197010-197105

main90508-10278iKP36,37,38,39,UP36197105-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-10010iKP30,UP30196904-197010

main69052-11010iKP36,UP36196904-197010

main69052-19015iKP30,31,UP30197010-197511

sub69052-19016

main69052-19016iKP50197601-197802

sub69052-19085

main69052-19025iKP36,37,UP36197010-197511

sub69052-19105

main69052-19105iKP3#197511-198808

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69053-10010iKP30,UP30..DLX,SL196904-197010

sub69053-10011

main69053-10021iKP30,31,UP30..DLX,HDX197010-197112

sub69053-10011

main69053-11010iKP36,UP36..DLX196904-197010

sub69053-11011

main69053-11013iKP3#197511-198808

main69053-11021iKP36,UP36..DLX197010-197112

main69053-11022iKP36,37..DLX,HDX197201-197511

sub69053-11013

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69061-10010iKP30,UP30196904-196909

main69061-19015iKP30,UP30196909-197010

sub69061-10022

main69061-19016iKP30,31197201-197405

sub69061-19017

main69061-19017iKP30,31197405-197511

sub69061-19018

main69061-19018iKP50197601-197802

main69061-19026iKP30,31,UP30197010-197112

sub69061-10022

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69064-10011iKP30,31197201-197511

sub69064-10012

main69064-10012iKP50197601-197802

main69064-11012iKP3#197511-198808

main69064-11020iKP36,37197201-197209

sub69064-11021

main69064-11021iKP36,37197209-197511

sub69064-11012

main84045-10010iKP30,UP30196904-197010

main84045-10021iKP30,31,UP30197010-197112

main84045-11010iKP36,UP36196904-197010

main84045-11021iKP36,UP36197010-197112

sub84045-11010

69068COVER SUB-ASSY, KEY

main69555-17010iKP39198702-198808

main69555-20010iKP3#,50,UP3#197002-198702

main84041-12010iKP3#,UP3#196904-197002

sub69555-20010

69503CYLINDER SET, LOCK

main69005-19135iKP50197601-197802

sub69503-19505

main69005-19145iKP37..V197511-197809

main69005-96970iKP3#..PIC197511-198808

main69503-10011iKP30,UP30..STD196904-196909

main69503-10021iKP30,UP30..DLX,SL196904-196909

main69503-11031iKP36,UP36..V..STD196904-197010

main69503-11041iKP36,UP36..V..DLX196904-197010

main69503-11100iKP36..PIC..STD196911-197010

sub69503-11120

main69503-11110iKP36..PIC..DLX196911-197010

sub69503-11130

main69503-19015iKP30,UP30..STD196909-197010

main69503-19016iKP30,31,UP30..SR,STD197010-197112

sub69503-19036

main69503-19025iKP30,UP30..DLX196909-197010

main69503-19026iKP30,31,UP30..DLX,HDX197010-197112

sub69503-19046

main69503-19037iKP30,31197201-197209

sub69503-19038

main69503-19038iKP30,31197209-197405

sub69503-19505

main69503-19205iKP36,UP36..V..STD197010-197112

sub69503-19225

main69503-19215iKP36,UP36..V..DLX197010-197112

sub69503-19235

main69503-19226iKP36..V..STD197201-197209

sub69503-19227

main69503-19227iKP36..V..STD197209-197511

main69503-19236iKP36,37..V..(DLX,HDX)197201-197209

sub69503-19237

main69503-19237iKP36,37..V..(DLX,HDX)197209-197511

main69503-19245iKP36..PIC..STD197010-197112

sub69503-11101

sub69685-12010

main69503-19255iKP36..PIC..DLX197010-197112

main69503-19505iKP30,31197405-197511

main69503-96970iKP36..PIC..STD197201-197210

sub69503-96972

main69503-96971iKP36,37..PIC..(DLX,HDX)197201-197210

sub69503-96973

main69503-96972iKP36..PIC..STD197210-197511

main69503-96973iKP36,37..PIC..(DLX,HDX)197210-197511

69503AKEY, BLANK

main90999-00023iKP30,UP30196904-197010

main90999-00040iKP36,UP36196904-197010

sub90999-00057

main90999-00054iKP30,31,UP30197010-197511

sub90999-00066

main90999-00057iKP36,37,UP36197010-197511

sub90999-00067

main90999-00066iKP50197601-197802

sub90999-00085

main90999-00067iKP3#197511-198808

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-10010iKP30,UP30196904-197010

main69681-11010iKP36,UP36196904-197010

main69681-20010iKP3#,UP3#197010-197502

sub69681-20040

main69681-20040iKP3#,50197502-198808

69682RETAINER, LOCK CYLINDER

main69681-20010iKP30,31,UP30196909-197112

sub69681-20040

main69682-10010iKP30,31,50197201-197802

main69682-13010iKP36,37,UP36..V196904-197809

69683CLAMP, FUEL LOCK CYLINDER

main69681-20010iKP3#,UP3#..DLX,HDX197111-197502

sub69681-20040

main69681-20040iKP36..DLX;KP37,38,39197502-198808

main69683-10010iKP3#,UP3#..DLX,HDX,SL196904-197111

sub69681-20040

69685PAD, LOCK CYLINDER

main69685-12010iKP3#,50,UP3#196909-198808

13 parts on this diagram · 4 diagrams in section
