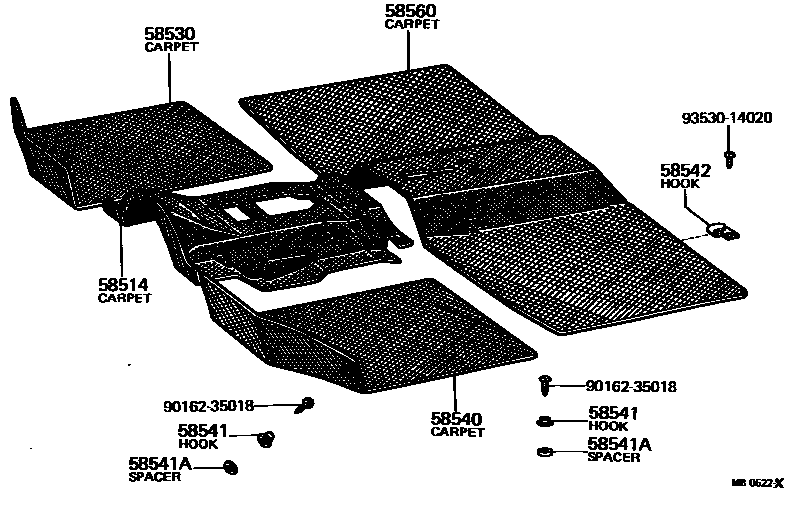

MAT & CARPET

0001 1 0002 1 0003 1

58514CARPET, FLOOR, FRONT CENTER

main58514-10010-01iKP3#..(SED,V)..4F..(DLX,SL)196904-197004

OFF BLACK,BLACK

main58514-10010-02iKP3#..(SED,V)..4F..(DLX,SL)196904-197004

RED,RED/MAROON

main58514-10011-01iKP3#..(SED,V)..4F..DLX197004-197010

OFF BLACK,BLACK

sub58514-10011

main58514-10011-02iKP3#..(SED,V)..4F..DLX197004-197010

RED,RED/MAROON

sub58514-10011

main58514-10012-01iKP30,36..(SED,V)..4F..DLX197010-197112

BLACK,BLACK

main58514-10012-05iKP30..4F..DLX197010-197112

BEIGE,BEIGE

main58514-10012-09iKP30..4F..DLX197010-197112

YELLOW,YELLOW

main58514-10013-01iKP37,50..HDX197511-197609

BLACK,BLACK,TRIM2#

main58514-10013-06iKP50..HDX197601-197609

BROWN,BROWN,TRIM4#

main58514-10014-01iKP37,50..MTM..HDX197609-197701

BLACK,BLACK,TRIM2#

main58514-10014-06iKP50..MTM..HDX197609-197701

BROWN,BROWN,TRIM4#

main58514-10015-01iKP37,50..MTM..HDX197701-197809

BLACK,BLACK,TRIM2#

main58514-10015-06iKP50..MTM..HDX197701-197802

LIGHT BROWN,BROWN,TRIM4#

main58514-10020-01iUP3#..DLX196904-197004

OFF BLACK,BLACK

main58514-10020-02iUP3#..DLX196904-197004

RED,RED/MAROON

main58514-10021-01iUP3#..DLX197004-197010

OFF BLACK,BLACK

main58514-10021-02iUP3#..DLX197004-197010

RED,RED/MAROON

main58514-10022-01iUP3#..DLX197010-197112

BLACK,BLACK

main58514-10022-05iUP30..DLX197010-197112

BEIGE,BEIGE

main58514-10022-09iUP30..DLX197010-197112

YELLOW,YELLOW

main58514-10030-01iKP30..2FC..DLX196910-197010

OFF BLACK,BLACK

main58514-10030-02iKP30..2FC..DLX196910-197010

RED,RED/MAROON

main58514-10031-01iKP30..2FC..HDX197201-197511

BLACK,BLACK,TRIM2#

sub58514-10031

main58514-10031-01iKP30,31..2FC..(DLX,HDX)197010-197112

BLACK,BLACK

sub58514-10031

main58514-10031-05iKP30,31..2FC..(DLX,HDX)197010-197112

BEIGE,BEIGE

sub58514-10031

main58514-10031-06iKP30..2FC..HDX197201-197410

OLIVE BROWN,BROWN,TRIM4#

sub58514-10031

main58514-10031-09iKP30,31..2FC..(DLX,HDX)197010-197112

YELLOW,YELLOW

sub58514-10031

main58514-10031-16iKP30..2FC..HDX197410-197511

BROWN,BROWN,TRIM4#

sub58514-10031

main58514-10033-01iKP50..2FC..HDX197610-197701

BLACK,BLACK,TRIM2#

main58514-10033-06iKP50..2FC..HDX197610-197701

BROWN,BROWN,TRIM4#

main58514-10034-01iKP50..2FC..HDX197701-197802

BLACK,BLACK,TRIM2#

main58514-10034-06iKP50..2FC..HDX197701-197802

LIGHT BROWN,BROWN,TRIM4#

main58514-10041-01iKP31..4F..HDX197010-197112

BLACK,BLACK

main58514-10041-05iKP31..4F..HDX197010-197112

BEIGE,BEIGE

main58514-10041-09iKP31..4F..HDX197010-197112

YELLOW,YELLOW

main58514-10060-01iKP30,31..4F..(HDX,XL)197201-197511

BLACK,BLACK,TRIM2#

sub58514-10060

main58514-10060-06iKP30,31..4F..(HDX,XL)197201-197410

OLIVE BROWN,BROWN,TRIM4#

sub58514-10060

main58514-10060-16iKP30,31..4F..(HDX,XL)197410-197511

BROWN,BROWN,TRIM4#

sub58514-10060

main58514-10061-01iKP50..HDX,XL197601-197609

W/CONSOLE,BLACK,BLACK,TRIM2#

main58514-10061-06iKP50..HDX,XL197601-197609

W/CONSOLE,BROWN,BROWN,TRIM4#

main58514-10062-01iKP50..MTM..(HDX,XL)197609-197701

W/CONSOLE,BLACK,BLACK,TRIM2#

main58514-10062-06iKP50..MTM..(HDX,XL)197609-197701

W/CONSOLE,BROWN,BROWN,TRIM4#

main58514-10063-01iKP50..MTM..(HDX,XL)197701-197802

W/CONSOLE,BLACK,BLACK,TRIM2#

main58514-10063-06iKP50..MTM..(HDX,XL)197701-197802

W/CONSOLE,LIGHT BROWN,BROWN,TRIM4#

58530CARPET ASSY, FLOOR, FRONT RH

main58510-10182-01iKP37,50..HDX,XL197701-197809

BLACK,BLACK,TRIM2#

main58510-10182-06iKP50..HDX,XL197701-197802

LIGHT BROWN,BROWN,TRIM4#

main58530-10010-01iKP31..HDX197010-197112

BLACK,BLACK

sub58530-10010

main58530-10010-01iKP30,31..HDX,XL197201-197609

BLACK,BLACK,TRIM2#

sub58530-10010

main58530-10010-05iKP31..HDX197010-197112

BEIGE,BEIGE

sub58530-10010

main58530-10010-06iKP30,31..HDX,XL197201-197410

OLIVE BROWN,BROWN,TRIM4#

sub58530-10010

main58530-10010-09iKP31..HDX197010-197112

YELL0W,YELLOW

sub58530-10010

main58530-10010-16iKP30,31,50..HDX,XL197410-197609

BROWN,BROWN,TRIM4#

sub58530-10010

main58530-10011-01iKP37,50..HDX,XL197609-197701

BLACK,BLACK,TRIM2#

main58530-10011-06iKP50..HDX,XL197609-197701

BROWN,BROWN,TRIM4#

58540CARPET ASSY, FLOOR, FRONT LH

main58540-10010-01iKP31..HDX197010-197112

BLACK,BLACK

sub58540-10010

main58540-10010-01iKP30,31..HDX,XL197201-197609

BLACK,BLACK,TRIM2#

sub58540-10010

main58540-10010-05iKP31..HDX197010-197112

BEIGE,BEIGE

sub58540-10010

main58540-10010-06iKP30,31..HDX,XL197201-197410

OLIVE BROWN,BROWN,TRIM4#

sub58540-10010

main58540-10010-09iKP31..HDX197010-197112

YELL0W,YELLOW

sub58540-10010

main58540-10010-16iKP30,31,50..HDX,XL197410-197609

BROWN,BROWN,TRIM4#

sub58540-10010

main58540-10011-01iKP37,50..HDX,XL197609-197701

BLACK,BLACK,TRIM2#

main58540-10011-06iKP50..HDX,XL197609-197701

BROWN,BROWN,TRIM4#

main58540-10012-01iKP37,50..HDX,XL197701-197809

BLACK,BLACK,TRIM2#

main58540-10012-06iKP50..HDX,XL197701-197802

LIGHT BROWN,BROWN,TRIM4#

58541HOOK, MALE, NO.1(FOR CARPET)

main58521-20010iKP31..HDX197010-197809

58541ASPACER(FOR CARPET HOOK MALE NO.1)

main90560-04166iKP31..HDX197010-197606

58542HOOK, MALE, NO.2(FOR CARPET)

main58521-10010iKP31..HDX197010-197112

58560CARPET ASSY, FLOOR, REAR

main58560-10010-01iKP31..HDX197010-197112

BLACK,BLACK

main58560-10010-05iKP31..HDX197010-197112

BEIGE,BEIGE

main58560-10010-09iKP31..HDX197010-197112

YELLOW,YELLOW

main58560-10011-01iKP30,31..HDX,XL197201-197511

BLACK,BLACK,TRIM2#

sub58560-10011

sub58570-10010

main58560-10011-06iKP30,31..HDX,XL197201-197410

OLIVE BROWN,BROWN,TRIM4#

sub58560-10011

sub58570-10010

main58560-10011-16iKP30,31..HDX,XL197410-197511

BROWN,BROWN,TRIM4#

sub58560-10011

sub58570-10010

main58560-10012-01iKP50..HDX,XL197601-197609

BLACK,BLACK,TRIM2#

sub58570-10010

main58560-10012-06iKP50..HDX,XL197601-197609

BROWN,BROWN,TRIM4#

sub58570-10010

main58560-10013-01iKP50..HDX,XL197609-197701

BLACK,BLACK,TRIM2#

sub58570-10011

main58560-10013-06iKP50..HDX,XL197609-197701

BROWN,BROWN,TRIM4#

sub58570-10011

main58560-10014-01iKP37,50..HDX,XL197701-197809

BLACK,BLACK,TRIM2#

main58560-10014-06iKP50..HDX,XL197701-197802

LIGHT BROWN,BROWN,TRIM4#

main58560-11020-01iKP37..HDX197511-197609

BLACK,BLACK,TRIM2#

sub58560-11020

sub58570-10010

main58560-11021-01iKP37..HDX197609-197701

BLACK,BLACK,TRIM2#

sub58570-10011

main58560-11022-01iKP37..HDX197701-197705

BLACK,BLACK,TRIM2#

sub58560-10014

9016235018

main90162-35018

9353014020

main93530-14020

9 parts on this diagram · 3 diagrams in section
