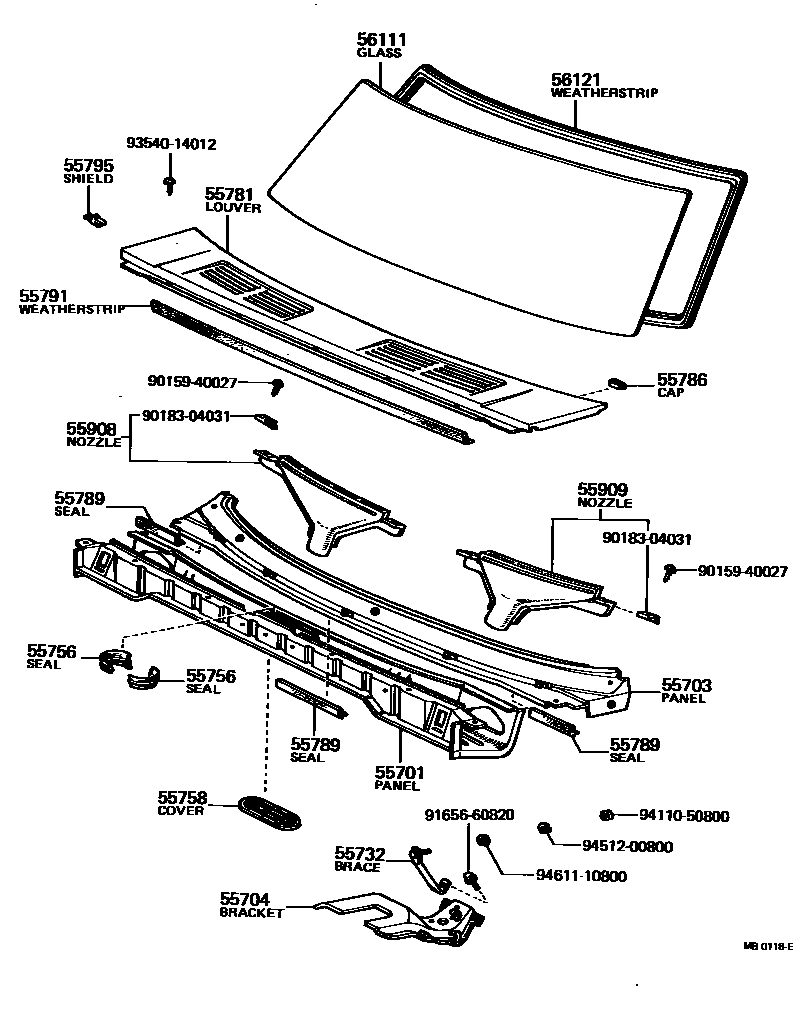

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55701-10030iKP3#,UP3#196904-197010

main55701-10031iKP3#,UP3#197010-197112

sub55701-10030

main55701-10032iKP3#,50197201-198808

55703PANEL SUB-ASSY, COWL TOP, REAR

main55703-10010iKP3#,UP3#196904-197010

main55703-10011iKP3#,50,UP3#197010-198808

55704BRACKET SUB-ASSY, STEERING COLUMN CLAMP

main55704-10010iKP3#,UP3#196904-197010

main55704-10011iKP3#,UP3#197010-197112

main55704-10012iKP36,37,38,39197310-198808

RIGID STEERING

main55704-10012iKP3#..DLX,HDX,S,STD197201-197310

main55704-10030iKP3#..SED,V197311-198201

COLLAPSIBLE STEERING

main55704-10030iKP31..SR,ST,XL197201-197311

55732BRACE, STEERING COLUMN BRACKET

main55733-10010iKP3#,50197201-198201

55756SEAL, HEATER AIR DUCT

main55756-10010iKP3#,50197201-198808

main55785-10010iKP3#,UP3#196904-197112

sub55756-10010

55758COVER, HEATER AIR DUCT

main55759-10010iKP30,31,36,UP3#..S,STD196904-197503

55781LOUVER, COWL VENTILATOR

main55781-10010iKP3#,UP3#196904-197112

main55781-10011iKP3#,50197201-198808

55786CAP, COWL VENTILATOR LOUVER

main55786-20020iKP3#,50,UP3#196904-198808

55789SEAL, COWL TOP TO LOUVER

main55788-10010iKP3#,50,UP3#196904-198808

CTR

main55789-10010iKP3#,50,UP3#196904-198808

SIDE

55791WEATHERSTRIP, HOOD TO COWL TOP

main55791-10010iKP3#,50,UP3#196904-198808

55795SHIELD, COWL TOP TO LOUVER, SIDE

main55795-10010iKP3#,50,UP3#196904-198808

RH

main55796-10010iKP3#,50,UP3#196904-198808

LH

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55908-10010iKP3#,UP3#196904-197010

main55951-10020iKP3#,50,UP3#197010-198808

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55909-10010iKP3#,UP3#196904-197010

main55952-10020iKP3#,50,UP3#197010-198808

56111GLASS, WINDSHIELD

main56111-10050iKP3#,50..STD196904-198608

sub56111-10270

main56111-10060iKP3#..DLX,HDX,ST,XL196904-198608

sub56111-10080

main56111-10070iKP50..XL197201-197802

sub56111-10270

main56111-10270iKP39198608-198808

56121WEATHERSTRIP, WINDSHIELD

main56121-10050iKP3#,UP3#..SR,STD196904-198808

main56121-10060iKP3#..DLX,HDX,S,SR,ST,XL196904-198808

9015940027

main90159-40027

9018304031

main90183-04031

9165660820

main91656-60820

9354014812

main93540-14812

9411050800

main94110-50800

9451200800

main94512-00800

9461110800

main94611-10800

22 parts on this diagram · 1 diagram in section
