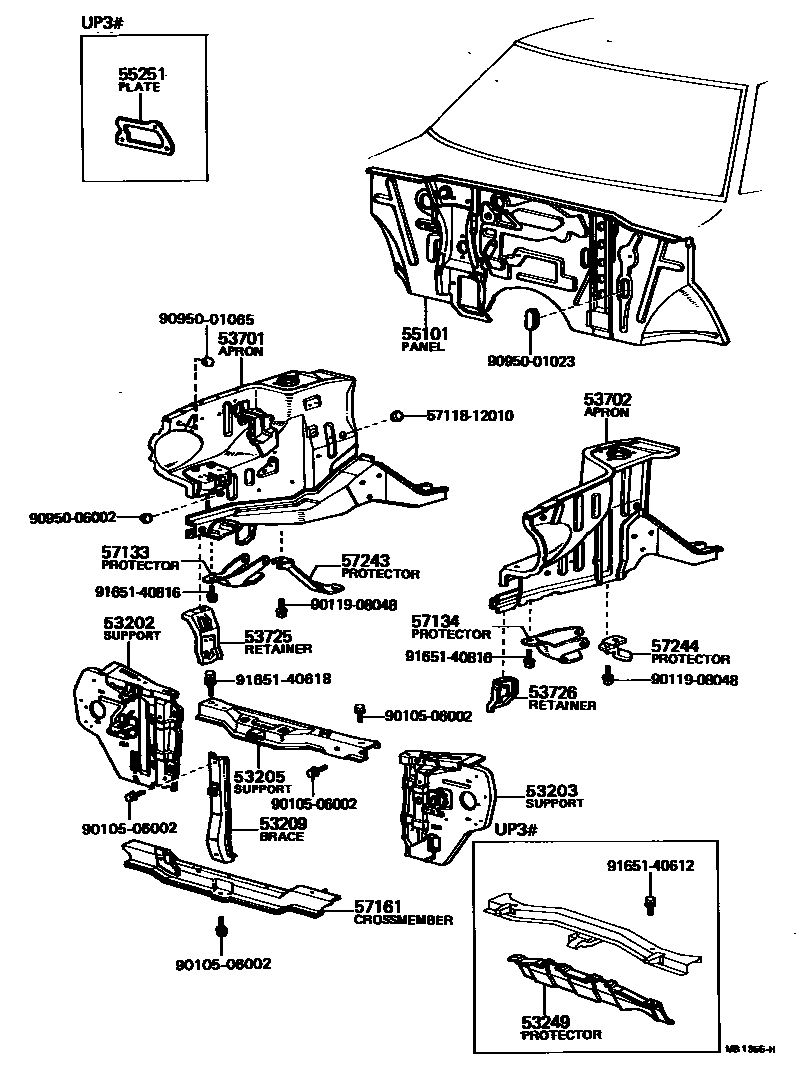

FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53204-10010iKP3#196904-197010

main53204-10011iKP3#197010-197112

main53204-10012iKP3#197201-197310

sub53204-10013

main53204-10013iKP3#197310-197511

sub53204-10040

main53204-10014iKP3#,50197511-198808

main53204-10020iUP3#196904-197010

main53204-10021iUP3#197010-197112

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53205-10010iKP3#196904-197010

main53205-10011iKP3#197010-197112

main53205-10012iKP3#197201-197511

sub53205-10030

main53205-10013iKP3#,50197511-198808

main53205-10020iUP3#196904-197010

main53205-10021iUP3#197010-197112

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53202-10010iKP3#196904-197010

sub53202-10030

main53202-10011iKP3#197010-197112

main53202-10012iKP3#197201-197407

sub53202-10013

main53202-10013iKP3#197407-197511

main53202-10014iKP3#,50197511-198808

main53202-10020iUP3#196904-197010

main53202-10021iUP3#197010-197112

53209BRACE SUB-ASSY, HOOD LOCK

main53209-10020iKP3#,50197201-198808

main53217-10030iKP3#,UP3#196904-197112

53249PROTECTOR, AIR CLEANER NOSE

main53249-10010iUP3#196904-197112

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-10041iKP3#,UP3#196904-197110

sub53701-10042

sub77241-10024

sub77241-10033

sub77241-11062

main53701-10042iKP3#,UP3#197110-197112

sub53701-10080

main53701-10043iKP3#..DLX,HDX,S,SR,STD197201-197404

sub53701-10044

main53701-10070iKP31..ST,XL197201-197310

sub53701-10043

main53701-10071iKP30,31..HDX,SR,ST,XL197310-197404

sub53701-10072

main53701-10072iKP3#197404-197511

main53701-10073iKP3#197511-198201

sub53701-96400

sub90950-01060

main53701-10110iKP50197601-197802

main53701-96400iKP39198201-198808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-10071iKP3#,UP3#196904-197112

sub53702-10080

main53702-10072iKP3#197201-197404

sub53702-10073

main53702-10073iKP3#197404-197511

main53702-10074iKP3#,50197511-198201

sub53702-96400

main53702-10101iUP3#196904-197112

W/FUEL COMBUSTION HEATER

main53702-96400iKP39198201-198808

53725RETAINER, FRONT BUMPER STAY, RH

main53707-11010iKP36,37,38,39,UP36196904-198808

main53725-10010iKP30,31,50,UP30196904-197802

53726RETAINER, FRONT BUMPER STAY, LH

main53708-11010iKP36,37,38,39,UP36196904-198808

main53726-10010iKP30,31,50,UP30196904-197802

55101PANEL SUB-ASSY, DASH

main55101-10080iKP3#..4F196904-197112

main55101-10081iKP3#..4F197201-197310

main55101-10082iKP3#..4F197310-197511

main55101-10090iUP3#196904-197112

main55101-10110iUP3#196904-197112

W/FUEL COMBUSTION HEATER

main55101-10120iKP30,31..2FC196910-197112

main55101-10121iKP30..2FC197201-197310

main55101-10122iKP30..2FC197310-197511

sub55101-10123

main55101-10123iKP50..2FC197610-197802

main55101-10180iKP3#,50..MTM197511-198201

main55101-96400iKP39198201-198808

55251PLATE, HEATER AIR HOLE COVER

main55251-10020iUP3#..STD196904-197112

57133PROTECTOR, STRUT BAR BRACKET, RH

main57021-10010iKP3#,50,UP3#197103-198601

COLD SPEC

main57133-10010iKP3#,UP3#196904-197103

COLD SPEC

sub57133-10011

57134PROTECTOR, STRUT BAR BRACKET, LH

main57022-10010iKP3#,50,UP3#197103-198601

COLD SPEC

main57134-10010iKP3#,UP3#196904-197103

COLD SPEC

sub57134-10011

57161CROSSMEMBER, FRONT

main57104-10010iKP3#196904-197511

main57104-10011iKP3#,50197511-198808

main57104-10020iUP3#196904-197112

57243PROTECTOR, LOWER ARM, RH

main57243-10010iKP3#,50,UP3#197103-198601

COLD SPEC

57244PROTECTOR, LOWER ARM, LH

main57244-10010iKP3#,50,UP3#197103-198601

COLD SPEC

5711812010PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12010

9010506002

main90105-06002

9011908048

main90119-08048

9095001023

main90950-01023

9095001065

main90950-01065

9095006002

main90950-06002

9165140612

main91651-40612

9165140618

main91651-40618

9165140816

main91651-40816

25 parts on this diagram · 1 diagram in section
