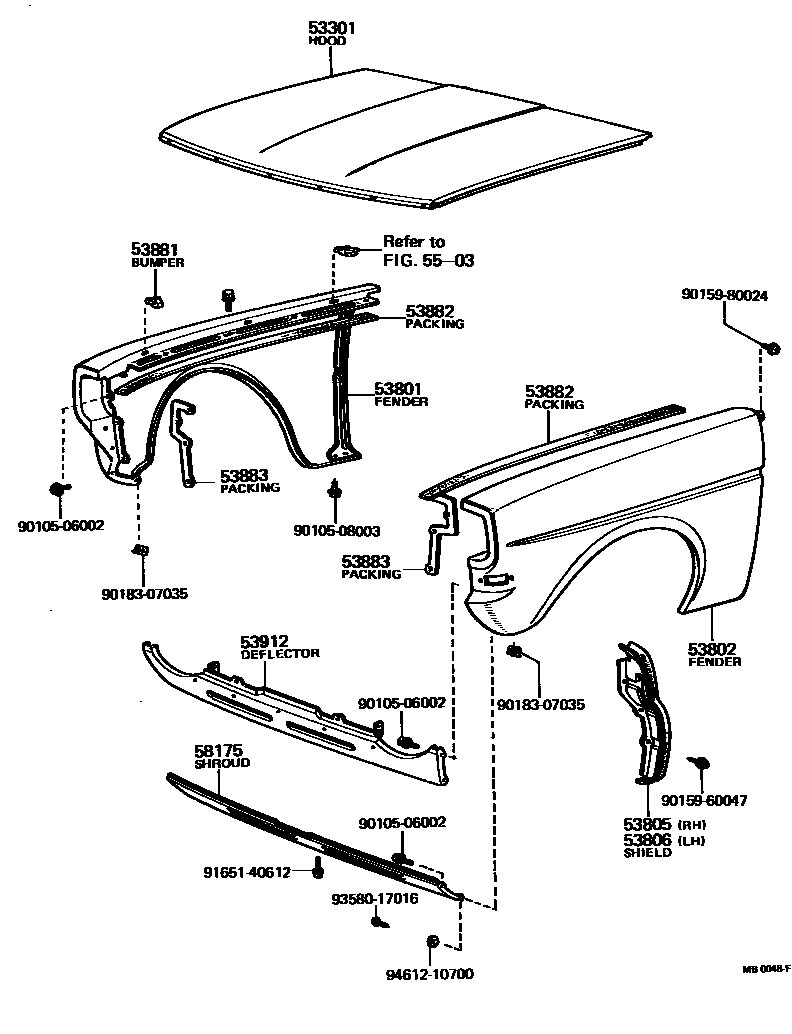

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-10110iKP3#,UP3#196904-197112

main53301-10112iKP39197201-198808

main53301-10113iKP3#..DLX,HDX,STD,XL197410-198504

sub53301-10112

main53301-10120iKP31..S,SR,ST197201-197410

main53301-10121iKP31..SR,ST197410-197511

53801FENDER SUB-ASSY, FRONT RH

main53801-10140iKP3#,UP3#196904-197010

sub53801-10141

main53801-10141iKP3#,UP3#197010-197112

main53801-10142iKP3#197201-197310

sub53801-10143

main53801-10143iKP3#..DLX,HDX,STD,XL197310-197410

sub53801-10904

main53801-10230iKP31..SR,ST197310-197410

sub53801-10906

main53801-10904iKP3#..DLX,HDX,STD,XL197410-198808

main53801-10906iKP31..SR,ST197410-197511

53802FENDER SUB-ASSY, FRONT LH

main53802-10190iKP3#,UP3#196904-197010

sub53802-10191

main53802-10191iKP3#,UP3#197010-197112

main53802-10192iKP3#197201-197310

sub53802-10193

main53802-10193iKP3#..DLX,HDX,STD,XL197310-197410

sub53802-10904

main53802-10241iKP31..SR,ST197310-197410

sub53802-10906

main53802-10904iKP3#,50197410-198808

main53802-10906iKP31..SR,ST197410-197511

53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH

main53805-10020iKP3#,50,UP3#196904-198808

53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH

main53806-10020iKP3#,50,UP3#196904-198808

53881BUMPER, FENDER TO HOOD

main53349-10030iKP3#,50,UP3#196904-198808

53882PACKING, FRONT FENDER MAIN

main53882-10020iKP3#,50,UP3#196904-198808

53883PACKING, FRONT FENDER, FRONT

main53883-10020iKP3#,UP3#196904-197112

main53883-10021iKP3#,50197201-198808

53912DEFLECTOR, FRONT BUMPER STONE

main53203-10030iKP3#,UP3#196904-197010

main53203-10031iKP3#,UP3#197010-197112

main53911-10010iKP3#,50197201-198808

5503

58175SHROUD, RADIATOR, LOWER

main53206-10010iKP3#,UP3#196904-197112

9010506002

main90105-06002

9010508003

main90105-08003

9015960047

main90159-60047

9015980024

main90159-80024

9018307035

main90183-07035

9165140612

main91651-40612

9358017016

main93580-17016

9461210700

main94612-10700

19 parts on this diagram · 2 diagrams in section
