RADIATOR GRILLE

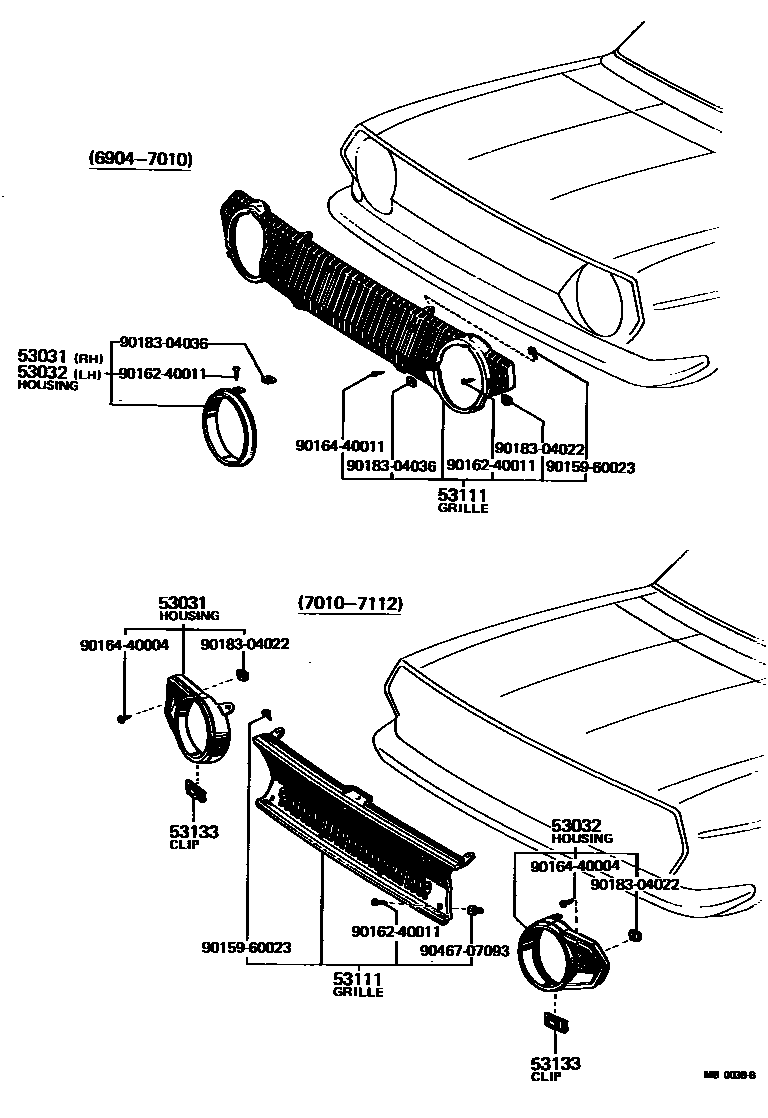

Parts diagram
53031HOUSING, HEADLAMP, RH
main53031-19015i196904-197010
sub53031-10060
sub90162-40011
sub90183-04036
main53031-19025i197201-197310
main53031-19035i197201-197310
main53031-19045i197201-197310
main53131-19065i197010-197112
main53131-19066i197310-197511
main53131-19067i197511-198808
main53131-19105i197103-197112
main53131-19155i197201-197310
main53131-19156i197310-197511
main53131-19195i197310-197511
main53131-19196i197601-197802
53032HOUSING, HEADLAMP, LH
main53031-19015i196904-197010
sub53031-10060
sub90162-40011
sub90183-04036
main53032-19015i197201-197310
main53032-19025i197201-197310
main53032-19035i197201-197310
main53132-19065i197010-197112
main53132-19066i197310-197511
main53132-19067i197511-198808
main53132-19105i197103-197112
main53132-19155i197201-197310
main53132-19156i197310-197511
main53132-19195i197310-197511
main53132-19196i197601-197802
53111GRILLE, RADIATOR
main53101-19085i196904-197010
sub53101-19105
main53101-19086i197010-197112
sub53101-10061
main53101-19087i197201-197310
sub53101-10062
main53101-19088i197310-197511
sub53101-10063
main53101-19095i196904-197010
sub53101-19105
main53101-19105i196904-197010
main53101-19106i197010-197112
sub53101-19086
main53101-19155i197010-197112
sub53101-10090
main53101-19185i197103-197112
main53101-19205i197201-197310
sub53101-19216
main53101-19206i197310-197511
sub53101-19216
main53101-19215i197201-197310
W/FOGLAMP
sub53101-19216
main53101-19216i197310-197511
W/FOGLAMP
main53101-19355i197511-198808
53133CLIP, HEADLAMP RIM
main53133-10031i197010-197112
9015960023
main90159-60023
9016240011
main90162-40011
9016440004
main90164-40004
9016440011
main90164-40011
9018304022
main90183-04022
9018304036
main90183-04036
9046707093
main90467-07093

11 parts on this diagram · 4 diagrams in section
