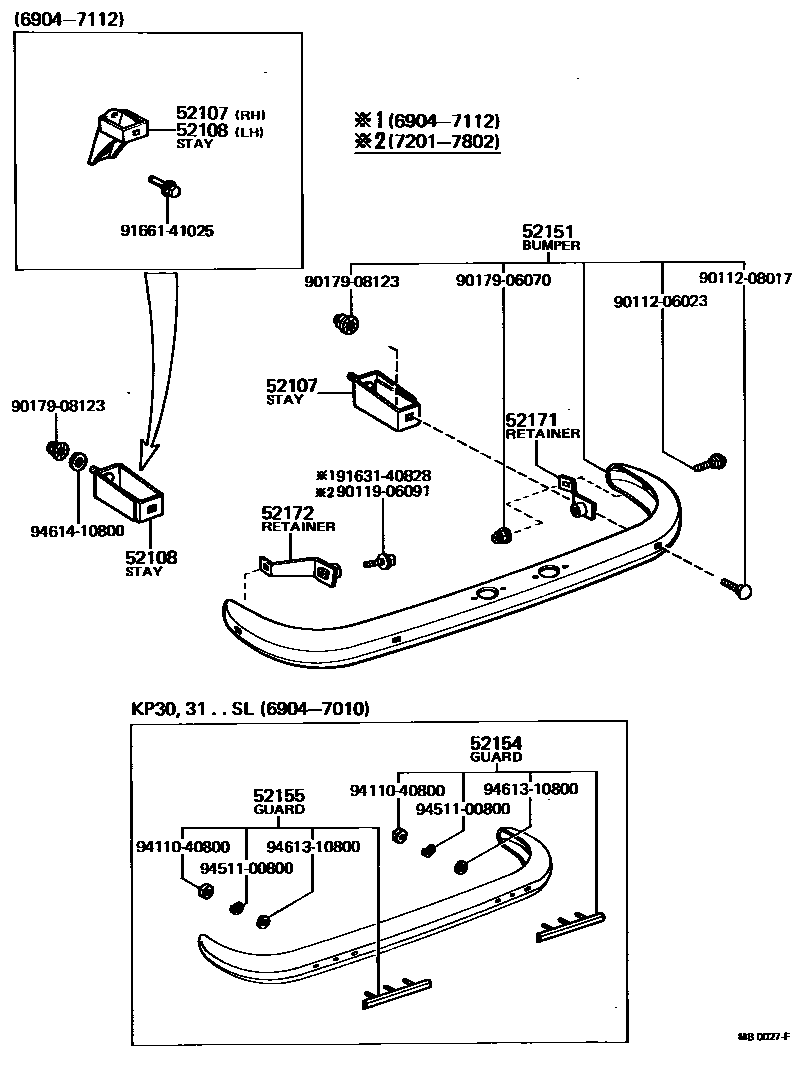

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52013-10010iKP30,31,UP30196904-197112

main52181-10031iKP30,31,50197201-197802

main52181-11030iKP36,37,UP36..V196904-197809

52108STAY SUB-ASSY, REAR BUMPER, LH

main52014-10010iKP30,31,UP30196904-197112

main52182-10040iKP30,31,50197201-197802

main52182-11030iKP36,37,UP36..V196904-197809

52151BUMPER ASSY, REAR

main52151-19085iKP30,UP30..DLX,STD¥22,400196904-197802

sub52151-10010

main52151-19095iKP30..SL¥22,400196904-197010

sub52151-10020

main52151-19105iKP36,37,UP36..V¥12,200196904-197809

sub52151-11030¥11,700

52154GUARD, BUMPER, REAR RH

main52103-19015iKP30..SL¥2,450196904-197010

sub52103-10030

52155GUARD, BUMPER, REAR LH

main52103-19015iKP30..SL¥2,450196904-197010

sub52103-10030

52171RETAINER, REAR BUMPER SIDE, RH

main52017-10010iKP30,31,UP30196904-197112

main52171-10011iKP30,31,50197201-197802

main52171-11020iKP36,37,UP36..V196904-197809

52172RETAINER, REAR BUMPER SIDE, LH

main52018-10010iKP30,31,UP30196904-197112

main52171-11020iKP36,37,UP36..V196904-197809

main52172-10011iKP30,31,50197201-197802

9011206023

main90112-06023¥330

9011208017

main90112-08017¥370

9011906091

main90119-06091¥160

9017906070

main90179-06070¥180

9017908123

main90179-08123¥160

9163140828

main91631-40828¥80

9166141025

main91661-41025¥180

9411040800

main94110-40800¥120

9451100800

main94511-00800¥100

9461310800

main94613-10800¥90

9461410800

main94614-10800¥120

18 parts on this diagram · 2 diagrams in section
