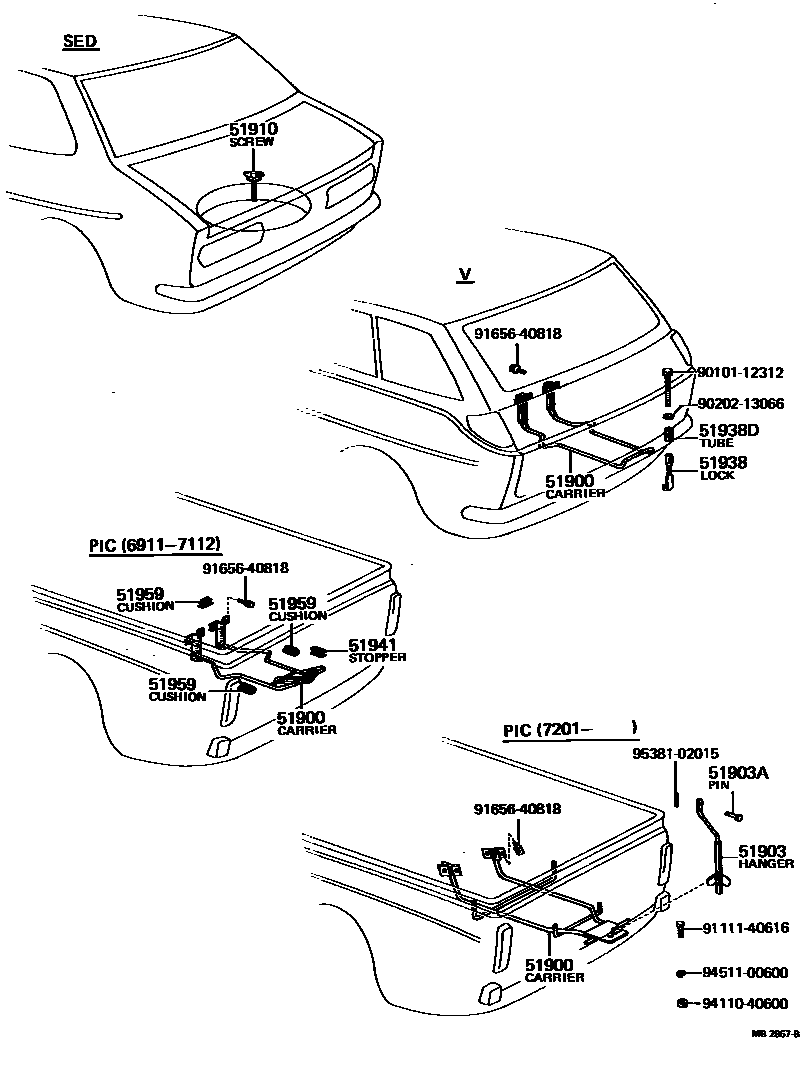

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-11010iKP36,UP36..V196904-196912

main51903-11011iKP36,37,UP36..V196912-197809

main51903-11020iKP36..PIC196911-197112

main51903-96400iKP36,37..PIC197201-197208

sub51903-96401

sub51901-11012

main51903-96401iKP36,37,38,39..PIC197208-198808

51903HANGER SUB-ASSY, SPARE WHEEL CARRIER HANDLE

main51901-11011iKP36,37..PIC197201-197208

main51901-11012iKP36,37,38,39..PIC197208-198808

51903APIN, W/HOLE(FOR SPARE WHEEL CARRIER HANDLE HANGER SETTING)

main90240-06140iKP36,37,38,39..PIC197201-198808

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-10030iKP30,31,50,UP30196904-197802

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iKP36,37,UP36..V196904-197809

sub51938-28020

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17080iKP36,37,UP36..V196906-197809

51941STOPPER, SPARE WHEEL CARRIER

main51939-11010iKP36..PIC196911-197112

51959CUSHION, SPARE WHEEL

main51959-11010iKP36..PIC196911-197112

9010112312

main90101-12312

9020213066

main90202-13066

9111140616

main91111-40616

9165640818

main91656-40818

9411040600

main94110-40600

9451100600

main94511-00600

9538102015

main95381-02015

15 parts on this diagram · 1 diagram in section
