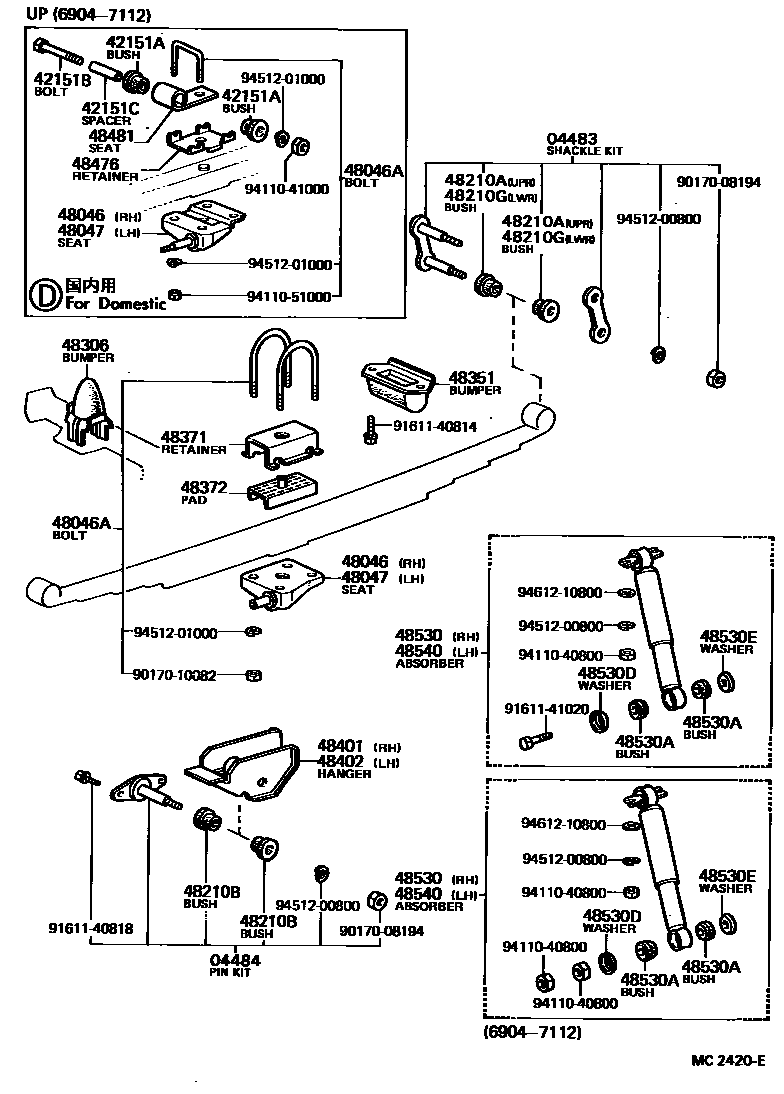

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04483SHACKLE KIT, REAR SPRING

main04483-10020iUP3#196904-197809

sub04483-10040

main04483-10030iKP50197601-197602

main04483-10050iKP50197602-197802

sub04483-10030

main04483-11030iKP36..PIC196911-197007

sub04483-11031

main04483-11031iKP36,37,38,39..PIC197007-198808

04484PIN KIT, REAR SPRING

main04484-10020iUP3#196904-197809

main04484-12010iKP36..PIC196911-197112

sub04484-12020

main04484-12020iKP36,37,38,39..PIC197201-198808

42151ABUSH (FOR REAR SPRING SEAT)

main90385-14034iUP3#196904-197112

42151BBOLT, HEXAGON (FOR REAR SPRING SEAT BOLT)

main90101-10149iUP3#196904-197112

*10-1.25PX95-32

42151CSPACER (FOR REAR SPRING SEAT)

main90560-10173iUP3#196904-197112

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-10020iKP30,31..DLX,HDX,SL,STD196904-197112

main48046-10022iKP30,31,50197201-197802

main48046-10030iUP3#196904-197112

main48046-10040iKP31..SR197103-197112

main48046-11020iKP36,37..V196904-197809

main48046-11030iKP36,37,38,39..PIC197107-198808

main48046-13011iKP36..PIC196911-197107

sub48046-11030

48046ABOLT, U(FOR REAR SPRING)

main90118-10051iKP3#,50..SED,V196904-197809

sub90117-10135

sub94110-51000

sub94512-01000

main90118-10052iUP30196904-197112

sub90117-10100

sub94110-51000

sub94512-01000

main90118-10053iUP36196904-197112

sub90117-10134

sub94110-51000

sub94512-01000

main90118-10073iKP36,37,38,39..PIC196911-198808

sub90117-10147

sub94110-51000

sub94512-01000

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-10020iKP30,31..DLX,HDX,SL,STD196904-197112

main48047-10022iKP30,31,50197201-197802

main48047-10030iUP3#196904-197112

main48047-10040iKP31..SR197103-197112

main48047-11020iKP36,37..V196904-197809

main48047-11030iKP36,37,38,39..PIC197107-198808

main48047-13011iKP36..PIC196911-197107

sub48047-11030

48210SPRING ASSY, REAR RH

main48210-10050iKP30,31..DLX,HDX,SL,STD196904-197112

main48210-10051iKP30,31..DLX,HDX,STD,XL197201-197304

sub48210-10052

sub48371-10020

main48210-10052iKP30,31..DLX,HDX,STD,XL197304-197310

main48210-10053iKP30,31..DLX,HDX,STD,XL197310-197511

main48210-10060iUP30196904-197112

sub48210-10050

main48210-10081iKP31..SR197103-197112

main48210-10082iKP31..S,SR,ST197201-197310

main48210-10083iKP31..SR,ST197310-197511

main48210-10120iKP50197601-197802

sub48210-10054

main48210-11050iKP36196904-196908

sub48210-11051

main48210-11051iKP36..V196908-197102

sub48210-11052

main48210-11052iKP36,37..V197103-197310

main48210-11053iKP36,37..V197310-197809

main48210-11060iUP36196904-197010

sub48210-11061

main48210-11062iUP36197010-197112

main48210-11070iKP36..PIC196911-197004

sub48210-11071

main48210-11071iKP36,37,38,39..PIC197004-198808

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-10001iKP50197602-197802

main90385-10015iUP3#196904-198808

48210BBUSH(FOR REAR SPRING PIN)

main90385-10014iKP36,37,38,39..PIC196911-198808

main90385-10055iUP3#196904-197809

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-10001iKP50197602-197802

main90385-10015iUP3#196904-198808

48306BUMPER SUB-ASSY, REAR SPRING

main48341-10030iUP3#196904-197112

main48341-10040iKP30,31,50196904-197802

main48341-11030iKP36..V196904-197112

sub48341-11031

main48341-11031iKP36,37..V197201-197809

main48341-13011iKP36,37,38,39..PIC196911-198808

48351BUMPER, DIFFERENTIAL CARRIER

main48351-10010iKP30,31,50196904-197802

48371RETAINER, REAR SPRING PAD

main48371-10010iKP30,31196904-197304

main48371-10020iKP30,31,50197201-197802

48372PAD, REAR SPRING

main48372-10010iKP30,31,50196904-197802

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main57701-11010iKP36,37,38,39..PIC196911-198808

main57711-10010iKP3#,50..SED,V196904-197809

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main57701-11010iKP36,37,38,39..PIC196911-198808

main57712-10010iKP3#,50..SED,V196904-197809

48476RETAINER, U BOLT

main48476-10010iUP3#196904-197112

48481SEAT, REAR SPRING, UPPER

main42151-10030iUP3#196904-197112

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19075iKP30,UP30196904-197010

sub48531-19076

main48531-19076iKP30,31,UP30..DLX,HDX,STD197010-197112

sub48531-19078

main48531-19077iKP30,31,50..DLX,HDX,STD,XL197201-197802

sub48531-19079

main48531-19085iKP36,UP36..V196904-197112

sub48531-19087

main48531-19086iKP36,37..V197201-197809

sub48531-19085

main48531-19095iKP36,37,38,39..PIC196911-198808

sub48531-19096

main48531-19195iKP31..SR197103-197112

sub48531-19197

main48531-19196iKP31..S,SR,ST197201-197511

sub48531-19077

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-12008iKP3#,UP3#..DLX,HDX,SL,STD196904-198808

main90385-16007iKP30,31,50197201-197802

main90385-16053iKP31..SR197103-197112

sub90385-16060

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03001iKP3#,UP3#..DLX,HDX,SL,STD196904-197401

main90948-03002iKP36,37,38,39197401-198808

main90948-03007iKP31..SR197103-197203

main90948-03012iKP30,31,50197203-197802

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iKP31..SR197103-197802

main90948-03013iKP36,37,38,39196904-198808

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19075iKP30,UP30196904-197010

sub48531-19076

main48531-19076iKP30,31,UP30..DLX,HDX,STD197010-197112

sub48531-19078

main48531-19077iKP30,31,50..DLX,HDX,STD,XL197201-197802

sub48531-19079

main48531-19085iKP36,UP36..V196904-197112

sub48531-19087

main48531-19086iKP36,37..V197201-197809

sub48531-19085

main48531-19095iKP36,37,38,39..PIC196911-198808

sub48531-19096

main48531-19195iKP31..SR197103-197112

sub48531-19197

main48531-19196iKP31..S,SR,ST197201-197511

sub48531-19077

9017008194

main90170-08194

9017010082

main90170-10082

9161140814

main91611-40814

9161140818

main91611-40818

9161141020

main91611-41020

9411040800

main94110-40800

9411041000

main94110-41000

9411051000

main94110-51000

9451200800

main94512-00800

9451201000

main94512-01000

9461210800

main94612-10800

36 parts on this diagram · 8 diagrams in section
