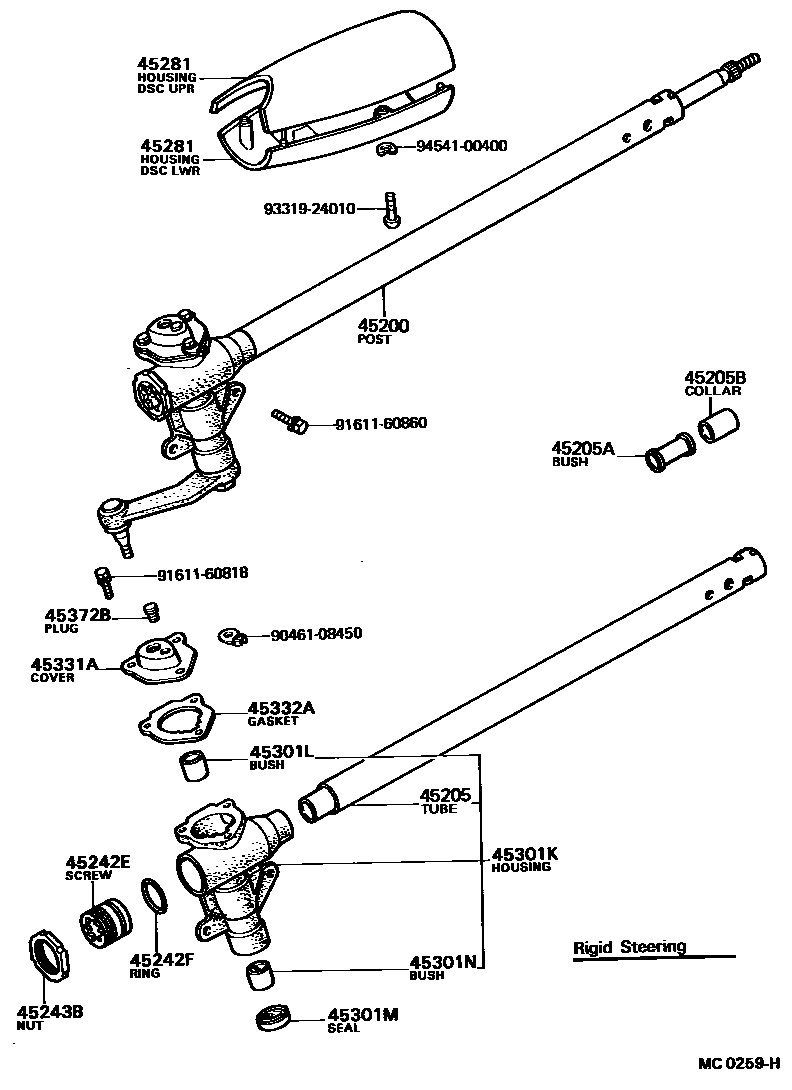

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0010 1

45200POST ASSY, STEERING

main45200-10140iKP3#,UP3#196904-197010

RIGID STEERING

main45200-10141iKP3#,UP3#197010-197112

RIGID STEERING

45205TUBE SUB-ASSY, STEERING COLUMN

main45250-10010iKP31..SR,ST,XL197201-197310

COLLAPSIBLE STEERING

sub45250-10011

main45250-10011iKP37,50197310-197907

COLLAPSIBLE STEERING

main45251-10070iKP3#,UP3#196904-197010

RIGID STEERING

main45251-10071iKP3#,UP3#197010-197112

RIGID STEERING

45205ABUSH(FOR STEERING COLUMN TUBE)

main90386-18026iKP3#,UP3#196904-197112

45205BCOLLAR(FOR STEERING COLUMN TUBE BUSH)

main90387-20006iKP3#,UP3#196904-197112

45242ESCREW, WORM BEARING ADJUSTING

main45242-12010iKP3#,UP3#196904-197112

main45242-12020iKP3#,50197201-198808

45242FRING, O(FOR WORM BEARING ADJUSTING SCREW)

main90301-37095iKP3#,UP3#196904-197112

main90301-51152iKP3#,50197201-198808

45243BNUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-12010iKP3#,UP3#196904-197112

main45243-22020iKP3#,50197201-198808

45281HOUSING, STEERING COLUMN

main45286-10010iKP3#,UP3#196904-197010

UPR

main45286-10011iKP3#,UP3#197010-197112

UPR

main45286-10012iKP3#197201-197511

UPR

main45286-10013iKP3#,50197511-198808

UPR

main45287-10010iKP3#,UP3#196904-197010

LWR

main45287-10011iKP3#,UP3#197010-197112

LWR

main45287-10012iKP3#197201-197511

LWR

main45287-10013iKP3#,50197511-198808

LWR

45301KHOUSING SUB-ASSY, STEERING GEAR

main45301-10080iKP3#,UP3#196904-197010

RIGID STEERING

main45301-10081iKP3#,UP3#197010-197112

RIGID STEERING

main45301-10082iKP36,37,38,39197201-198808

RIGID STEERING

main45301-12090iKP30,31197201-197907

COLLAPSIBLE STEERING

45301LBUSH OR BEARING(FOR SECTOR SHAFT NO.1)

main90999-71013iKP3#,UP3#196904-197112

main90999-73008iKP3#,50197201-198808

45301MSEAL, OIL(FOR SECTOR SHAFT)

main90310-25021iKP3#,UP3#196904-197112

main90310-28038iKP3#,50197201-198808

45301NBUSH OR BEARING(FOR SECTOR SHAFT NO.2)

main90999-71013iKP3#,UP3#196904-197112

main90999-73008iKP3#,50197201-198808

45331ACOVER, SECTOR SHAFT END

main45331-10020iKP3#,UP3#196904-197112

main45331-12010iKP3#,50197201-198808

45332AGASKET, SECTOR SHAFT END COVER

main45332-10011iKP3#,UP3#196904-197112

main45332-12010iKP3#,50197201-198808

T=0.2

45372BPLUG, STEERING GEAR HOUSING OIL

main45372-10010iKP3#,UP3#196904-197112

main45372-12010iKP3#,50197201-198808

9046108450

main90461-08450

9161160818

main91611-60818

9161160860

main91611-60860

9331924010

main93319-24010

9454100400

main94541-00400

20 parts on this diagram · 7 diagrams in section
