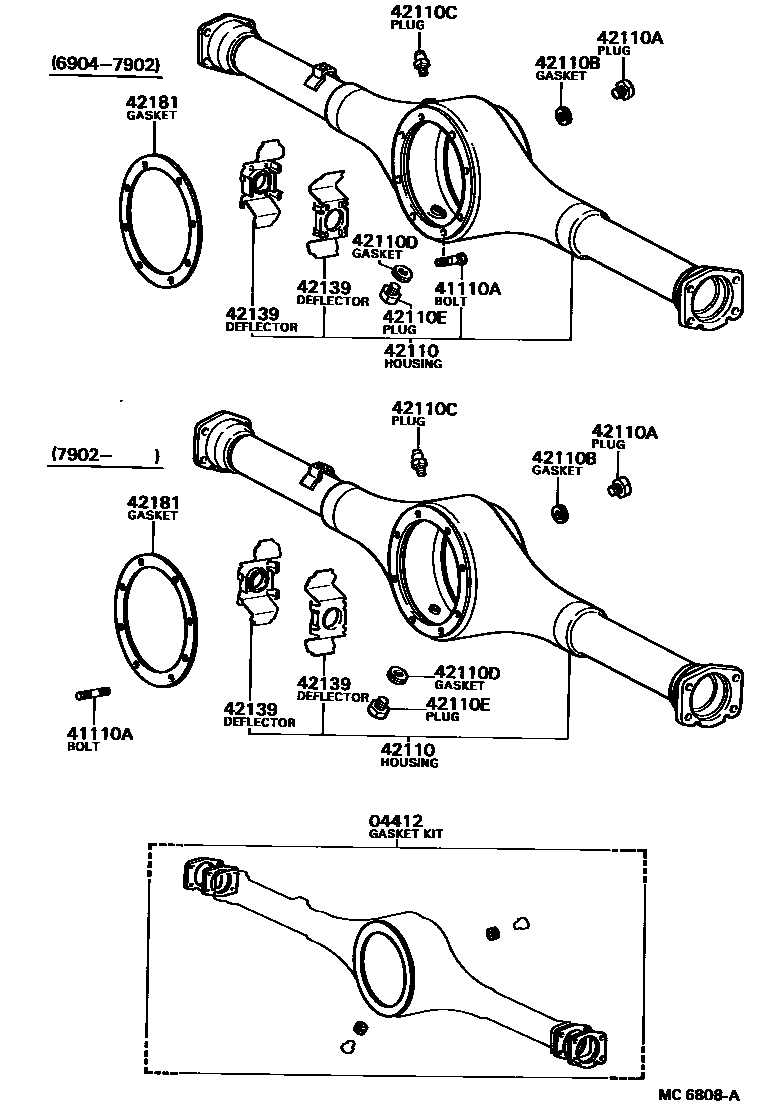

REAR AXLE HOUSING & DIFFERENTIAL
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=35:9,*AXC=U062
R=41:10,*AXC=U292
R=43:11,*AXC=U312
R=43:10,*AXC=U282
R=43:10,*AXC=U282
R=41:11,*AXC=U302
R=40:9,*AXC=U112
42110HOUSING ASSY, REAR AXLE
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
T=2.0
T=1.7
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
11 parts on this diagram · 4 diagrams in section
