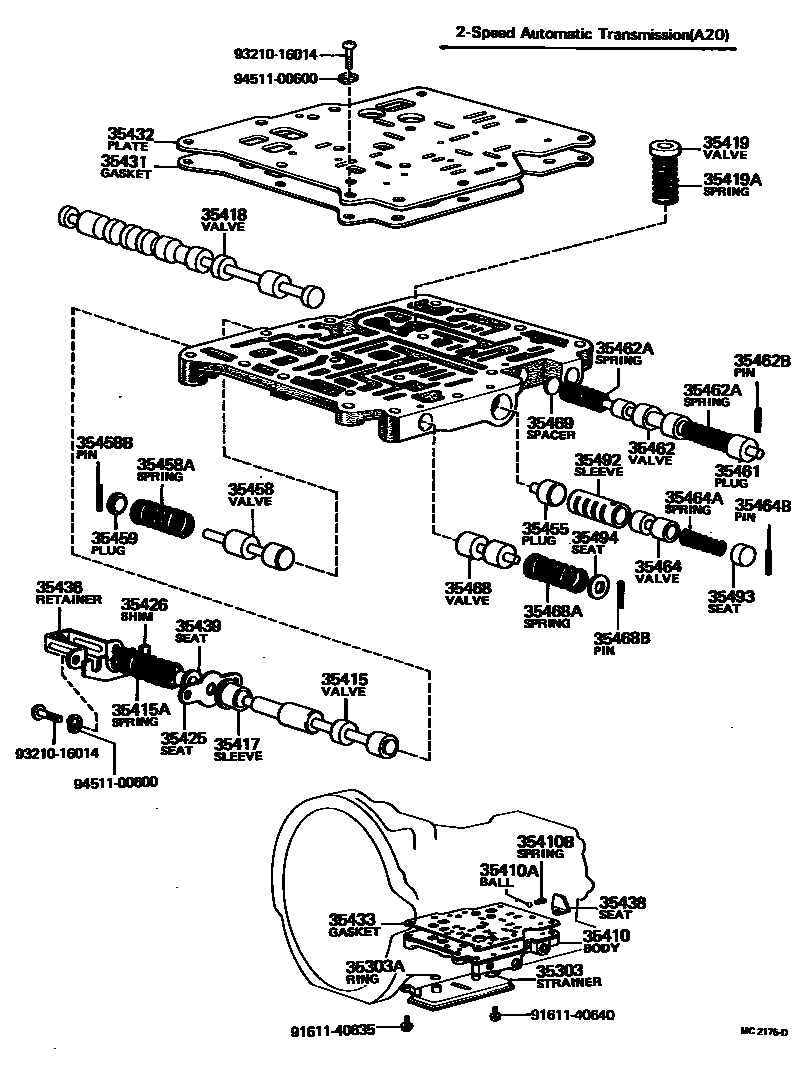

VALVE BODY & OIL STRAINER (ATM)
35303STRAINER SUB-ASSY, OIL
35303ARING, O (FOR OIL STRAINER)
35410ABALL (FOR REVERSE SHIFT RESTRICT)
35410BSPRING, COMPRESSION (FOR TRANSMISSION VALVE BODY)
WD=1.0,CW=12
35415VALVE, PRESSURE REGULATOR
35415ASPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
WD=1.6,CW=15
35417SLEEVE, PRESSURE REGULATOR VALVE
35418VALVE, MANUAL
sub35418-12011
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
WD=0.8,CW=8.5
35425SEAT, PRESSURE REGULATOR VALVE SLEEVE
T=1.2
35426SHIM, PRESSURE REGULATOR
T=1.0
35431GASKET,VALVE BODY
35433GASKET, VALVE BODY, NO.1
35436RETAINER, PRESSURE REGULATOR SPRING
35438SEAT, DETENT SPRING
35439SEAT, PRESSURE REGULATOR VALVE SPRING
35455PLUG, 1-2 SHIFT VALVE LOW
35458VALVE, THROTTLE RELAY
35458ASPRING, COMPRESSION (FOR THROTTLE RELAY VALVE)
WD=1.2,CW=8
WD=1.2,CW=8.0
35458BPIN, SLOTTED SPRING (FOR THROTTLE RELAY VALVE STOPPER)
35459PLUG, THROTTLE RELAY
35461PLUG, DOWN SHIFT
35462VALVE, THROTTLE
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
WD=1.2,CW=8
WD=1.2,CW=8.0
35462BPIN, SLOTTED SPRING (FOR THROTTLE VALVE SET)
L=17.8
35464VALVE, 1-2 SHIFT
35464ASPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
WD=1.2,CW=12
35464BPIN, SLOTTED SPRING (FOR SHIFT VALVE STOP)
35468VALVE, ORIFICE CONTROL
35468ASPRING, COMPRESSION (FOR ORIFICE CONTROL VALVE SPRING)
WD=1.2,CW=8
35468BPIN, SLOTTED SPRING (FOR ORIFICE CONTROL VALVE SET)
35469SPACER (FOR VALVE BODY DOWN SHIFT PLUG)
T=0.3
35492SLEEVE, SHIFT VALVE
35493SEAT, SHIFT VALVE SPRING
35494SEAT, ORIFICE CONTROL VALVE SPRING
9161140635
main91611-40635
9161140640
main91611-40640
9321016014
main93210-16014
9451100600
main94511-00600
42 parts on this diagram · 1 diagram in section
