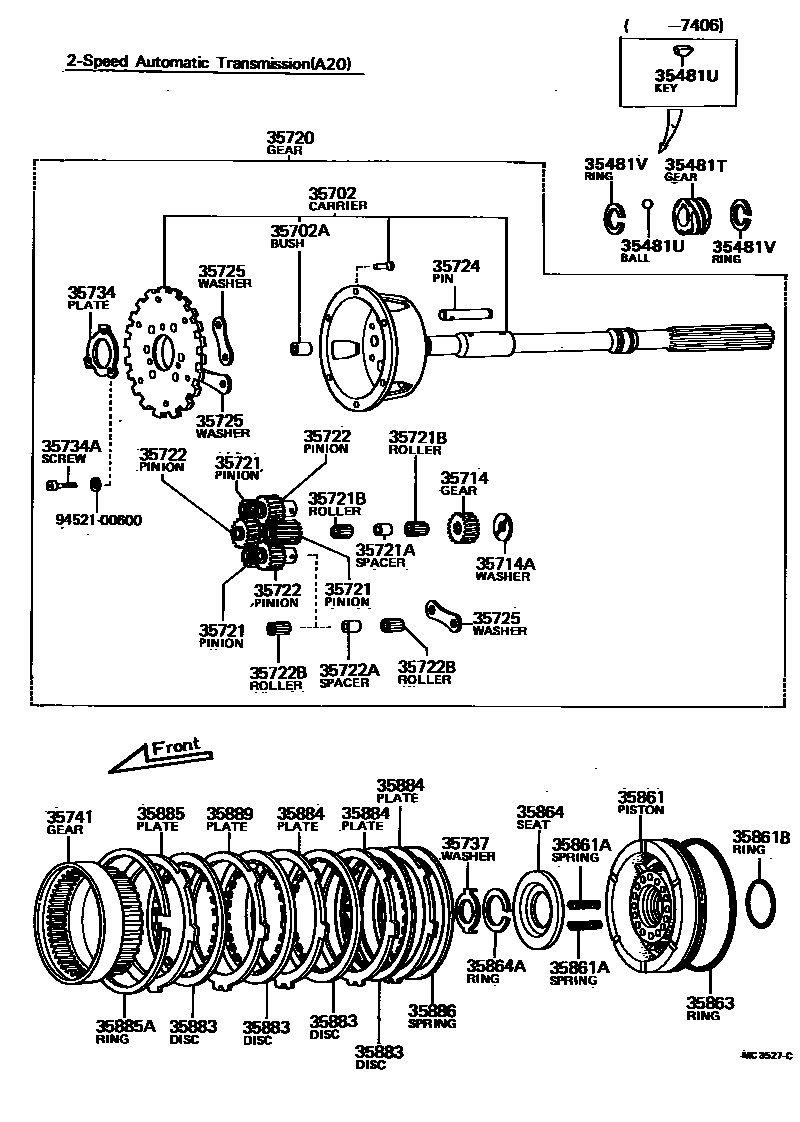

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35481TGEAR, SPEEDMETER DRIVE (ATM)
N=5
N=5
N=6
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
35702CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR
35702ABUSH, BIMETAL FORMED (FOR PLANETARY OUTPUT SHAFT)
35714GEAR, INPUT SUN
N=28
35714AWASHER (FOR INPUT SUN GEAR THRUST)
35720GEAR ASSY, FRONT PLANETARY
35721PINION, PLANETARY LONG
N=18
35721ASPACER (FOR PLANETARY LONG PINION)
35722PINION, PLANETARY SHORT
N=28
35722ASPACER (FOR PLANETARY SHORT PINION)
35724PIN, PLANETARY SHORT PINION
35725WASHER, PLANETARY PINION THRUST, NO.1
35734PLATE, PLANETARY PINION PIN LOCK
35734ASCREW (FOR PLANETARY PINION PIN LOCK PLATE)
35737WASHER, PLANETARY CARRIER THRUST
35741GEAR, REVERSE RING
N=79
35861PISTON, REVERSE
35861ASPRING, COMPRESSION (FOR REVERSE PISTON BACK)
35861BRING, O (FOR REVERSE PISTON INNER SEAL)
35863RING, REVERSE PISTON OIL SEAL, OUTER
35864SEAT, REVERSE PISTON RETURN SPRING
35864ARING, SHAFT SNAP (FOR OUTPUT)
35883DISC, REVERSE CLUTCH
35884PLATE, REVERSE CLUTCH, NO.2
35885PLATE, REVERSE CLUTCH PRESSURE
35885ARING, HOLE SNAP (FOR CLUTCH PLATE)
35886SPRING, REVERSE CLUTCH CUSHION
35889PLATE, REVERSE CLUTCH, NO.2
9452100600
main94521-00600
33 parts on this diagram · 1 diagram in section
