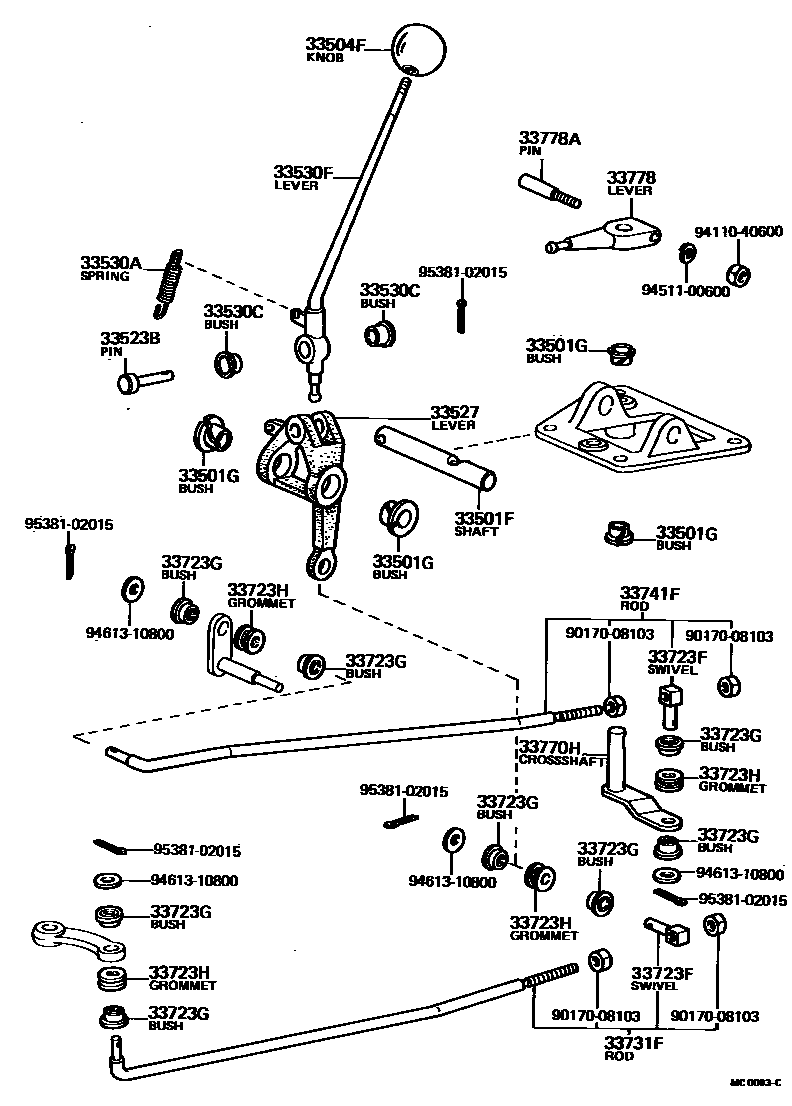

SHIFT LEVER & RETAINER
33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
T=2.0
T=2.3
CROSSSHAFT
CONTROL SHAFT
33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)
33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)
33530ASPRING, COMPRESSION (FOR SHIFT LEVER)
sub90506-18404
33530CBUSH (FOR SHIFT LEVER)
sub90386-08024
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33770HCROSS SHAFT ASSY (FOR FLOOR SHIFT)
33778LEVER, CROSS SHAFT, NO.1
33778APIN(FOR CROSS SHAFT LEVER, NO.1)
OD=6,P=1.0
9017008103
main90170-08103
9411040600
main94110-40600
9451100600
main94511-00600
9461310800
main94613-10800
9538102015
main95381-02015
21 parts on this diagram · 8 diagrams in section
