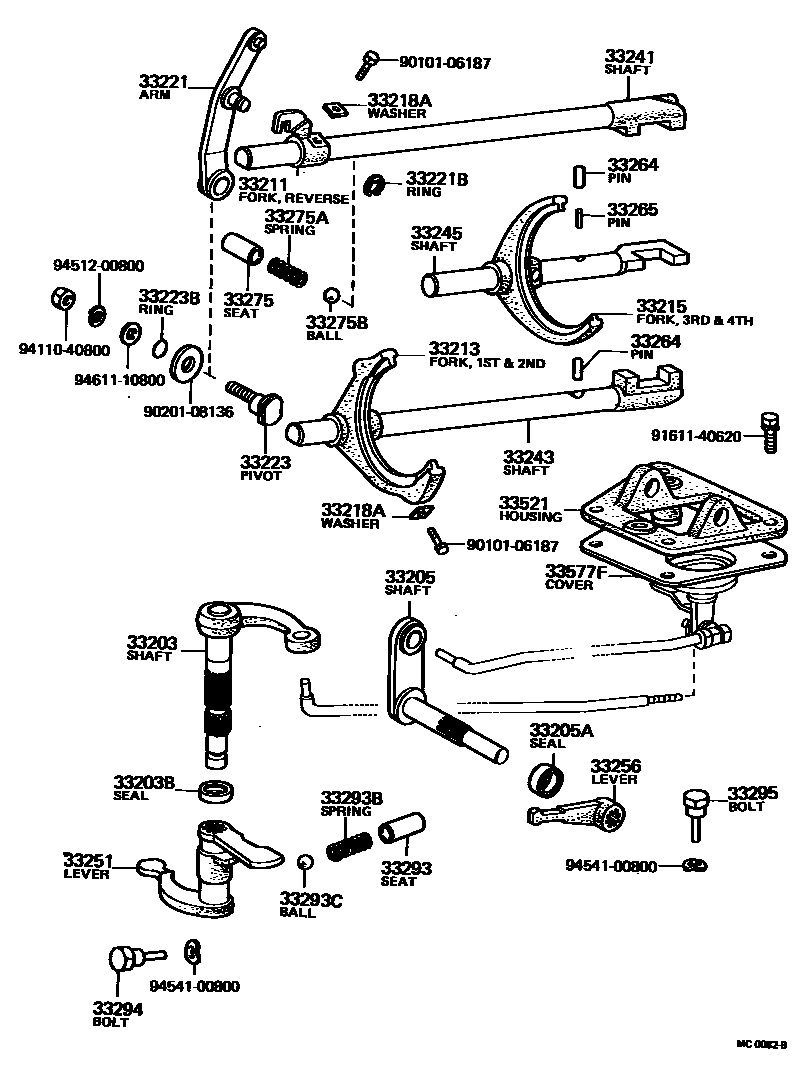

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33218AWASHER(FOR GEAR SHIFT FORK BOLT LOCK)
33223PIVOT, SHIFT ARM
33223BRING, O(FOR SHIFT ARM PIVOT)
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33251LEVER, SHIFT & SELECT
33256LEVER, SELECT INNER
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
sub90501-14638
sub90501-14237
sub90501-16031
33275BBALL, SHAFT DETENT
33293HOLDER, REVERSE RESTRICT BALL
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
WD=1.6,CW=8
33293CBALL (FOR REVERSE RESTRICT)
OD=8
33294BOLT, SHAFT RETAINING
33295BOLT, SHAFT RETAINING, NO.2
33521HOUSING, SHIFT LEVER
9010106187
main90101-06187
9020108136
main90201-08136
9161140620
main91611-40620
9411040800
main94110-40800
9451200800
main94512-00800
9454100800
main94541-00800
9461110800
main94611-10800
36 parts on this diagram · 5 diagrams in section
