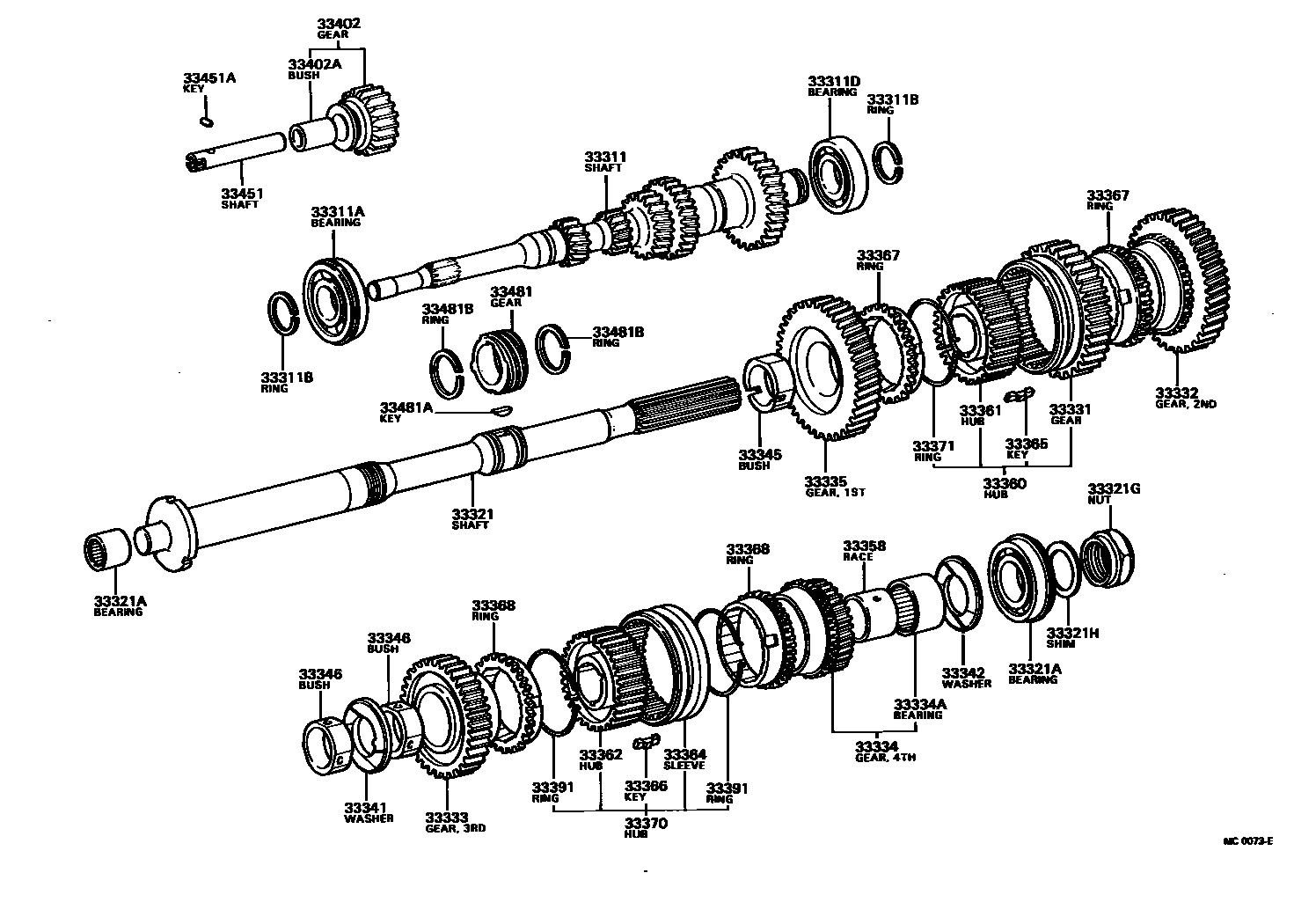

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
N=10,9,15,19,24
N=19
N=19
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
OD=25,ID=15
OD=26,ID=18
T=2.35-2.40
T=2.45-2.50
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
FR
CTR
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
ISO
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=0.3
33331GEAR, REVERSE
N=39
N=41
N=41
33332GEAR, 2ND
N=36
N=28
N=28
N=29
N=29
N=29
33333GEAR, 3RD
N=32
N=23
N=23
N=23
N=23
33334GEAR, 4TH
N=27
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
30BTM3723
33335GEAR, 1ST
N=42
N=35
N=35
N=36
N=36
N=36
33341WASHER, 2ND & 3RD GEAR THRUST
T=3.7
33342WASHER, GEAR THRUST
T=3.0
33345BUSH, 1ST GEAR
33346BUSH, 2ND GEAR
33358RACE, 4TH GEAR BEARING INNER
33360HUB ASSY, SYNCHRONIZER, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR
1ST GEAR
2ND GEAR
33368RING, SYNCHRONIZER, NO.2
33370HUB ASSY, SYNCHRONIZER, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
N=20
N=30
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6
N=5
N=5
N=6
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
37 parts on this diagram · 4 diagrams in section
