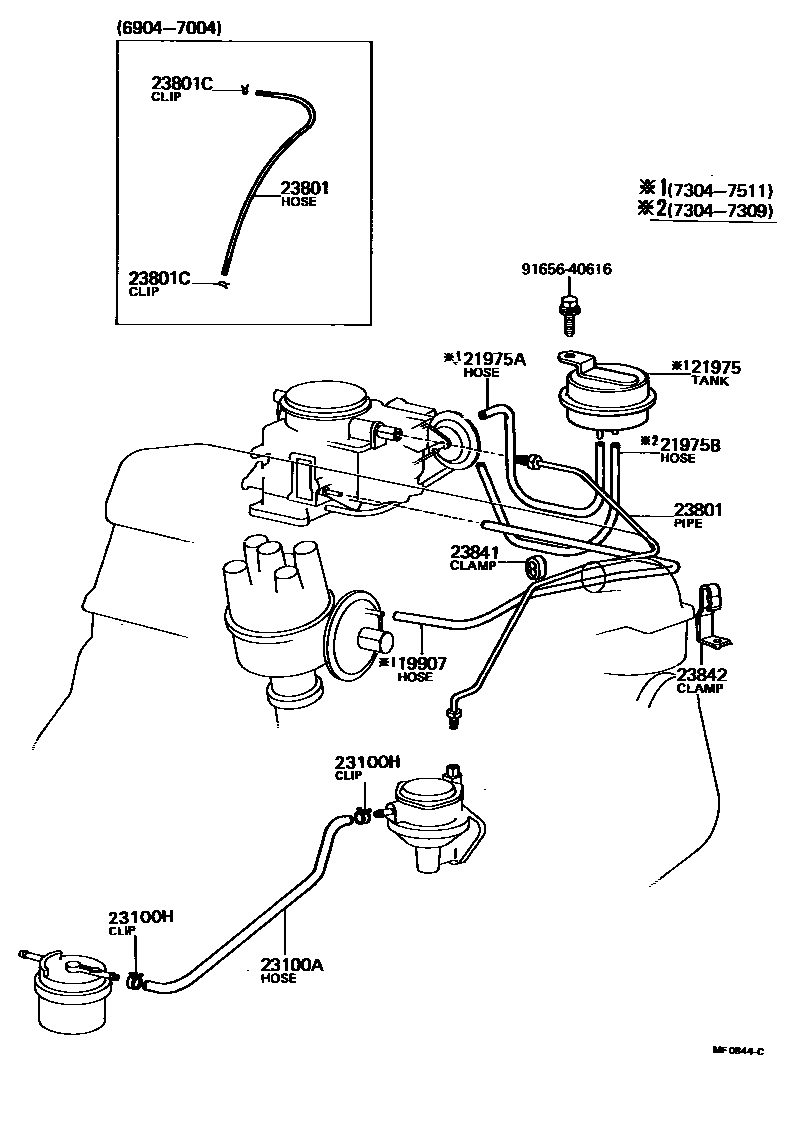

FUEL PUMP & PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19907HOSE, VACUUM, NO.1

main90445-07003i3KB#..KP31197304-197404

main90445-07004i2K,3K,3KB#..KP3#197304-197511

main90445-07021i2UC..UP3#196904-197112

21975TANK, THROTTLE CONTROL

main21975-24020i3K,3KB#..KP31,37197304-197310

main21975-24021i3K,3KB#..KP31,37197310-197511

21975AHOSE(CARBURETOR TO CONTROL TANK)

main90445-07916i3K,3KB#..KP31,37197304-197511

21975BHOSE(CONTROL TANK TO HEAT INSULATOR)

main90445-07916i3K,3KB#..KP31,37197304-197310

23100PUMP ASSY, FUEL

main23100-19025i2UC..UP3#196904-197004

sub23100-11010

main23100-19026i2UC..UP3#197004-197112

sub23100-11011

main23100-29025iKB,2K..KP3#196904-196912

sub23100-29026

main23100-29026i2K..KP3#196912-197004

sub23100-29027

main23100-29036i2K,3K,3KB#..KP3#197004-197208

sub23100-29315

main23100-29037i2K,3K,3KB#..KP3#197208-197404

sub23100-29038

sub91611-60832

main23100-29085i2K,3K,3KB#,3KHJ..KP3#197404-197804

sub23100-29086

main23100-29195i3KU..KP50197601-197802

sub23100-29196

main23100-29245i3KHJ,4KJ..KP3#197804-198210

sub23100-29246

main23100-29246i4KJ..KP39198210-198808

sub23100-29247

23100AHOSE, FUEL

main90445-11126i2UC..UP3#196904-197004

sub90445-11119

main90445-12069i3K#..KP37,50197705-197907

main90445-12983i2K,3K,3KB#,3KHJ,3KU..KP3#,50197309-197705

sub90445-12069

main90923-01137i2UC..UP3#197004-197112

sub95323-07028

main95323-07028i2K,3K,3KB#..KP3#197201-197208

sub90923-01157

main95332-06030i2K,3K,3KB#..KP3#197304-197309

sub95333-06030

main95332-06040i3KHJ,4KJ..KP3#197907-198701

*H,L=320

sub95333-06040

main95332-08030i2K,3K,3KB#..KP3#197310-197511

W/COOLER,*H,L=280

sub95333-08030

main95332-08030i2K,3K,3KB#..KP3#197208-197304

sub95333-08030

main95333-06032i4KJ..KP39198701-198702

sub95333-06040

main95333-06040i4KJ..KP39198702-198808

23100HCLIP(FOR FUEL HOSE)

main90467-10013iKB,2K..KP3#196904-197004

main90467-12140i2K,3K,3KB#..KP3#197304-197402

sub96132-30600

main90467-13138i2K,3K,3KB#..KP3#197209-197304

sub96132-30800

main96113-10150i2K,3K,3KB#..KP3#197208-197209

main96132-30600i2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50197402-198808

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-11020i2UC..UP3#197004-197112

main23801-13050i4KJ..KP39198201-198612

main23801-13120i4KJ..KP39198612-198808

main23801-24011i2K,3K,3KHJ,3KU..KP3#,50197004-197804

main23801-24022i3KB#..KP31197004-197511

main23801-24030i3KB#..KP31197010-197304

COLD SPEC

main23801-24060i3KHJ..KP3#197804-198201

main23811-11020i2UC..UP3#..STD196904-197004

main23811-11030i2UC..UP3#196904-197004

main90445-11022iKB..KP30196904-197004

main90445-11158i2K..KP3#196904-197004

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-10013i2UC..UP3#196904-197004

main96132-30600i3KHJ,4KJ..KP3#197804-198808

sub96132-51100

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-11020i2UC..UP3#196904-197112

main23841-22010iKB..KP30196904-196908

main23842-11010i2K,3K,3KB#..KP3#197004-197511

sub90464-00233

main23842-22010i2K..KP3#196904-197004

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-22010iKB,2K..KP3#196904-197004

main90461-08532i2K,3K,3KB#..KP3#197004-198612

main90461-08975i3KB#..KP31197304-197511

sub90461-08532

9165640616

main91656-40616

12 parts on this diagram · 8 diagrams in section
