V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main99321-00805i3KHJ..KP37197808-197808

L=805,12V 30A ALTERNATOR

sub99321-00810

main99321-00810i3KHJ..KP38198108-198201

L=810,W/COOLER

main99321-00810i3KHJ..KP3#197808-198108

L=810,12V 30A ALTERNATOR

main99321-00835i3KHJ..KP3#197808-198108

L=835,12V 40A ALTERNATOR

sub99321-00840

main99321-00850i4KJ..KP39198309-198808

L=850

main99321-00855i3KHJ,4KJ..KP3#198108-198309

L=855

main99521-10808i2K,3K,3KB#..KP3#..DLX,HDX,SR,STD197404-197808

L=808,12V 30A ALTERNATOR

sub99321-00805

main99521-10839i3K#..KP37,50..HDX,XL197710-197808

L=843,12V 40A ALTERNATOR

sub99321-00840

main99521-10843i2K,3K,3KB#..KP30,31..HDX,ST,XL197404-197710

L=843,12V 40A ALTERNATOR

sub99321-00840

main99522-10808iKB,2K,3K,3KB#..KP3#196904-197404

L=808,12V 30A ALTERNATOR

sub99322-00805

main99522-10848i2K,3K,3KB#..KP30,31..HDX,ST,XL197201-197404

L=848,12V 40A ALTERNATOR

sub99322-00845

17610BBELT, V(FOR AIR PUMP)

main99522-10942i3KU..KP50197601-197802

sub99322-00940

main99522-11028i3KU..KP50197601-197802

W/COOLER

sub99322-01025

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90099-82008iKP3#196904-197010

sub99522-10913

main99322-50870iKP39198201-198808

main99522-10976iKP3#..DLX,HDX,STD,XL197010-198201

sub99322-00975

main99522-11028iKP50197601-197802

sub99322-01025

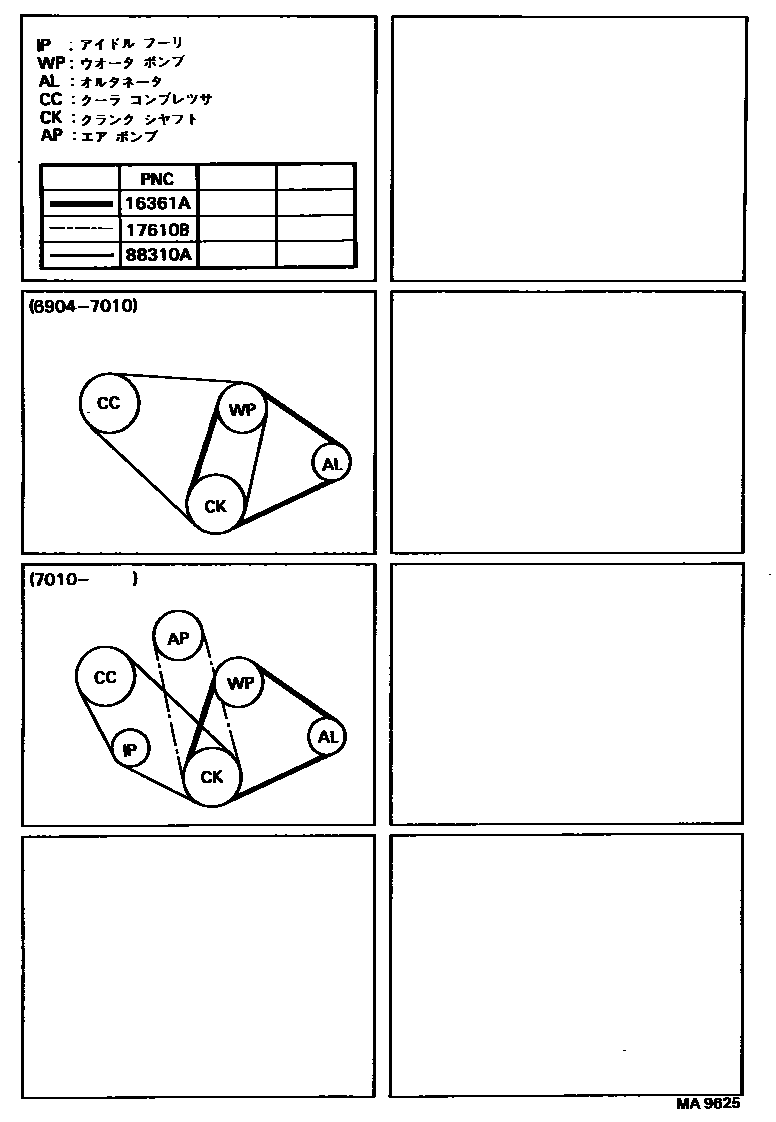

3 parts on this diagram · 1 diagram in section
