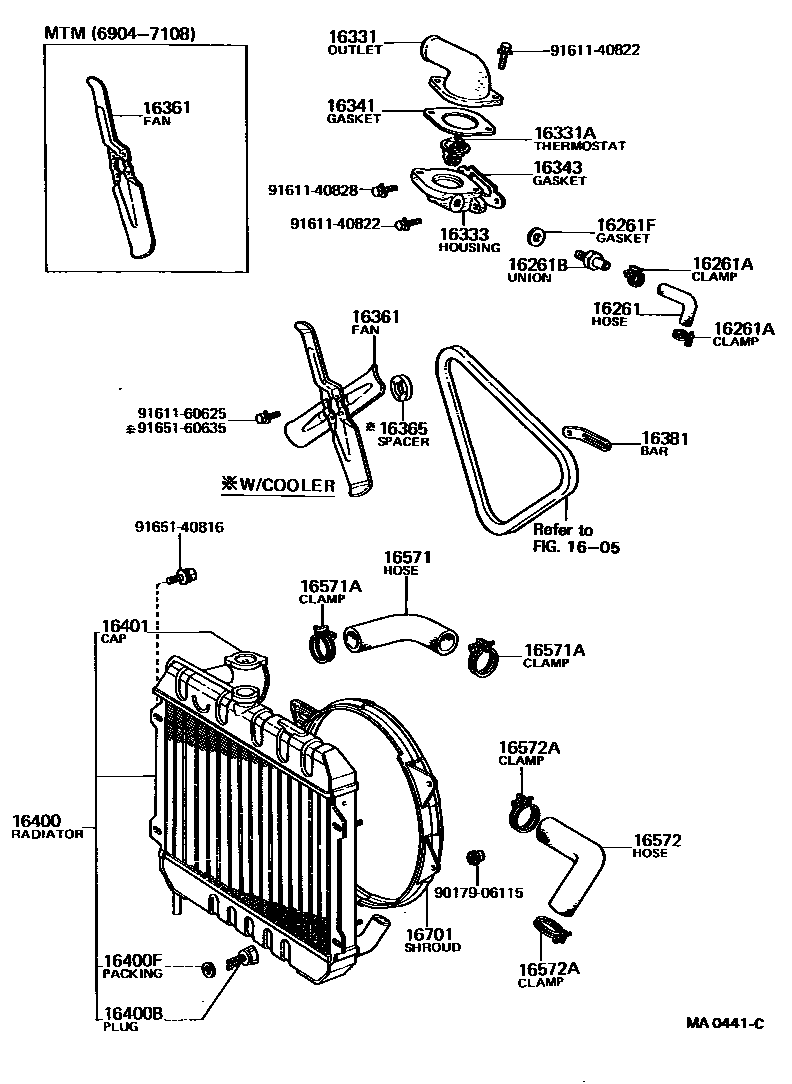

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1605

16261HOSE, WATER BY-PASS

main16261-22010i2K..KP30,36..STD196904-197105

W/O HEATER

sub16261-22011

main16261-22011i2K..KP30,36..STD197105-197503

W/O HEATER

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-22004i2K..KP3#..STD196904-197001

W/O HEATER

sub96111-10220

main96112-10220i2K..KP30,36..STD197001-197503

W/O HEATER

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-16006i3KU..KP50..2FC197610-197802

main90404-16106i2K..KP3#..STD196904-196909

W/O HEATER

sub90404-16162

main90404-16162i2K..KP30,36..STD196909-197503

W/O HEATER

main90404-16185i2K..KP3#196904-196908

W/HEATER

sub90404-16197

main90404-16197i3K#..KP3#,50..MTM197610-198201

main90404-16197i2K..KP3#196908-197610

W/HEATER

main90407-16039i2K,3K,3KB#..KP3#197005-197404

W/HEATER

16261FGASKET(FOR WATER BY-PASS HOSE)

main90301-13105i3KU..KP50..2FC197610-197802

main90301-13105i2K..KP3#196904-197404

W/HEATER

main90430-16003i3K#..KP3#,50..MTM197610-198201

main90430-16003i2K,3K#..KP3#,50197503-197610

W/HEATER

main90430-16044i2K,3K,3KB#..KP3#197404-197503

W/HEATER

main90430-16044i2K..KP30,36..STD196904-197503

W/O HEATER

16331OUTLET, WATER

main16301-24010iKB,2K,3K,3KB#..KP3#196904-197304

main16331-22030i2K,3K,3KB#,3KHJ,3KU..KP3#,50197304-197709

sub16331-22031

main16331-22031i3K#,4KJ..KP3#,50197709-198808

16331ATHERMOSTAT

main90916-03008iKB,2K..KP3#196904-197001

*WAX 82-95,KUZEH

sub90916-03021

main90916-03020i2K,3K,3KB#,3KHJ,3KU..KP3#,50196904-197911

*WAX 82-95,*(F)

main90916-03021i2K,3K,3KB#..KP3#197001-197405

*WAX 82-95,KUZEH

sub90916-03038

main90916-03034i3KHJ,4KJ..KP3#197911-198211

*WAX 82-95,*(F)

main90916-03036i3K#,4KJ..KP3#,50197511-198211

COLD SPEC,*WAX 88-100,*(F)

sub90916-03040

main90916-03037i3KHJ,4KJ..KP3#197911-198211

*WAX 82-95,KUZEH

sub90916-03083

main90916-03038i2K,3K,3KB#,3KHJ,3KU..KP3#,50197405-197911

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i4KJ..KP39198201-198211

COLD SPEC,*WAX 88-100,KUZEH

sub90916-03078

main90916-03054i4KJ..KP39198211-198808

sub90916-03083

main90916-03055i4KJ..KP39198211-198808

sub90916-03078

16333HOUSING, WATER OUTLET

main16333-13050i4KJ..KP39198201-198808

main16333-22020iKB,2K,3K,3KB#..KP3#196904-197511

sub16333-22021

main16333-24020i3KHJ..KP3#197511-198201

main16333-24040i3KU..KP50..MTM197601-197802

16341GASKET, WATER OUTLET

main16341-13010i3KHJ..KP37197803-197812

sub16341-13011

main16341-13011i3KHJ,4KJ..KP3#197812-198808

sub16341-13040

main16341-22010iKB,2K,3K,3KB#,3KHJ,3KU..KP3#,50196904-197803

sub16341-13010

16343GASKET, WATER OUTLET HOUSING

main16343-22010iKB,2K,3K,3KB#,3KHJ,3KU..KP3#,50196904-198201

sub16343-22011

main16343-22011i4KJ..KP39198201-198808

sub16343-13020

16361FAN

main16361-12010i2K,3K,3KB#..KP3#..4F197404-197511

4 BLADES

main16361-12020i2K..KP30..2FC197404-197511

4 BLADES

main16361-22010iKB,2K,3K,3KB#..KP3#..4F196904-197108

2 BLADES

main16361-22020i3K..KP31..2FC196909-197112

4 BLADES

sub16361-23020

sub91611-60620

main16361-23020i2K..KP30..2FC197108-197404

4 BLADES

main16361-24010i2K,3K,3KB#..KP3#..4F197108-197404

4 BLADES

main16361-24020i2K,3K..KP3#197201-197404

4 BLADES W/COOLER

main16361-24031i4KJ..KP39197511-198808

4 BLADES

main16361-24041i3KU..KP50197601-197802

4 BLADES

main16361-24070i3K#,4KJ..KP3#,50197607-198808

4 BLADES W/COOLER

main16361-31030i2K,3K,3KB#,3KHJ,3KU..KP3#,50197404-197607

5 BLADES W/COOLER

sub16361-31031

main88453-12010iKB,2K,3K,3KB#..KP3#196904-197112

W/COOLER

16365SPACER, FAN

main16365-24010i3K#..KP37,50197511-197607

W/COOLER

main88457-10010iKB,2K,3K,3KB#..KP3#196904-197112

W/COOLER

main88457-12011i2K,3K..KP3#197201-197404

W/COOLER

main88457-12012i2K,3K,3KB#..KP3#197404-197511

W/COOLER

16381BAR, FAN BELT ADJUSTING

main16381-22010iKB,2K,3K,3KB#..KP3#196904-197112

sub16381-24011

main16381-22010i2K,3K,3KB#..KP3#..DLX,HDX,S,SR,STD197201-197302

12V 30A ALTERNATOR

sub16381-24011

main16381-24010i2K,3K,3KB#..KP30,31..HDX,ST,XL197201-197302

12V 40A ALTERNATOR

sub16381-24011

main16381-24011i2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50197302-198808

16400RADIATOR ASSY

main16400-22010iKB,2K,3K,3KB#..KP3#..4F196904-197112

sub16400-24061

main16400-22012i2K,3K,3KB#..KP3#..4F197201-197302

sub16400-24061

main16400-22020i2K,3K..KP30,31..2FC196910-197112

sub16400-24110

main16400-22022i2K..KP30..2FC197201-197302

sub16400-24110

main16400-24060i2K,3K,3KB#..KP3#..4F197302-197310

sub16400-24061

main16400-24061i2K,3K,3KB#..KP3#..4F197310-197511

main16400-24062i3KU..KP50..MTM197601-197802

sub16400-24240

main16400-24070i2K..KP30..2FC197302-197310

sub16400-24110

main16400-24071i2K..KP30..2FC197310-197511

main16400-24180i3KHJ,4KJ..KP3#197511-198808

main16400-24240i3KU..KP50..2FC197610-197802

16400BPLUG, RADIATOR DRAIN COCK

main90099-18501iKB,2K,3K..KP3#196904-197012

main90099-18502i2K,3K,3KB#..KP3#197012-197112

sub90910-09052

main90910-09052i2K,3K,3KB#..KP3#197201-197511

main90910-09054i3K#,4KJ..KP3#,50197511-198808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main90099-06027i2K,3K,3KB#..KP3#197012-197112

main90099-06030i2K,3K,3KB#..KP3#197201-197511

main96710-01007i3K#..KP3#,50197511-198110

sub96711-19007

main96711-19007i3KHJ,4KJ..KP3#198110-198808

16401CAP SUB-ASSY, RADIATOR

main16401-36010i2K,3K,3KB#,3KHJ,3KU..KP3#,50197310-197808

sub16401-36011

main16401-36011i3KHJ,4KJ..KP3#197808-198808

main16401-40120iKB,2K,3K,3KB#..KP3#196904-197212

main16401-50010i2K,3K,3KB#..KP3#197212-197310

16571HOSE, RADIATOR, INLET

main90916-01013iKB,2K,3K,3KB#..KP3#196904-197511

main90916-01121i3K#..KP37,50197511-197709

sub90916-01158

main90916-01158i3K#,4KJ..KP3#,50197709-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-43005iKB,2K,3K,3KB#..KP3#196904-197404

sub96111-10430

main90467-37001i3KHJ,4KJ..KP3#198005-198808

sub90467-37003

main90467-37001i3K#..KP3#,50197709-198005

WATER PUMP SIDE

sub90467-37003

main96111-10430i3K#..KP3#,50197709-198005

RADIATOR SIDE

main96111-10430i2K,3K,3KB#,3KHJ,3KU..KP3#,50197404-197709

16572HOSE, RADIATOR, OUTLET

main90916-01049iKB,2K,3K,3KB#..KP3#196904-197112

main90916-01117i2K,3K,3KB#..KP3#197201-197302

main90916-01124i2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50197302-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-43005iKB,2K,3K,3KB#..KP3#196904-197302

sub96111-10430

main90460-47036i2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50197302-198808

16701SHROUD SUB-ASSY, FAN

main16701-12010i2K,3K,3KB#..KP3#197201-197404

sub16701-12030

main16701-12030i2K,3K,3KB#..KP3#197404-197511

main16711-12010i3K#,4KJ..KP3#,50197511-198808

main16711-12020i3K#,4KJ..KP3#,50197511-198808

W/COOLER

main88454-10010i2K,3K,3KB#..KP3#197201-197404

W/COOLER

main88454-10011i2K,3K,3KB#..KP3#197404-197511

W/COOLER

main88454-12010iKB,2K,3K,3KB#..KP3#196904-197112

W/COOLER

9017906115

main90179-06115

9161140822

main91611-40822

9161140828

main91611-40828

9161160625

main91611-60625

9165140816

main91651-40816

9165160635

main91651-60635

28 parts on this diagram · 5 diagrams in section
