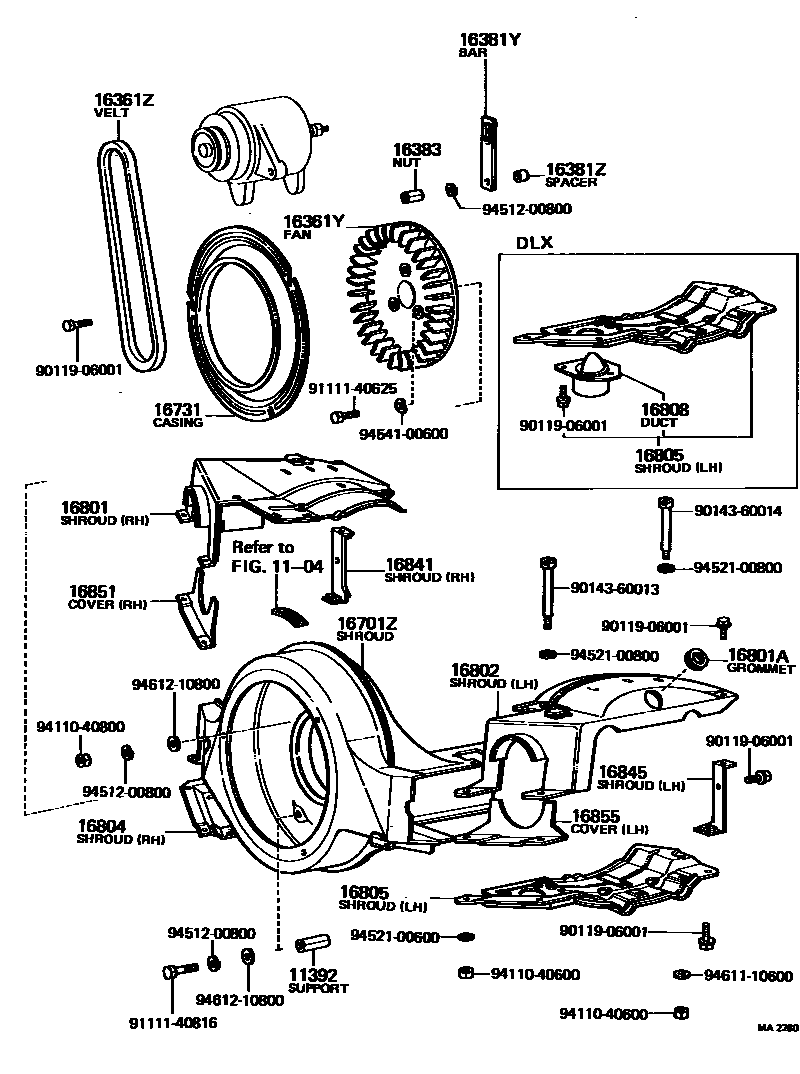

FAN CASING

1104

11392SUPPORT, FAN CASING

main11392-10011i2UC..UP3#196904-197112

16361YFAN

main16361-10012i2UC..UP3#196904-197112

16361ZBELT, V

main99511-10662i2UC..UP3#196904-197112

L=662

16381YBAR, FAN BELT ADJUSTING

main16381-10030i2UC..UP3#196904-197112

16381ZSPACER, FAN BELT ADJUSTING BAR

main90560-08219i2UC..UP3#196904-197112

16383NUT, BELT ADJUSTING BAR

main16383-10010i2UC..UP3#196904-197112

16701ZSHROUD, FAN

main16701-11020i2UC..UP30..STD196904-197112

main16701-11030i2UC..UP30..DLX196904-197112

16731CASING, FAN, INLET

main16731-11020i2UC..UP3#196904-197112

16801SHROUD SUB-ASSY, UPPER, RH

main16801-11060i2UC..UP3#196904-197010

sub16801-11061

main16801-11061i2UC..UP3#197010-197112

16801AGROMMET(FOR SHROUD)

main90480-36068i2UC..UP3#196904-197112

16802SHROUD SUB-ASSY, UPPER, LH

main16802-11050i2UC..UP3#196904-197112

16804SHROUD SUB-ASSY, LOWER, RH

main16804-11010i2UC..UP3#196904-197112

16805SHROUD SUB-ASSY, LOWER, LH

main16805-11020i2UC..UP30..STD196904-197112

main16805-11030i2UC..UP30..DLX196904-197112

16808DUCT SUB-ASSY, AIR INLET

main16808-11010i2UC..UP30..DLX196904-197112

16841SHROUD, REAR, RH

main16841-11020i2UC..UP3#196904-197112

16845SHROUD, REAR, LH

main16845-11020i2UC..UP3#196904-197112

16851COVER, SHROUD SIDE, RH

main16851-11010i2UC..UP3#196904-197112

16855COVER, SHROUD SIDE, LH

main16855-11010i2UC..UP3#196904-197112

9011906001

main90119-06001

9014360013

main90143-60013

9014360014

main90143-60014

9111140625

main91111-40625

9111140816

main91111-40816

9411040600

main94110-40600

9411040800

main94110-40800

9451200800

main94512-00800

9452100600

main94521-00600

9452100800

main94521-00800

9454100600

main94541-00600

9461110600

main94611-10600

9461210800

main94612-10800

32 parts on this diagram · 1 diagram in section
