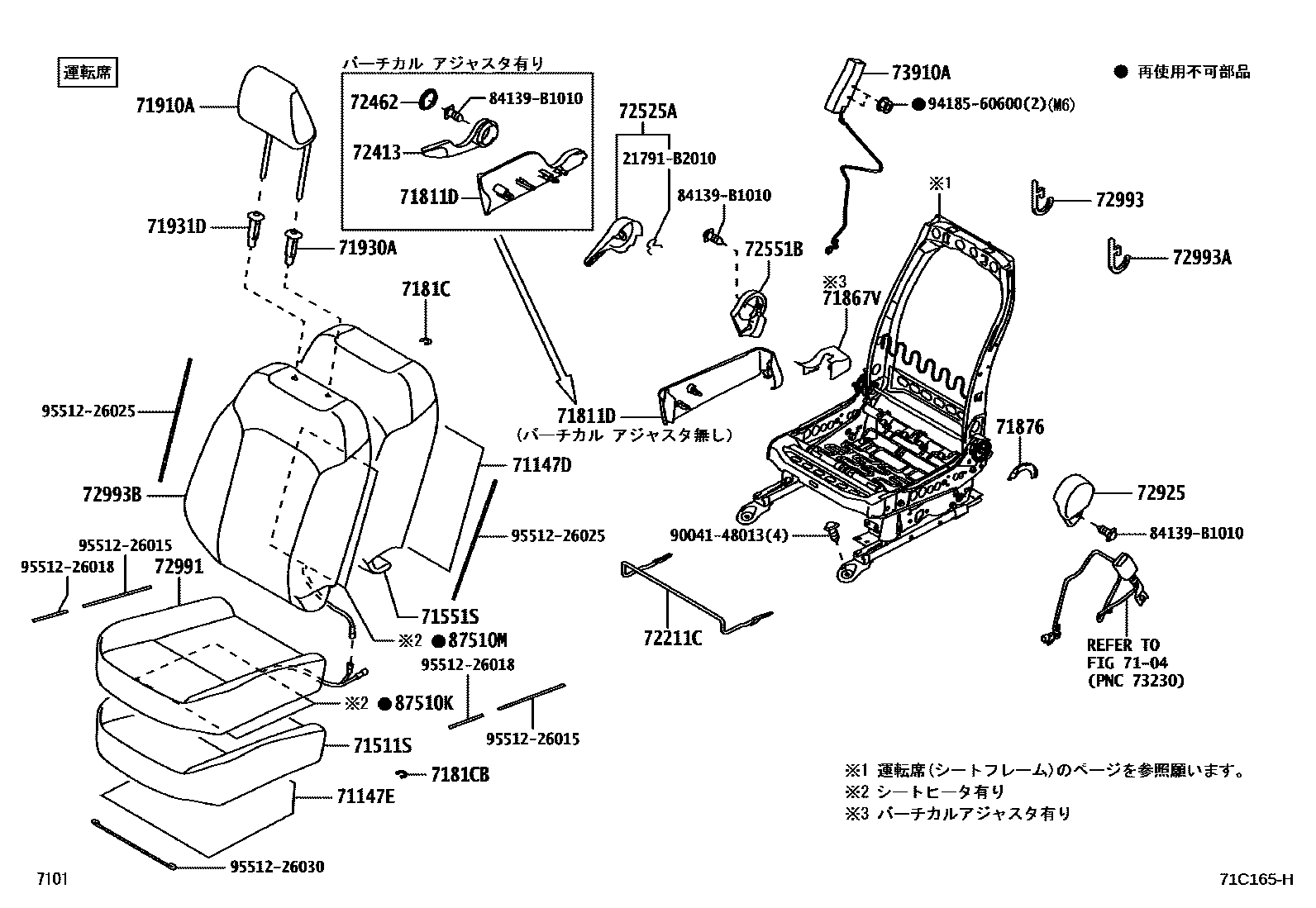

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT 0003 1DRIVER SEAT(FRAME) 0004 1DRIVER SEAT(FRAME) 0005 1PASSENGER SEAT 0006 1PASSENGER SEAT 0007 1PASSENGER SEAT(FRAME) 0008 1PASSENGER SEAT(FRAME)

7104

71147DSILENCER, SEAT SPRING, RH(FOR SEATBACK)

main71147-B2160iA200,210201910-202111

71147ESILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

main71147-B1020iA200,210201910-202111

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-B1250iA200,210201910-202006

main71501-B1251iA200,210202007-202111

main71501-B1270iA20#,210202111-202912

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-B1410iA200,210201910-202111

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-B1120-C0iA200,210..X201910-202111

BLACK,TRIM2#

main71811-B1130-C0iA200,210..G,Z201910-202111

BLACK,TRIM2#

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87201×10iA200,210201910-202111

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87201×11iA200,210201910-202111

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-B1010-C0iA200,210..G,Z201910-202111

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-B2060-C0iA200,210201910-202111

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-B1440-C2iA200,210201910-202111

BLACK,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-B2030-C0×2iA200,210201910-202111

71931DSUPPORT, FRONT SEAT HEADREST, RH

main71931-B2030-C0iA200,210201910-202111

BLACK,TRIM2#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-B1050iA20#,210202111-202912

main72211-B2150iA200,210201910-202111

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-B1050iA20#,210202111-202912

main72211-B2150iA200,210201910-202111

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-B1070-C0iA200,210..G,Z201910-202111

BLACK,TRIM2#

72462COVER, VERTICAL ADJUSTER RH

main72462-B2080-C0iA200,210..G,Z201910-202111

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-B2140-C0iA200,210201910-202111

BLACK,TRIM2#

72551BCOVER, RECLINING HINGE, RH

main72551-B2010-C0iA200,210201910-202111

BLACK,TRIM2#

72925COVER, FRONT SEAT CUSHION

main72991-B2100-C0iA200,210201910-202111

BLACK,TRIM2#

72991COVER, FRONT SEAT CUSHION, RH

main71071-B1770-C3iA200,210..G,Z201910-202101

BLACK,TRIM2#

main71071-B1771-C3iA200,210..G,Z202102-202111

BLACK,TRIM2#

sub71071-B1772

main71071-B1790-C2iA200,210..X201910-202101

BLACK,TRIM2#

main71071-B1791-C2iA200,210..X202102-202111

BLACK,TRIM2#

main71071-B1A20-C0iA20#,210..G,Z202111-202307

BLACK,TRIM2#

main71071-B1A21-C0iA20#,210..G,Z202308-202912

BLACK,TRIM2#

main71071-B1A40-C0iA201,210..X202111-202912

BLACK,TRIM2#

72993COVER, FRONT SEATBACK

main72993-B2010-C0iA20#,210202111-202912

BLACK,TRIM2#

72993ACOVER, FRONT SEATBACK

main72994-B2010-C0iA200,210201910-202111

BLACK,TRIM2#

72993BCOVER, FRONT SEATBACK, RH

main71073-B1F30-C2iA200,210..G,Z201910-202104

BLACK,TRIM2#

main71073-B1F31-C2iA200,210..G,Z202105-202111

BLACK,TRIM2#

main71073-B1F50-C2iA200,210..X201910-202111

BLACK,TRIM2#

main71073-B1J40-C0iA201,210..X202111-202912

BLACK,TRIM2#

main71073-B1J50-C0iA20#,210..G,Z202111-202912

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-B1061iA20#,210202111-202912

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-B2110iA200..G,X201910-202111

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-B2110iA210;A200..Z201910-202111

21791B2010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-B2010

84139B1010

main84139-B1010

9004148013

main90041-48013

9418560600

main94185-60600

9551226015

main95512-26015

9551226018

main95512-26018

9551226025

main95512-26025

9551226030

main95512-26030

35 parts on this diagram · 8 diagrams in section
