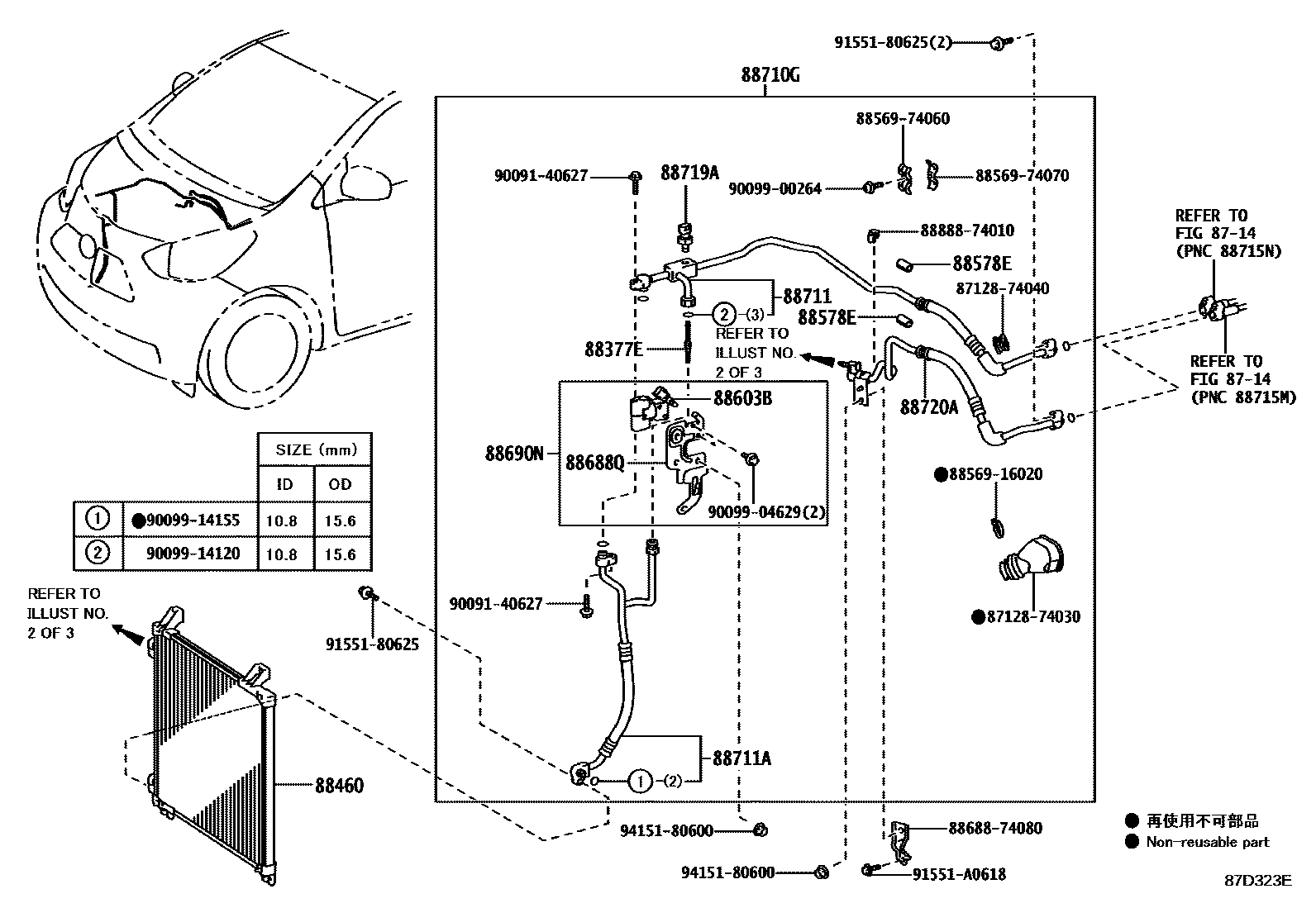

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

88377EFILTER, REFRIGERANT, NO.2

main88377-74040iKPJ10201209

88460CONDENSER ASSY, COOLER

main88460-74020iKPJ10201209-201212

88578EPACKING, COOLER PIPE, NO.2

main88578-74050iKPJ10201209

88603BVALVE SUB-ASSY, MAGNET

main88603-78010iKPJ10201209

88688QBRACKET (FOR MAGNET VALVE)

main88688-74110iKPJ10201209

88690NVALVE ASSY, MAGNET, NO.2

main88690-74030iKPJ10201209

sub88603-78010

sub88688-74110

sub90099-04629

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88690-74010iKPJ10201209

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-74080iKPJ10201209

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-74090iKPJ10201209

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iKPJ10201209

88720AHOSE & ACCESSORY, AIR CONDITIONER

main88720-74010iKPJ10201209

8712874030GROMMET, HEATER

main87128-74030

8712874040GROMMET, HEATER

main87128-74040

8856916020CLAMP (FOR COOLER RELAY)

main88569-16020

8856974060CLAMP (FOR COOLER RELAY)

main88569-74060

8856974070CLAMP (FOR COOLER RELAY)

main88569-74070

8868874080BRACKET, COOLER DIAPHRAGM

main88688-74080

8888874010BAND (FOR COOLER COMPRESSOR)

main88888-74010

9009140627

main90091-40627

9009900264

main90099-00264

9009904629

main90099-04629

9009914120

main90099-14120

9009914155

main90099-14155

9155180625

main91551-80625

91551A0618

main91551-A0618

9415180600

main94151-80600

27 parts on this diagram · 2 diagrams in section
