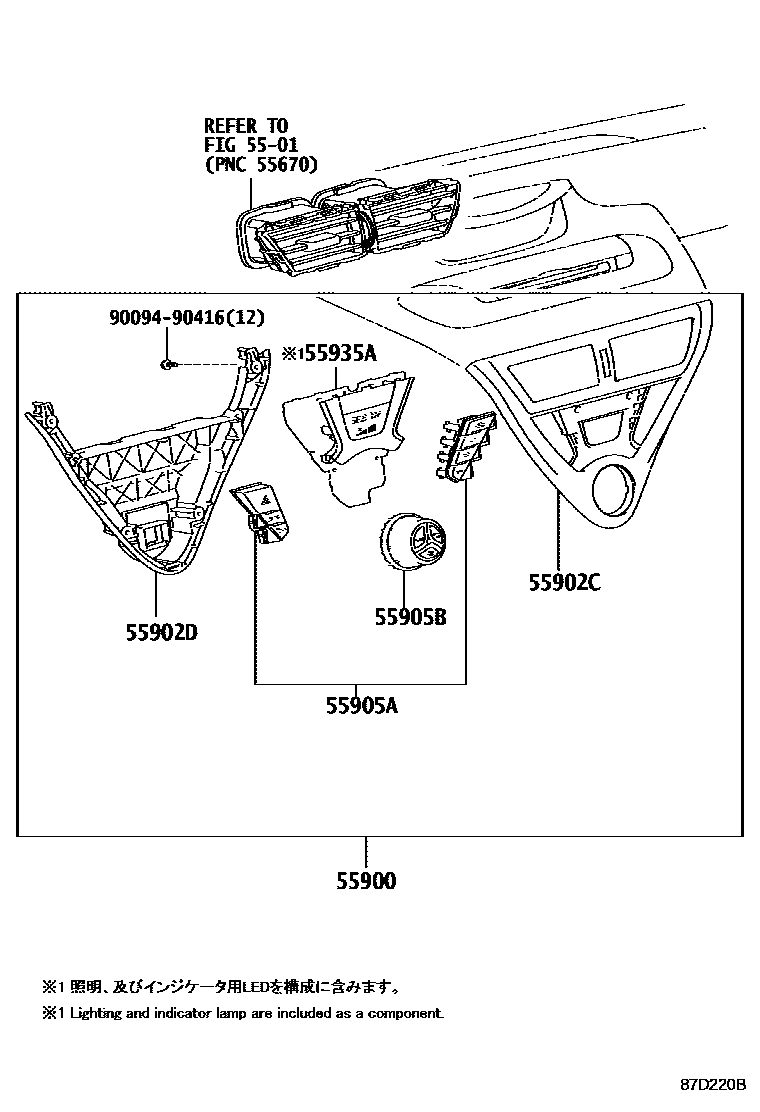

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������������� 0002 1������ 0003 1���

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-74060-A0iKPJ10201209-201212

WHITE,TRIM2#

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-74030-A1iKPJ10201209-201212

WHITE,TRIM2#

sub55902-74030

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-74050-A0iKPJ10201209-201212

WHITE,TRIM2#

55905AKNOB, HEATER CONTROL

main55905-74030iKPJ10201209

55905BKNOB, HEATER CONTROL, NO.2

main55905-74040iKPJ10201209

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-74020iKPJ10201209

9009490416

main90094-90416

8 parts on this diagram · 3 diagrams in section
