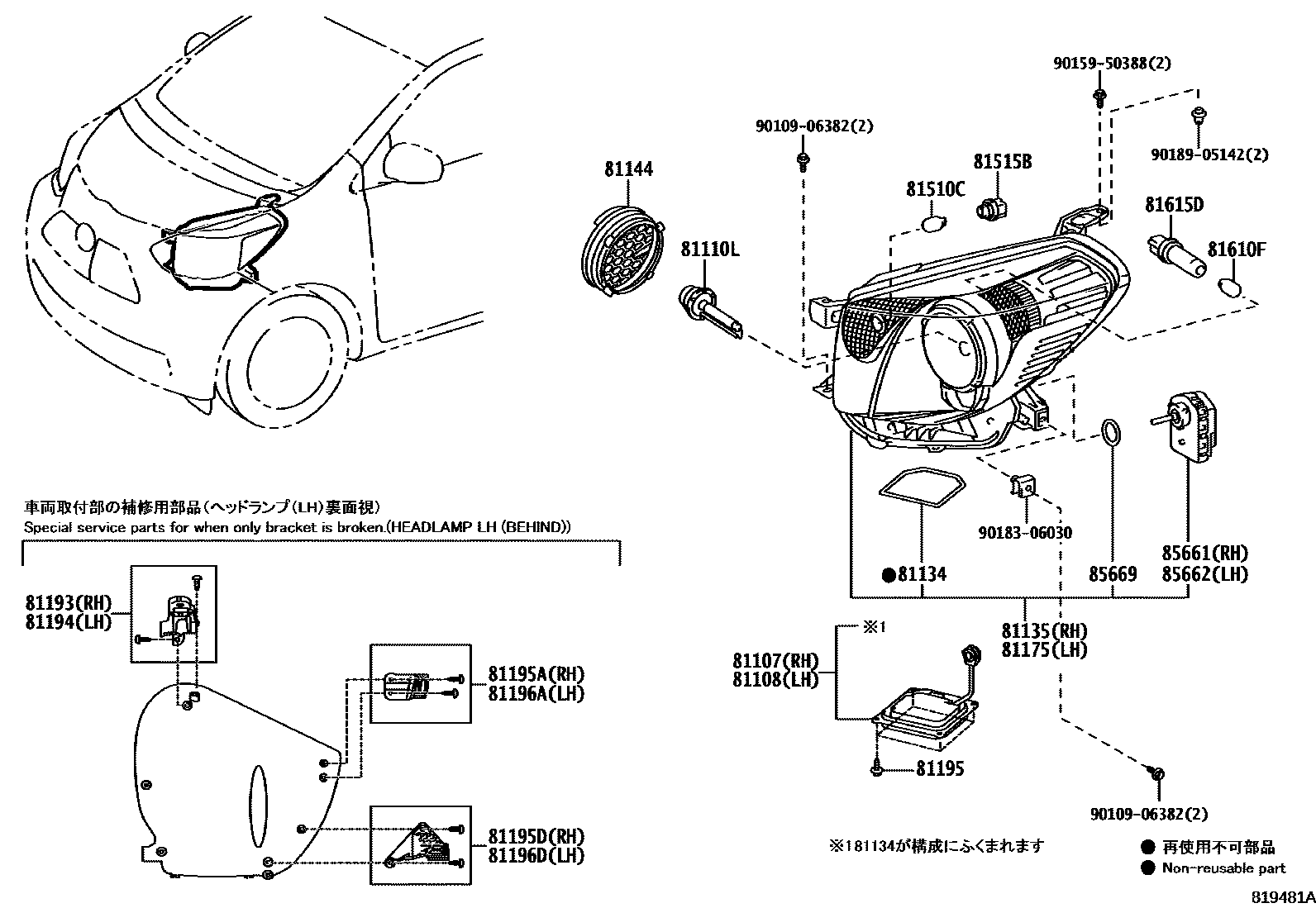

HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-74060iKPJ10201209

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-74060iKPJ10201209

81110LBULB, DISCHARGE HEADLAMP

main90981-20024×2iKPJ10201209

81134GASKET, HEADLAMP

main90075-68007iKPJ10201209

81135UNIT ASSY, HEADLAMP, RH

main81145-74100iKPJ10201209

81144COVER, HEADLAMP, NO.1

main81135-74010iKPJ10201209

main81175-74010iKPJ10201209

81175UNIT ASSY, HEADLAMP, LH

main81185-74100iKPJ10201209

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-74010iKPJ10201209

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-74010iKPJ10201209

81195SCREW, HEADLAMP

main90075-02056×8iKPJ10201209

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-74010iKPJ10201209

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-74030iKPJ10201209

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-74010iKPJ10201209

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-74030iKPJ10201209

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iKPJ10201209

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iKPJ10201209

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iKPJ10201209

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iKPJ10201209

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iKPJ10201209

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iKPJ10201209

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iKPJ10201209

9010906382

main90109-06382

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

25 parts on this diagram · 1 diagram in section
