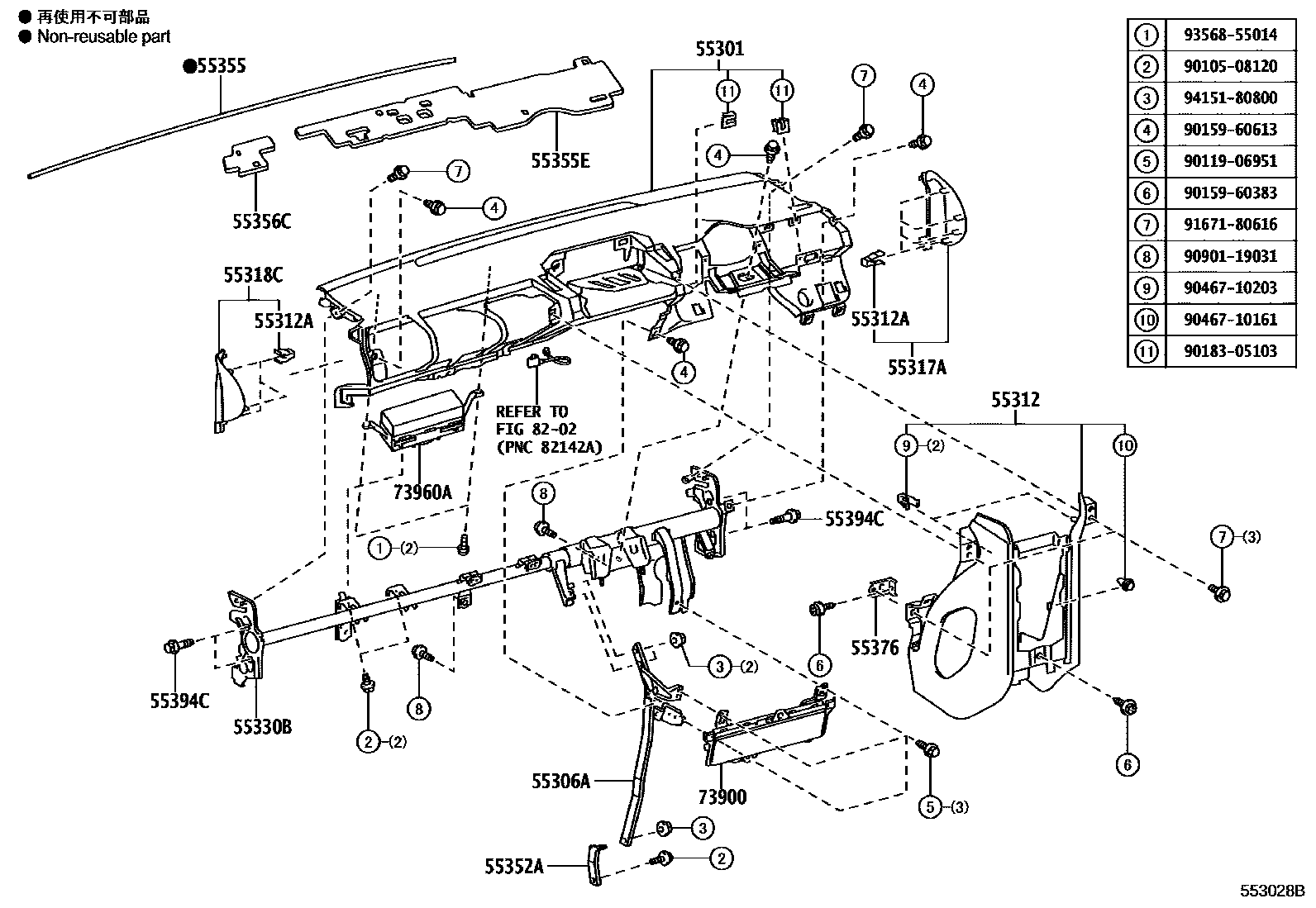

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55301-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-74060iKPJ10201209

55312PANEL, INSTRUMENT, LOWER

main55312-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

55312ACLIP, INSTRUMENT PANEL

main90467-10201iKPJ10201209

55317APANEL, INSTRUMENT SIDE, RH

main55317-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-74080iKPJ10201209

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-74010iKPJ10201209

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12090iKPJ10201209

55355ECUSHION, INSTRUMENT PANEL

main55355-74050iKPJ10201209

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-74030iKPJ10201209

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-74010iKPJ10201209

55394CBOLT, INSTRUMENT PANEL

main55394-74010iKPJ10201209

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-74010iKPJ10201209

sub73960-74011

8202

9010508120

main90105-08120

9011906951

main90119-06951

9015960383

main90159-60383

9015960613

main90159-60613

9018305103

main90183-05103

9046710161

main90467-10161

9046710203

main90467-10203

9090119031

main90901-19031

9167180616

main91671-80616

9356855014

main93568-55014

9415180800

main94151-80800

27 parts on this diagram · 4 diagrams in section
