FRONT FENDER APRON & DASH PANEL

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-74010iKPJ10201209-201212

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-74010iKPJ10201209

51205FCROSSMEMBER SUB-ASSY, FRAME, CENTER

main51205-74010iKPJ10201209

51440CCOVER ASSY, MOTOR SIDE UNDER, RH

main51440-74010iKPJ10201209-201212

51450BCOVER ASSY, MOTOR SIDE UNDER, LH

main51450-74010iKPJ10201209-201212

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-74010iKPJ10201209

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-74010iKPJ10201209

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-74010iKPJ10201209

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-74011iKPJ10201209

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-74010iKPJ10201209

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-74010iKPJ10201209

53210SUPPORT ASSY, RADIATOR

main53210-74011iKPJ10201209

53215BSUPPORT, HOOD LOCK

main53215-74010iKPJ10201209

53245BRACKET, HEADLAMP, RH

main53245-74010iKPJ10201209

53246BRACKET, HEADLAMP, LH

main53245-74010iKPJ10201209

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-74010iKPJ10201209

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-74010iKPJ10201209

53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER

main53283-30010iKPJ10201209

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-74011iKPJ10201209

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-74011iKPJ10201209

53292ASEAL, RADIATOR SUPPORT, UPPER

main53155-74010iKPJ10201209

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-74010iKPJ10201209-201212

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-74010iKPJ10201209-201212

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-74010iKPJ10201209

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-74010iKPJ10201209

53717APLATE, FENDER APRON

main53717-74010iKPJ10201209

53717DGUSSET, FENDER APRON, RH

main53743-74010iKPJ10201209

53718PLATE, FENDER APRON, LH

main53718-74010iKPJ10201209

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-74010iKPJ10201209

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-74010iKPJ10201209

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53815-74010iKPJ10201209

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53816-74010iKPJ10201209

53813CEXTENSION, FRONT FENDER, RH

main53707-74020iKPJ10201209

53814CEXTENSION, FRONT FENDER, LH

main53708-74020iKPJ10201209

55101PANEL SUB-ASSY, DASH

main55101-74902iKPJ10201209-201212

55137ABRACE, DASH TO FRAME, RH

main55137-74011iKPJ10201209

55138ABRACE, DASH TO FRAME, LH

main55138-74010iKPJ10201209

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-74010iKPJ10201209

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-74010iKPJ10201209

55210INSULATOR ASSY, DASH PANEL

main55210-74041-B0iKPJ10201209-201212

GRAY,TRIM2#

55210ACLIP

main90467-10216iKPJ10201209

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-74022iKPJ10201209

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-74020iKPJ10201209

55223AINSULATOR, DASH PANEL, OUTER

main55223-74010iKPJ10201209

55226ACLIP

main90467-06188iKPJ10201209

55787GINSULATOR, COWL TOP PANEL, NO.1

main55787-74020iKPJ10201209

5701

57155AREINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH

main57155-74010iKPJ10201209

57156AREINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-74010iKPJ10201209

57161CROSSMEMBER, FRONT

main57103-74011iKPJ10201209-201212

9010906328

main90109-06328

9010906380

main90109-06380

9011506166

main90115-06166

9011910866

main90119-10866

9011910964

main90119-10964

9011912406

main90119-12406

9046709227

main90467-09227

9054115038

main90541-15038

9090105005

main90901-05005

9151580818

main91515-80818

9167180816

main91671-80816

91671A0816

main91671-A0816

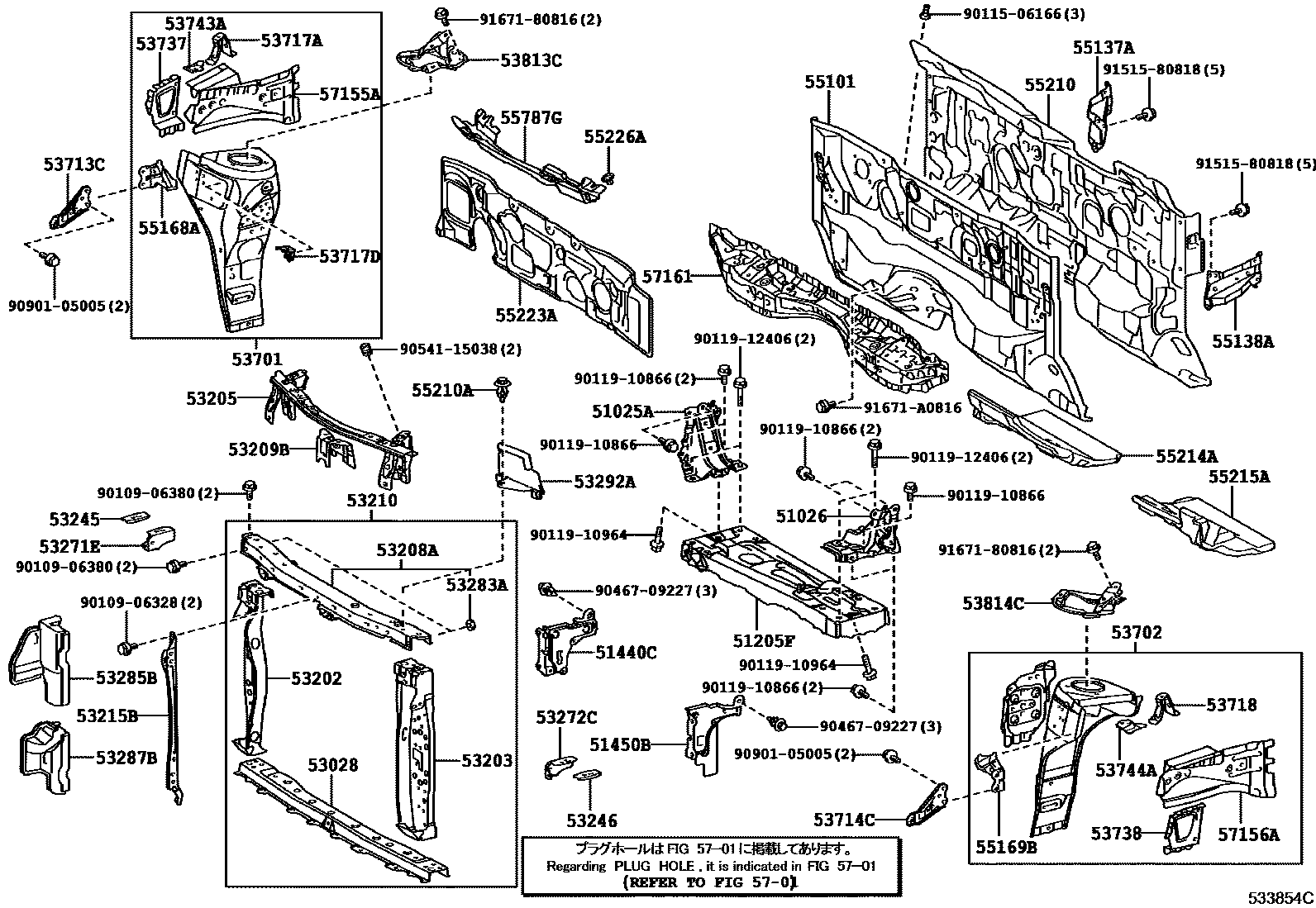

62 parts on this diagram · 1 diagram in section
