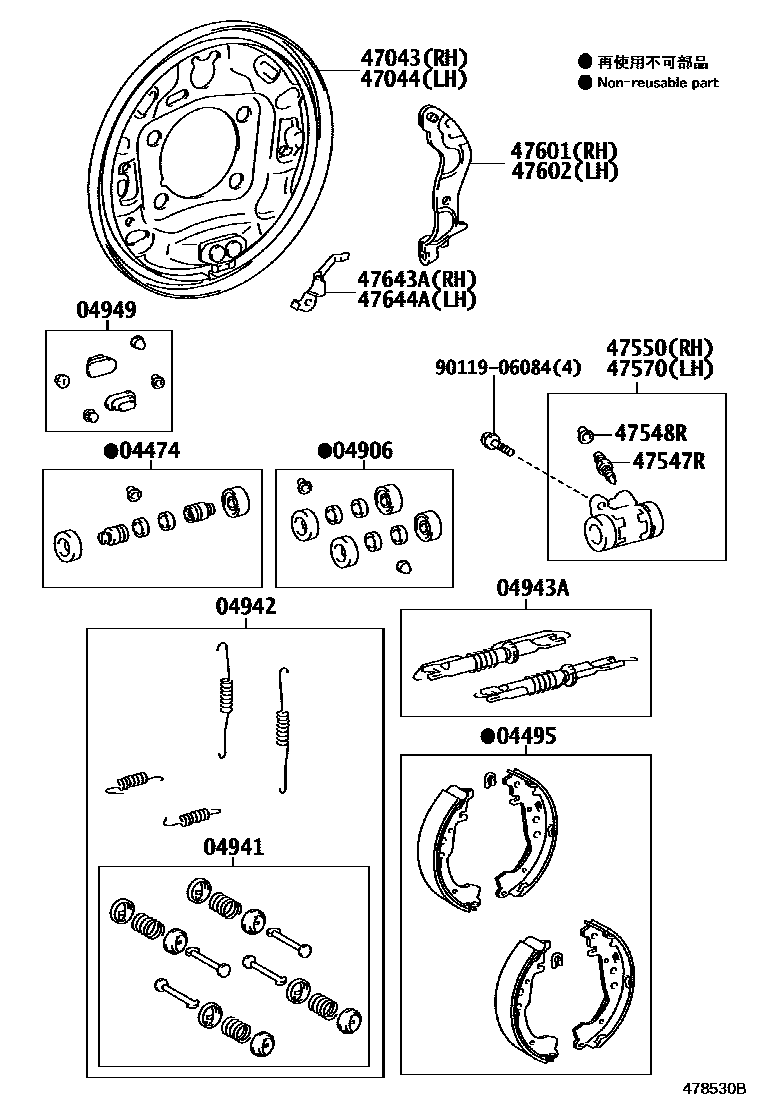

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52140×2iKPJ10201209

04495SHOE KIT, REAR BRAKE

main04495-52120iKPJ10201209-201212

sub04495-52121

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28040iKPJ10201209-201212

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iKPJ10201209

04942SPRING KIT, REAR BRAKE

main04942-13030iKPJ10201209

04943ASTRUT KIT, REAR BRAKE

main04943-52030iKPJ10201209

04949PLUG KIT, REAR BRAKE

main04949-13010iKPJ10201209

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52120iKPJ10201209

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52120iKPJ10201209

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2iKPJ10201209

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iKPJ10201209

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28060iKPJ10201209-201212

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iKPJ10201209-201212

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iKPJ10201209

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iKPJ10201209

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iKPJ10201209

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iKPJ10201209

9011906084

main90119-06084

18 parts on this diagram · 1 diagram in section
