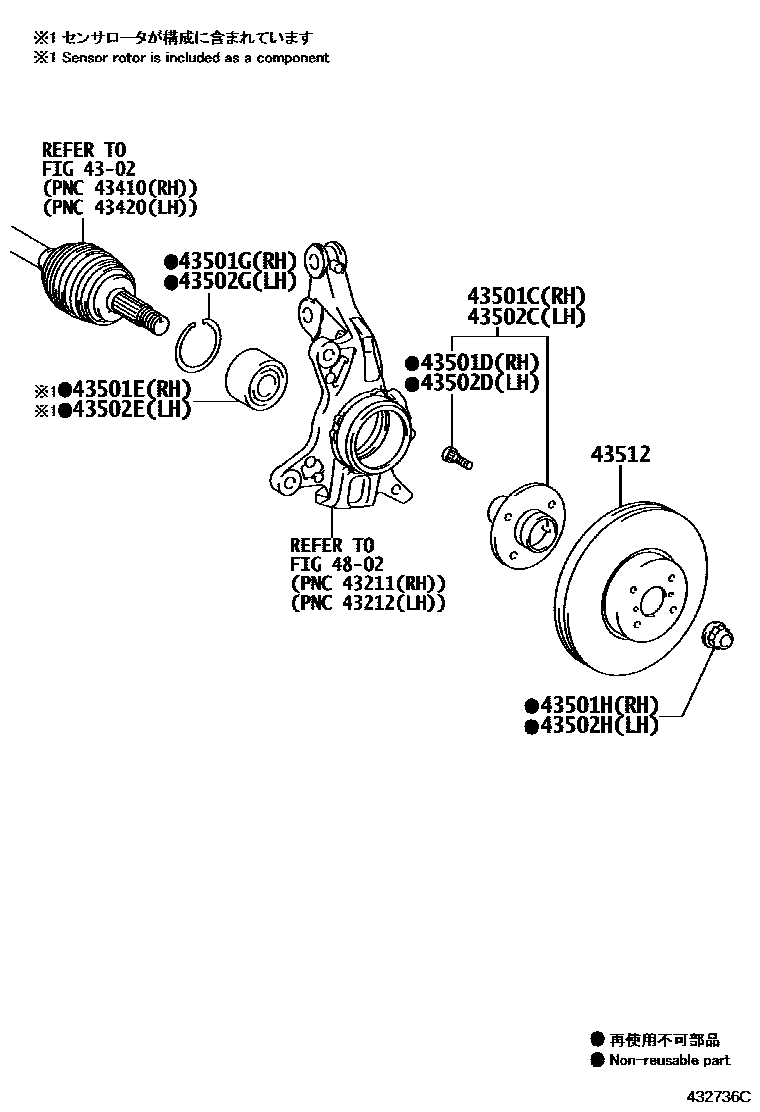

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030iKPJ10201209

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKPJ10201209

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iKPJ10201209

sub90369-40009

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iKPJ10201209

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKPJ10201209

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030iKPJ10201209

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKPJ10201209

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iKPJ10201209

sub90369-40009

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iKPJ10201209

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKPJ10201209

43512DISC, FRONT

main43512-52120iKPJ10201209-201212

4802

13 parts on this diagram · 1 diagram in section
