FRONT SEAT & SEAT TRACK

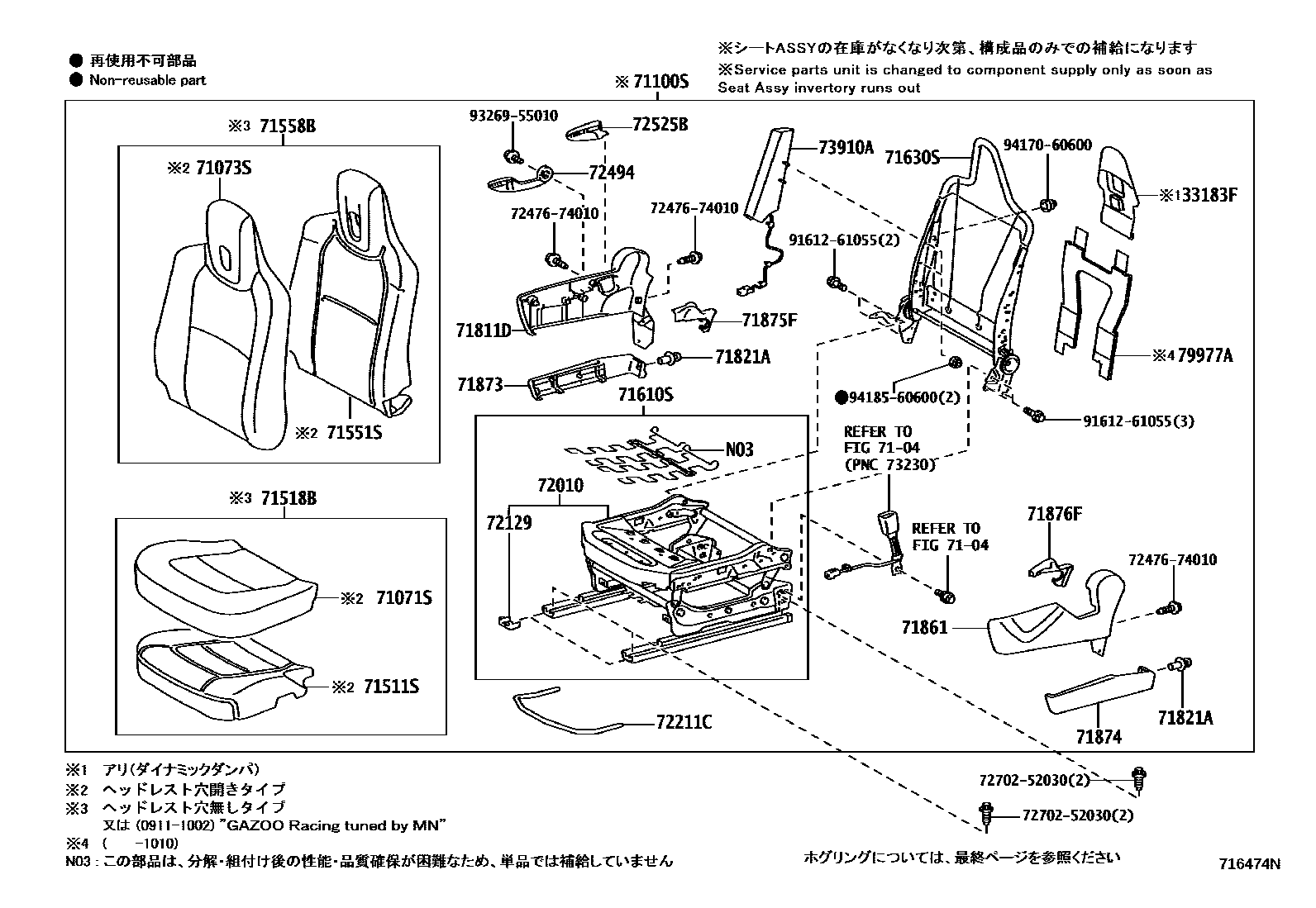

Parts diagram
33183FDAMPER, DYNAMIC
main33183-74010×2i200812
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-74290-B1i201205-201603
DK.GRAY,TRIM7#
main71071-74021-C2i200811-200908
main71071-74021-E2i200811-200908
main71071-74021-E3i200811-200908
main71071-74160-C0i200908-200912
main71071-74160-C1i201008-201105
main71071-74160-C2i201105-201205
main71071-74160-C3i201105-201205
main71071-74160-C6i201205-201405
main71071-74160-C7i201405-201603
main71071-74160-C8i201405-201603
main71071-74160-E0i201011-201105
main71071-74160-E1i200912-201105
main71071-74160-E2i201105-201205
main71071-74160-E3i201105-201205
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-74170-C0i201205-201603
BLACK,TRIM7#
main71073-74021-C1i200811-200908
main71073-74021-E2i200811-200908
main71073-74021-E3i200811-200908
main71073-74110-C0i200908-200912
main71073-74110-E0i200912-201008
main71073-74110-E1i200912-201008
main71073-74111-C0i201009-201205
main71073-74111-C1i201009-201205
main71073-74111-C4i201205-201405
main71073-74111-C5i201405-201603
main71073-74111-C6i201405-201603
main71073-74111-E0i201009-201205
main71073-74111-E1i201009-201205
71100SSEAT ASSY, FRONT RH
main71100-74010-E6i200908-201001
BLACK,TRIM40,45
sub71100-74230
main71100-74010-E8i200811-200812
LIGHT,TRIM41
sub71100-74230
main71100-74010-F0i200908-201001
STD BLACK SEAT DECO BROWN,TRIM50,55
sub71100-74230
main71100-74010-F1i200908-201001
STD LIGHT SEAT DECO BROWN,TRIM51
sub71100-74230
main71100-74011-B0i201001-201005
N STD BLACK SEAT,TRIM1#
main71100-74140-E0i200812-201001
BLACK,TRIM40,45
sub71100-74530
main71100-74140-E1i200812-201001
LIGHT,TRIM41,46
sub71100-74530
main71100-74140-F0i200908-201001
STD BLACK SEAT DECO BROWN,TRIM50
sub71100-74530
main71100-74140-F1i200908-201001
STD LIGHT SEAT DECO BROWN,TRIM51
sub71100-74530
main71100-74141-B0i201001-201005
N STD BLACK SEAT,TRIM1#
main71100-74341-B1i201005-201205
N STD BLACK SEAT,TRIM1#
main71100-74371-B1i201005-201603
N STD BLACK SEAT,TRIM1#
main71100-74480-H1i201205-201603
DK.GRAY FAB/ODIAS,TRIM7#
main71100-74490-H1i201205-201603
DK.GRAY FAB/ODIAS,TRIM7#
main71100-74090-E4i200811-200812
main71100-74090-E5i200811-200812
main71100-74090-E6i200811-200812
main71100-74150-E0i200812-200908
main71100-74150-E1i200812-200908
main71100-74150-E2i200812-200908
main71100-74220-E0i200912-201001
main71100-74220-E1i200912-201001
main71100-74220-E2i200908-200912
main71100-74220-F0i200908-200912
main71100-74220-F1i200908-200912
main71100-74220-F2i200912-201001
main71100-74221-E0i201001-201008
main71100-74221-E1i201001-201008
main71100-74221-E2i201001-201008
main71100-74221-F0i201001-201008
main71100-74221-F1i201001-201008
main71100-74222-E0i201009-201105
main71100-74222-E1i201009-201105
main71100-74222-E2i201009-201105
main71100-74222-E3i201105-201205
main71100-74222-E4i201105-201205
main71100-74222-E5i201105-201205
main71100-74222-F0i201009-201105
main71100-74222-F1i201009-201105
main71100-74222-F2i201105-201205
main71100-74222-F3i201105-201205
main71100-74222-H0i201009-201105
main71100-74222-H1i201009-201105
main71100-74222-H2i201105-201205
main71100-74222-H3i201105-201205
main71100-74310-E0i200912-201001
main71100-74310-E1i200908-200912
main71100-74310-E2i200908-200912
main71100-74310-F0i200908-200912
main71100-74310-F1i200912-201001
main71100-74310-F2i200908-200912
main71100-74311-E0i201001-201008
main71100-74311-E1i201001-201008
main71100-74311-E2i201001-201008
main71100-74311-F0i201001-201008
main71100-74311-F1i201001-201008
main71100-74312-E0i201009-201105
main71100-74312-E1i201009-201105
main71100-74312-E2i201009-201105
main71100-74312-E3i201105-201205
main71100-74312-E4i201105-201205
main71100-74312-E5i201105-201205
main71100-74312-F0i201009-201105
main71100-74312-F1i201009-201105
main71100-74312-F2i201105-201205
main71100-74312-F3i201105-201205
main71100-74312-H0i201009-201105
main71100-74312-H1i201009-201105
main71100-74312-H2i201105-201205
main71100-74312-H3i201105-201205
main71100-74312-H5i201205-201405
main71100-74312-H6i201405-201603
main71100-74312-J0i201205-201405
main71100-74312-J1i201405-201603
main71100-74312-J2i201405-201603
main71100-74340-E0i200911-201002
sub71100-74630
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-74070i201205
main71511-74010i200811-200908
71518BPAD, FRONT SEAT CUSHION W/COVER, RH
main71518-74010-E2i200811-201005
BLACK,TRIM40,45
sub71518-74012
main71518-74010-E4i200811-201005
LIGHT,TRIM41,46
sub71518-74012
main71518-74010-F0i200908-201005
STD BLACK SEAT DECO BROWN,TRIM50
sub71518-74012
main71518-74010-F1i200908-201005
STD LIGHT SEAT DECO BROWN,TRIM51
sub71518-74012
main71518-74051-B0i201005-201111
N STD BLACK SEAT,TRIM1#
main71518-74051-B1i201111-201205
N STD BLACK SEAT,TRIM1#
main71518-74050-E0i200911-201002
sub71518-74052
main71518-74090i201208-201209
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-74020i201205
main71551-74010i200811-200908
main71551-74080i201208-201209
71558BPAD, FRONT SEATBACK W/COVER, RH
main71558-74010-E0i200812-201005
BLACK,TRIM40,45
sub71558-74012
main71558-74010-E1i200812-201005
LIGHT,TRIM41,46
sub71558-74012
main71558-74010-F0i200908-201005
STD BLACK SEAT DECO BROWN,TRIM50
sub71558-74012
main71558-74010-F1i200908-201005
STD LIGHT SEAT DECO BROWN,TRIM51
sub71558-74012
main71558-74051-B1i201005-201111
N STD BLACK SEAT,TRIM1#
main71558-74051-B2i201111-201205
N STD BLACK SEAT,TRIM1#
main71558-74050-E0i200911-201002
sub71558-74052
main71558-74110i201208-201209
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-74011i201005
main71610-74010i200912-201001
main71610-74020i201208-201209
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-74010i200811-200812
main71630-74011i200812-201001
main71630-74012i201001-201005
main71630-74030i201005
main71630-74100i201208-201209
71811DSHIELD, FRONT SEAT CUSHION, RH
main71805-74010-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
main71811-74010-C0i200811-201001
BLACK,TRIM1#,4#,5#,7#
71821ACLIP (FOR FRONT SEAT SIDE SHIELD)
main90467-09087-22×2i201005-201603
BLACK,TRIM1#,4#,5#,7#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71806-74010-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
main71861-74010-C0i200811-201001
BLACK,TRIM1#,4#,5#,7#
main71861-74020-C0i200911-201002
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-74010-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-74020-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-74010-C0supersedes 71875-74010-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-74010-C0supersedes 71876-74010-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-74010i200811-201005
main72010-74032i201005
main72010-74030i200908-200912
sub72010-74031
72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
main72129-74010×2i200811
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-74010i201005
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-74010-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
72525BHANDLE, RECLINING ADJUSTER RELEASE, RH
main72507-74010-C0i200811-201001
BLACK,TRIM1#,4#,5#,7#
main72525-47010-C0i201005-201603
BLACK,TRIM1#,4#,5#,7#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-74010i200811-201005
sub73910-74011
main73910-74040i201005
79977AFELT, SEATBACK
main79977-74010×2i200811-200812
main79977-74011×2i200812-201010
7247674010SCREW, HORIZONTAL JACK, INNER
main72476-74010
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
9161261055
main91612-61055
9326955010
main93269-55010
9417060600
main94170-60600
9418560600
main94185-60600

31 parts on this diagram · 8 diagrams in section
