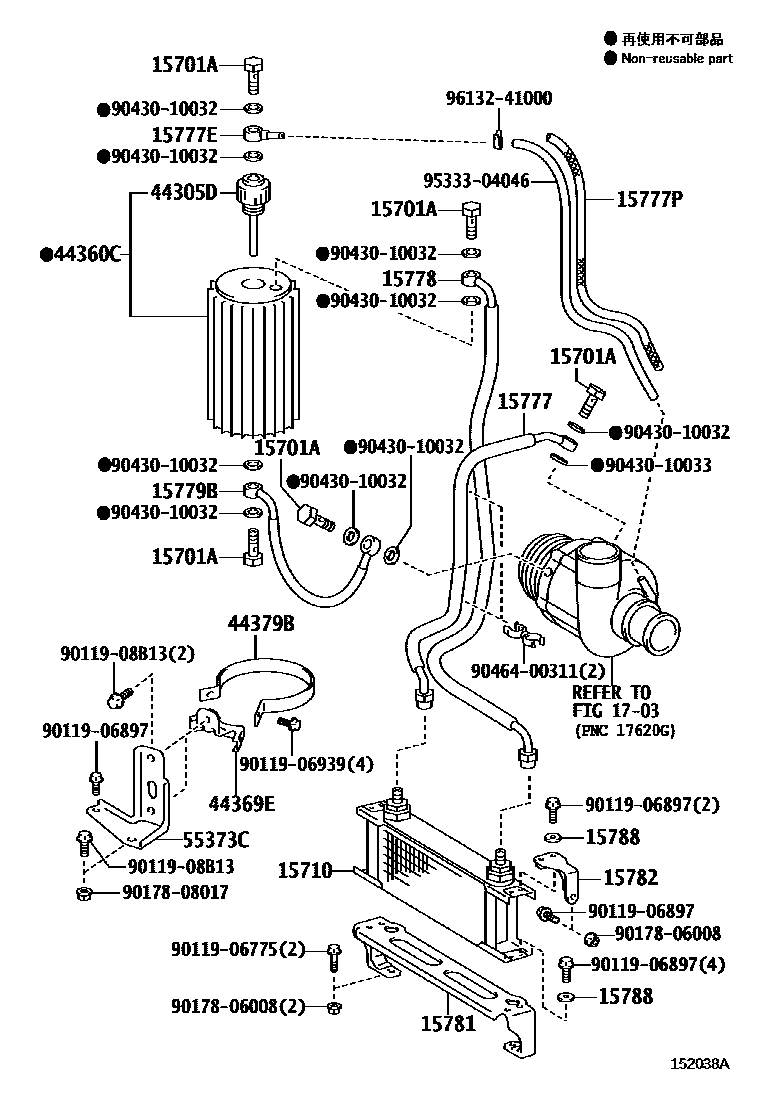

ENGINE OIL COOLER
15701ABOLT, UNION
15710COOLER ASSY, OIL
15777HOSE, OIL COOLER
15777EUNION
15777PPROTECTOR, HOSE HEAT
15778HOSE, OIL COOLER, NO.2
15779BHOSE, OIL COOLER, NO.3
15781BRACKET, OIL COOLER, NO.1
15782BRACKET, OIL COOLER, NO.2
15788SPACER, OIL COOLER
1703
44305DCAP SUB-ASSY, RESERVOIR
44360CRESERVOIR ASSY, OIL
44369EBRACKET, OIL RESERVOIR, NO.1
44379BBRACKET, OIL RESERVOIR, NO.2
55373CBRACKET, OIL RESERVOIR TANK
9011906775
main90119-06775
9011906897
main90119-06897
9011906939
main90119-06939
9011908B13
main90119-08B13
9017806008
main90178-06008
9017808017
main90178-08017
9043010032
main90430-10032
9043010033
main90430-10033
9046400311
main90464-00311
9533304046
main95333-04046
9613241000
main96132-41000
27 parts on this diagram · 1 diagram in section
