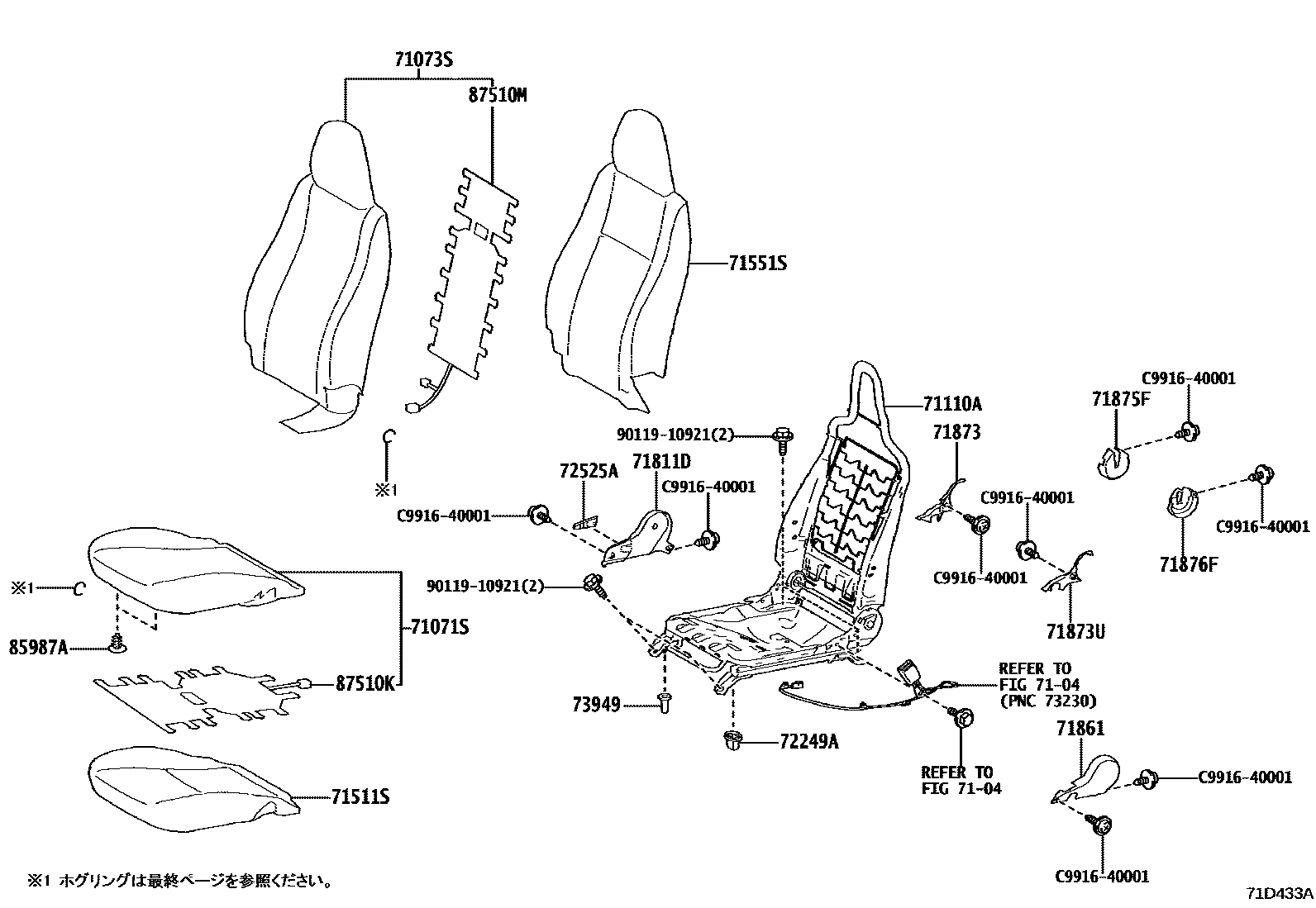

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������� 0003 1�����

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-55010-B1iRMV1#..G202012

BLUISH GRAY,TRIM1#

main71071-55020-B1iRMV12..X202012

BLUISH GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-55010-B1iRMV1#..G202012

BLUISH GRAY,TRIM1#

main71073-55020-B1iRMV12..X202012

BLUISH GRAY,TRIM1#

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-55010iRMV1#202012

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-26180iRMV1#202012

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-26290iRMV1#202012

71811DSHIELD, FRONT SEAT CUSHION, RH

main71867-26010-C0iRMV1#202012

BLACK,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-26010-C0iRMV1#202012

BLACK,TRIM1#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71875-26020-B1iRMV1#202012

DK.GRAY

sub71875-26020

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71876-26030-B1iRMV1#202012

DK.GRAY

sub71876-26030

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-26010-B1iRMV1#202012

DK.GRAY

sub71875-26010

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-26010-B1iRMV1#202012

DK.GRAY

sub71876-26010

72249AGUIDE, SEAT TRACK LOCKING

main72249-26030iRMV12202012

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-26080-C0iRMV1#202012

BLACK,TRIM1#

73949CAP

main71848-26010iRMV12202012

85987ACLIP

main90467-08186-C3iRMV12202012

BLACK

sub90467-08186

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-55010iRMV1#..G202012

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-55010iRMV1#..G202012

9011910921

main90119-10921

C991640001

mainC9916-40001

20 parts on this diagram · 3 diagrams in section
