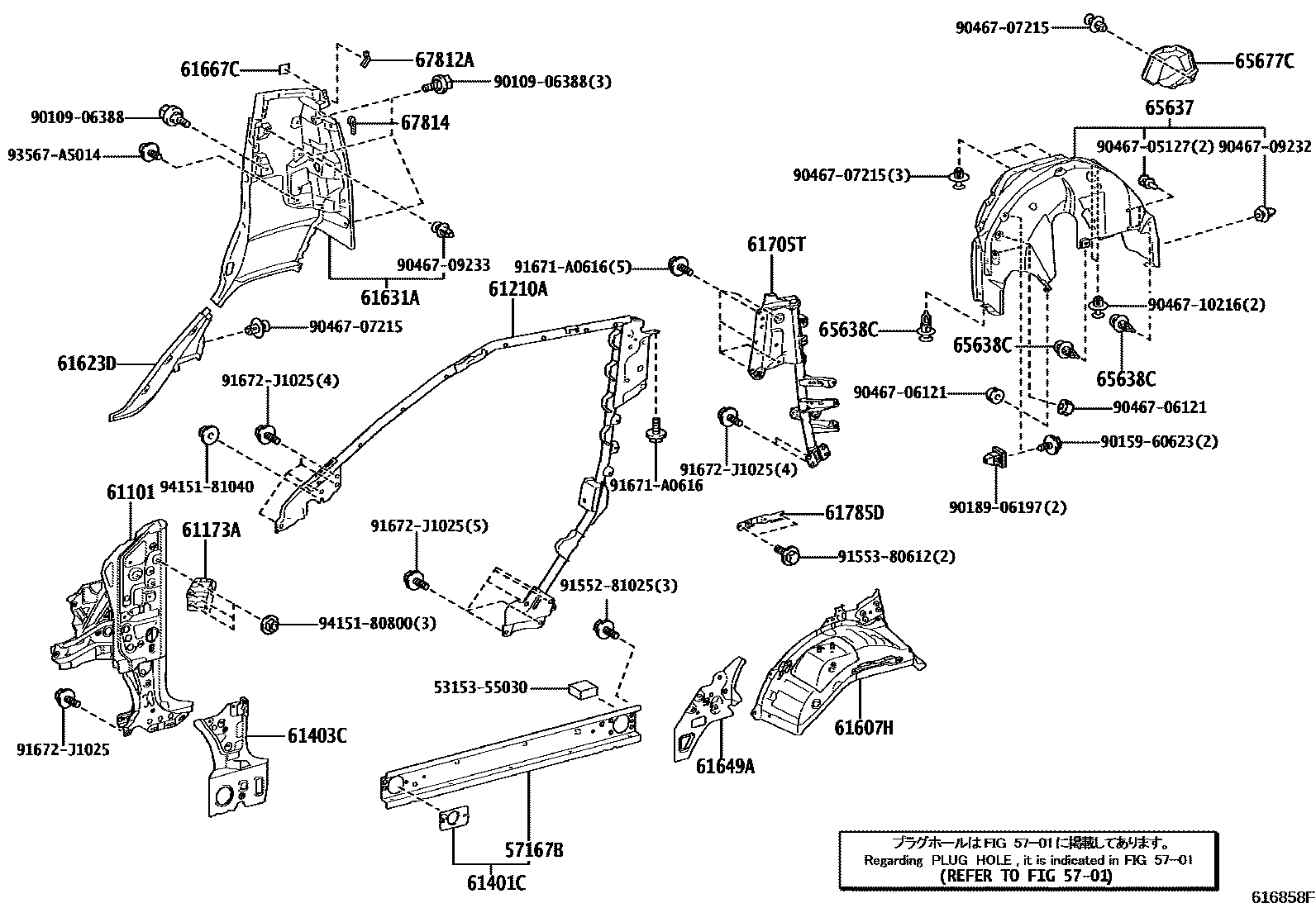

SIDE MEMBER
5701
57167BMEMBER, FRONT FLOOR, RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61210ARAIL ASSY, ROOF SIDE, RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61623DEXTENSION, QUARTER PANEL, FRONT RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61649APLATE, QUARTER WHEEL HOUSE
61667CSEAL, QAURTER PANEL, NO.1
61705TFRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61785DEXTENSION, BACK DOOR OPENING SIDE, RH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
65638CCLIP, REAR WHEEL HOUSE LINER
65677CSEAL, WHEEL HOUSE, REAR RH
67812APAD, QUARTER PANEL SILENCER
67814PAD, QUARTER PANEL SILENCER, NO.2
5315355030
main53153-55030
9010906388
main90109-06388
9015960623
main90159-60623
9018906197
main90189-06197
9046705127
main90467-05127
9046706121
main90467-06121
9046707215
main90467-07215
9046709232
main90467-09232
9046709233
main90467-09233
9046710216
main90467-10216
9155281025
main91552-81025
9155380612
main91553-80612
91671A0616
main91671-A0616
91672J1025
main91672-J1025
93567A5014
main93567-A5014
9415180800
main94151-80800
9415181040
main94151-81040
37 parts on this diagram · 2 diagrams in section
