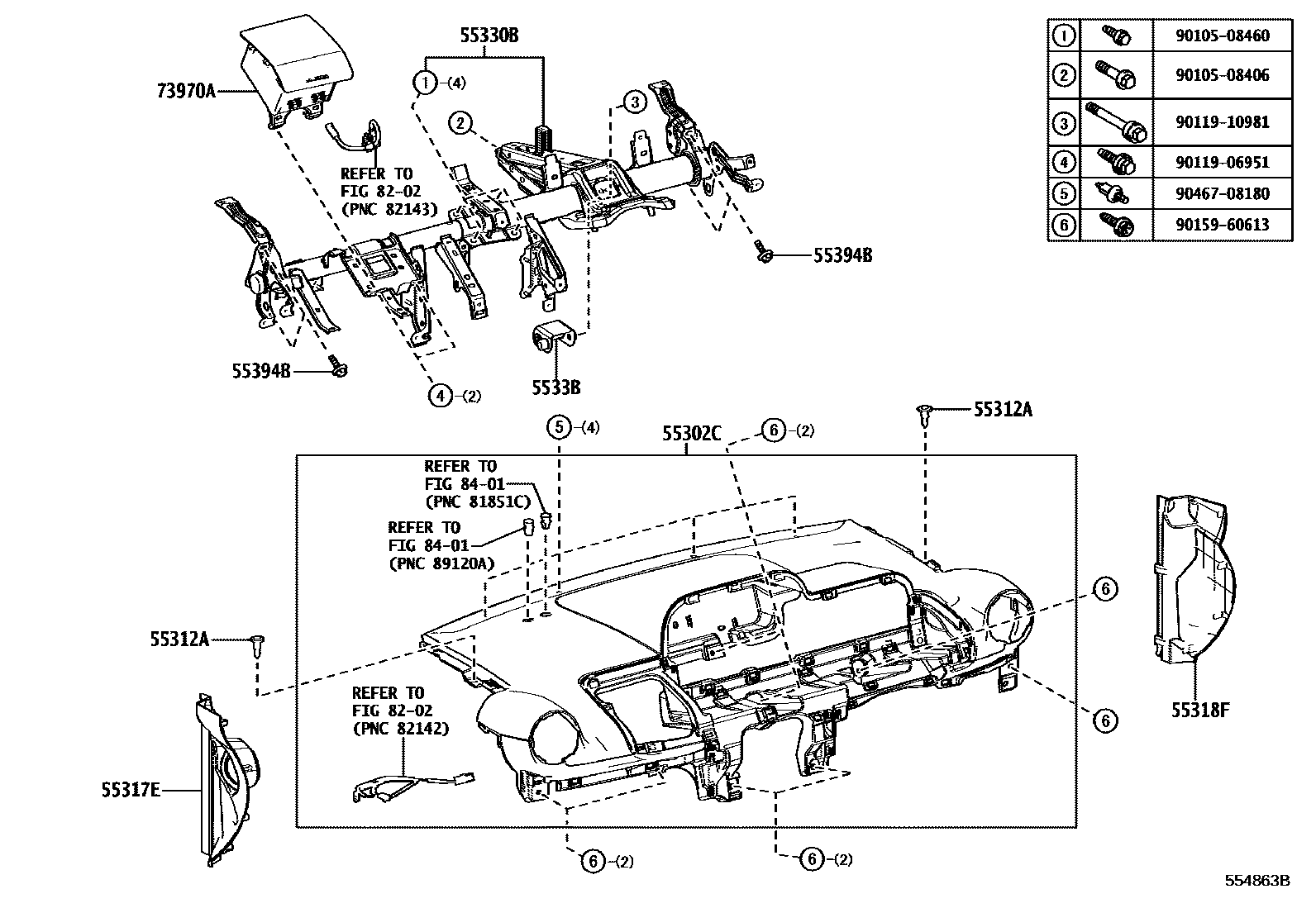

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1���������� 0005 1 0006 1��������� 0007 1����� 0008 1����������

55302CPANEL SUB-ASSY, INSTRUMENT

main55302-55010-C0iRMV1#202012

BLACK,TRIM1#

55312ACLIP, INSTRUMENT PANEL

main52161-16010iRMV1#202012

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-55010-C0iRMV1#202012

BLACK,TRIM1#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-55020-C0iRMV1#202012

BLACK,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-55010iRMV1#202012

5533BSPACER, INSTRUMENT PANEL EXTENSION

main5533B-55010iRMV1#202012

55394BBOLT, INSTRUMENT PANEL

main90105-08460iRMV1#202012

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-55010-A0iRMV12202012

WHITE,TRIM1#

8202

8401

9010508406

main90105-08406

9010508460

main90105-08460

9011906951

main90119-06951

9011910981

main90119-10981

9015960613

main90159-60613

9046708180

main90467-08180

16 parts on this diagram · 8 diagrams in section
