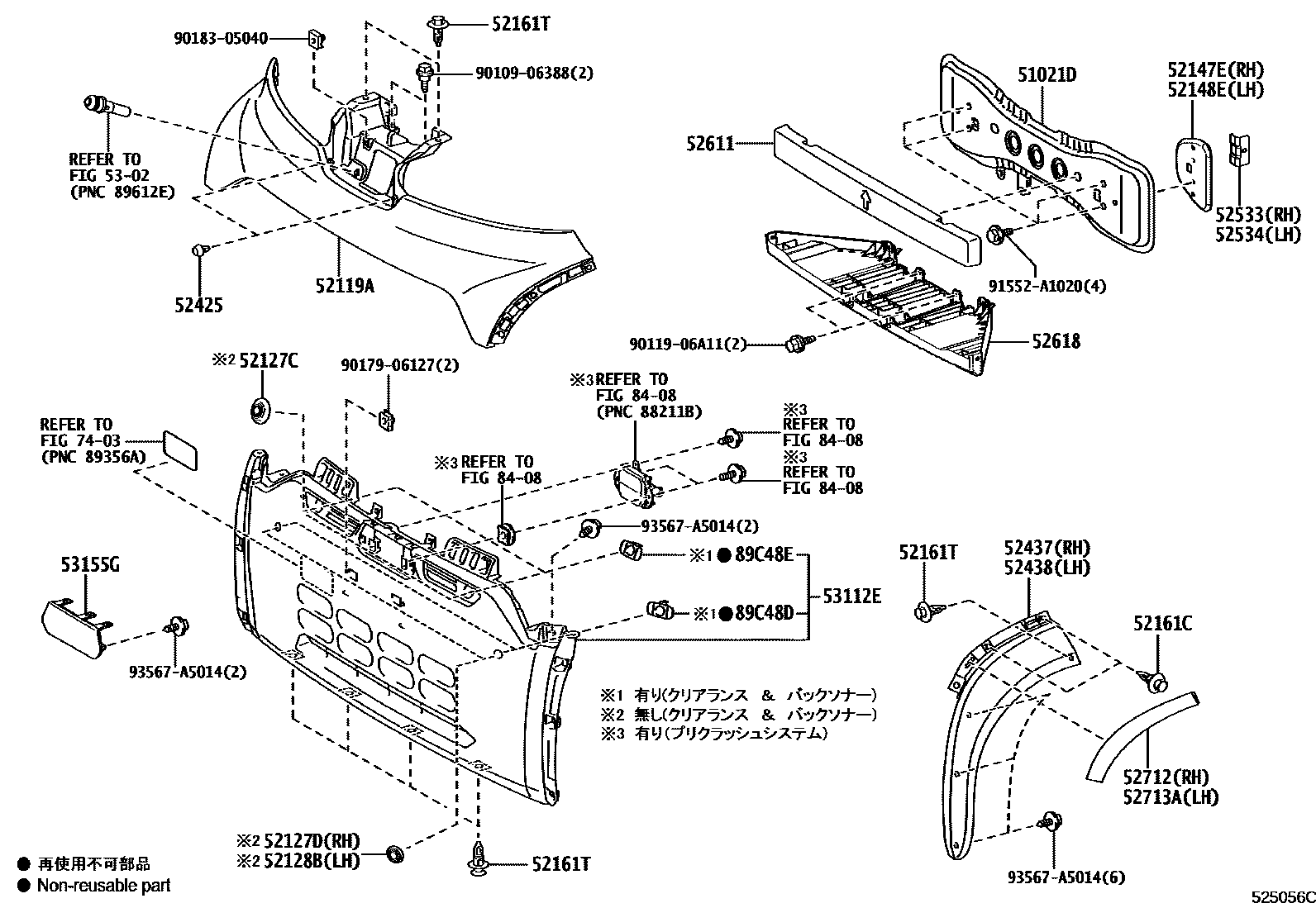

FRONT BUMPER & BUMPER STAY
51021DCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
52119ACOVER, FRONT BUMPER
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52161CPIECE, FRONT BUMPER
52161TPIECE, FRONT BUMPER
52425CUSHION, FRONT BUMPER
52437COVER, FRONT BUMPER GUARD, RH
52438COVER, FRONT BUMPER GUARD, LH
52533BRACKET, FRONT BUMPER RETAINER, NO.1
52534BRACKET, FRONT BUMPER RETAINER, NO.2
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
52712MOULDING, FRONT BUMPER SIDE, RH
52713AMOULDING, FRONT BUMPER SIDE, LH
5302
53155GSEAL, RADIATOR GRILLE
7403
8408
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
DUMMY-MAT BLACK
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
9010906388
main90109-06388
9011906A11
main90119-06A11
9017906127
main90179-06127
9018305040
main90183-05040
91552A1020
main91552-A1020
93567A5014
main93567-A5014
31 parts on this diagram · 2 diagrams in section
