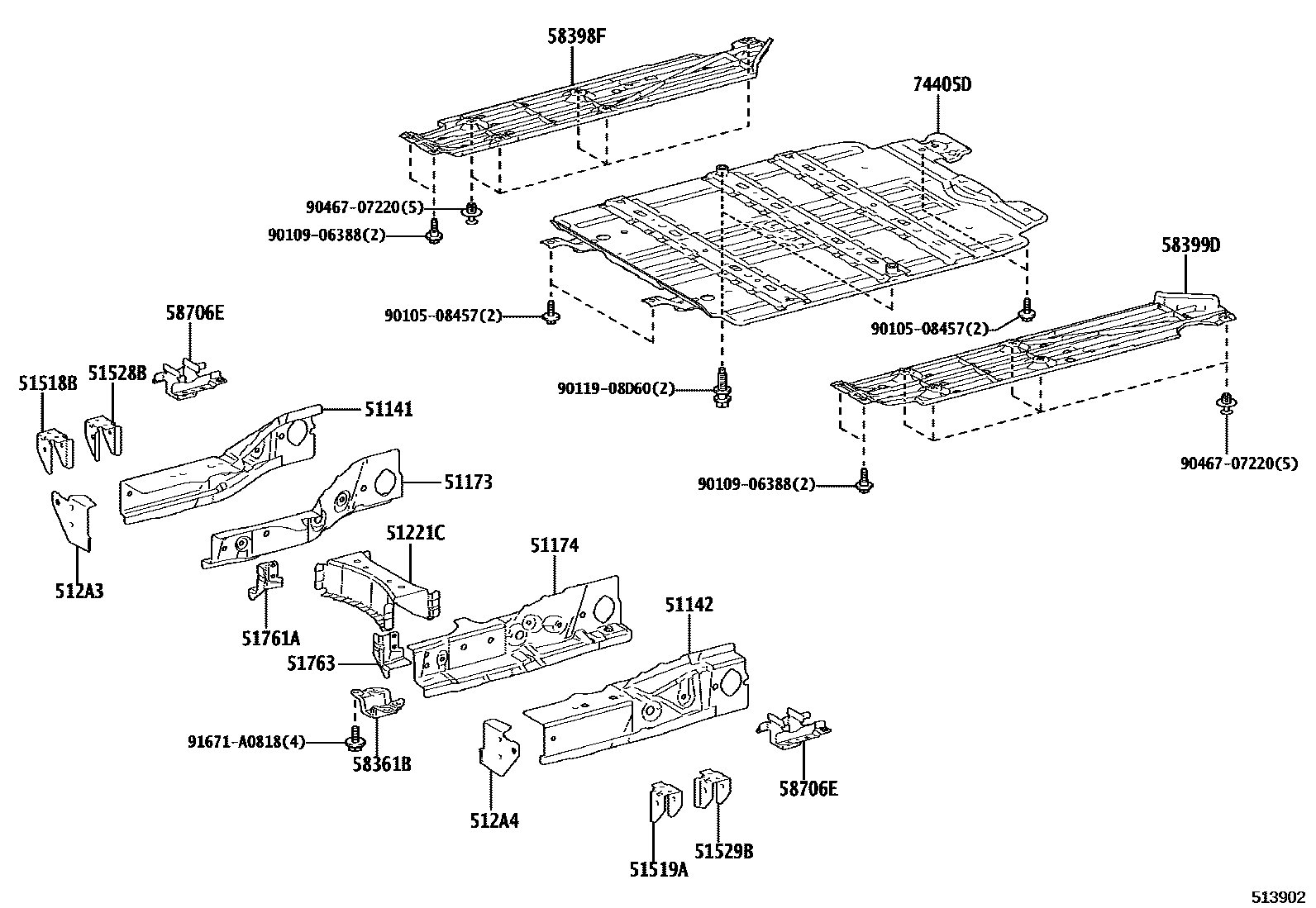

SUSPENSION CROSSMEMBER & UNDER COVER
51141REINFORCEMENT, SIDE RAIL, RH
51142REINFORCEMENT, SIDE RAIL, LH
51173REINFORCEMENT, FRONT INNER CHANNEL, RH
51174REINFORCEMENT, FRONT INNER CHANNEL, LH
51221CCROSSMEMBER, FRAME, NO.2
512A3BRACKET, FRAME AUXILIARY CROSSMEMBER, NO.1 RH
512A4BRACKET, FRAME AUXILIARY CROSSMEMBER, NO.1 LH
51518BBRACKET, LOWER ARM, RH
51519ABRACKET, LOWER ARM, LH
51528BBRACKET, LOWER ARM SUPPORT, REAR RH
51529BBRACKET, LOWER ARM SUPPORT, REAR LH
51761ABRACKET, BODY SUPPORT, NO.5 RH
51763BRACKET, BODY SUPPORT, NO.5 LH
58361BHEAD, JACK BRACKET
58398FCOVER, FLOOR UNDER, NO.1
58399DCOVER, FLOOR UNDER, NO.2
58706EBRACKET SUB-ASSY, JACK CARRIER, NO.1
74405DCOVER SUB-ASSY,BATTERY UNDER
9010508457
9010906388
9011908D60
9046707220
91671A0818
23 parts on this diagram · 1 diagram in section
