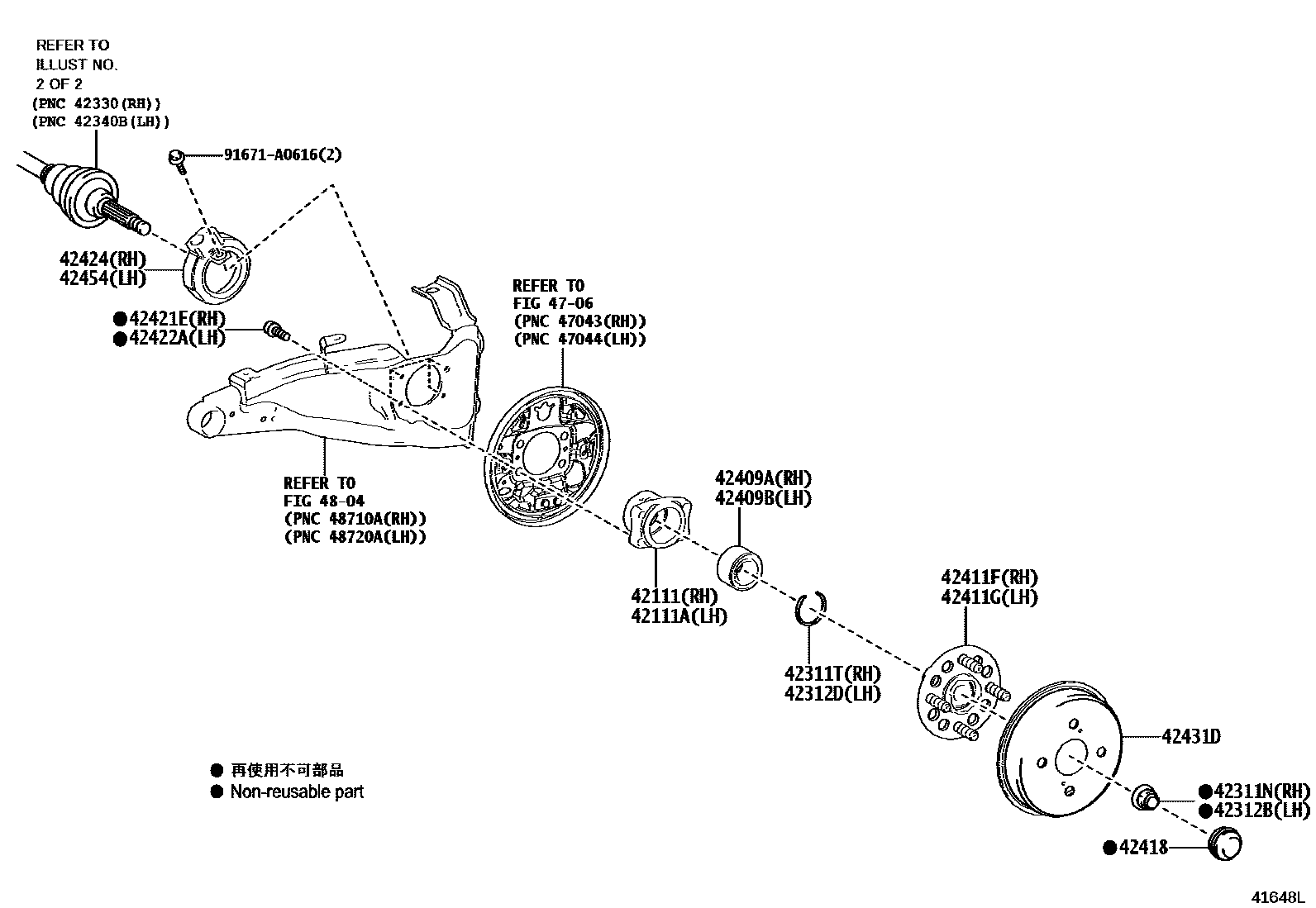

REAR AXLE SHAFT & HUB

0001 1 0002 1������� 0003 1������

42111HOUSING, REAR AXLE, RH

main42111-55050iRMV1#202012

42111AHOUSING, REAR AXLE, LH

main42111-55060iRMV1#202012

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-18002iRMV1#202012

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90521-59011iRMV1#202012

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-18002iRMV1#202012

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90521-59011iRMV1#202012

42409ABEARING SUB-ASSY, REAR AXLE, RH

main42409-55020iRMV1#202012

42409BBEARING SUB-ASSY, REAR AXLE, LH

main42409-55020iRMV1#202012

42411FHUB, REAR AXLE, RH

main42411-55040iRMV1#202012

42411GHUB, REAR AXLE, LH

main42411-55040iRMV1#202012

42418CAP, REAR HUB GREASE

main42418-55010iRMV1#202012

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90119-12475iRMV1#202012

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90119-12475iRMV1#202012

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-55010iRMV1#202012

42431DDRUM, BRAKE

main42431-55020iRMV1#202012

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-55010iRMV1#202012

4706

4804

91671A0616

main91671-A0616

19 parts on this diagram · 3 diagrams in section
