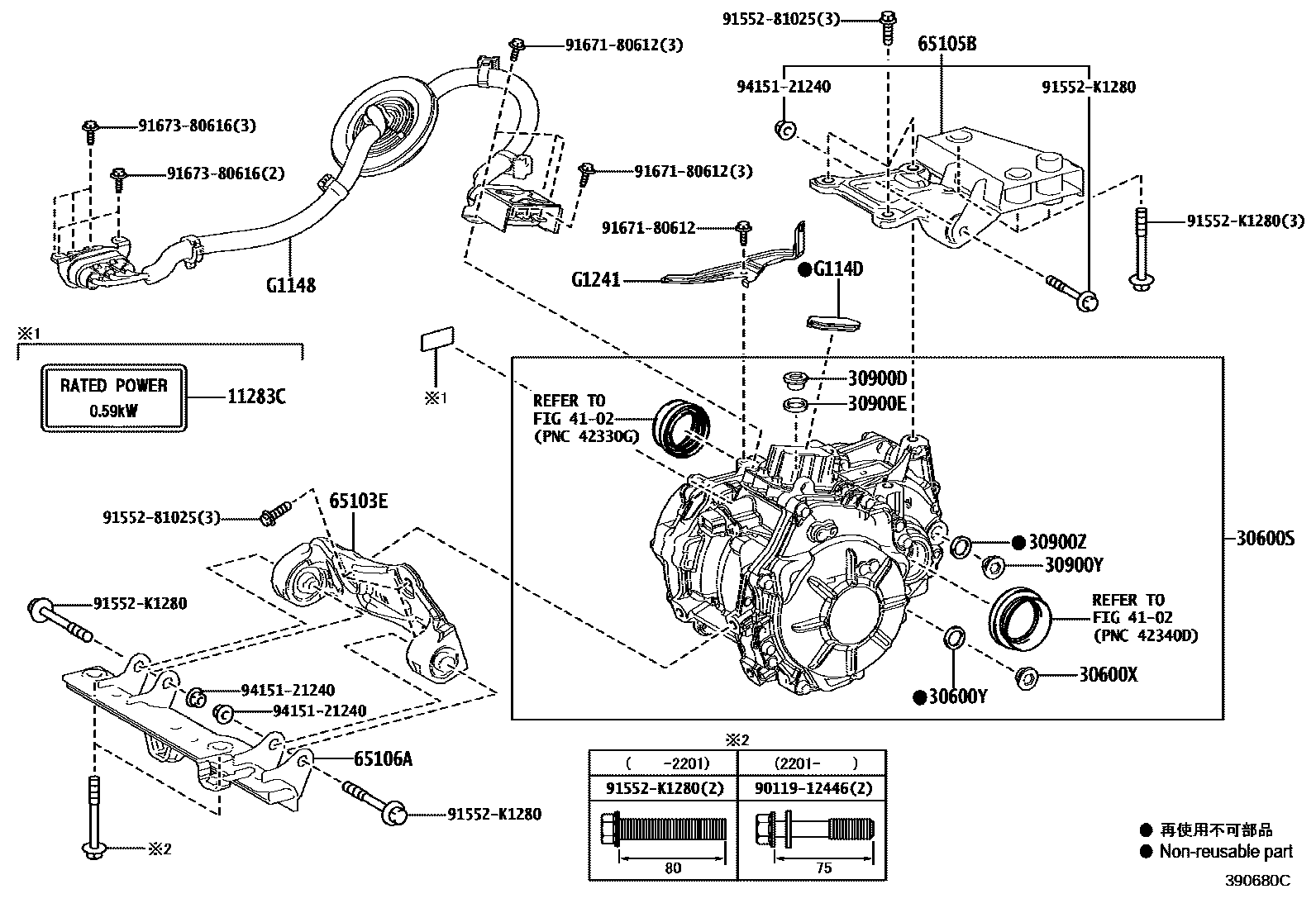

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

11283CLABEL, MOTOR POWER INFORMATION

main11283-10010i1RM..RMV11202102

30600STRANSAXLE ASSY, EV W/MOTOR

main30600-55020iRMV1#202012

30600XPLUG, DRAIN(BEV)

main90341-18023iRMV1#202012

30600YGASKET, DRAIN PLUG(BEV)

main90430-18008iRMV1#202012

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18023iRMV1#202012

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iRMV1#202012

30900YPLUG, FILLER(BEV)

main90341-18023iRMV1#202012

30900ZGASKET, FILLER PLUG(BEV)

main90430-18008iRMV1#202012

4102

65103EBRACKET SUB-ASSY, MOUNTING, NO.1

main65103-55010iRMV1#202012

65105BBRACKET SUB-ASSY, MOUNTING, NO.2

main65105-55010iRMV1#202012

65106ABRACKET SUB-ASSY, MOUNTING, NO.3

main65106-55010iRMV1#202012

G1148CABLE, MOTOR

mainG114855010iRMV1#202012

G114DCAP, MOTOR CABLE TERMINAL

mainG114D47021iRMV1#202012

G1241BRACKET, INVERTER MOTOR CABLE CLAMP

mainG124155010iRMV1#202012

9011912446

main90119-12446

9155281025

main91552-81025

91552K1280

main91552-K1280

9167180612

main91671-80612

9167380616

main91673-80616

9415121240

main94151-21240

21 parts on this diagram · 1 diagram in section
