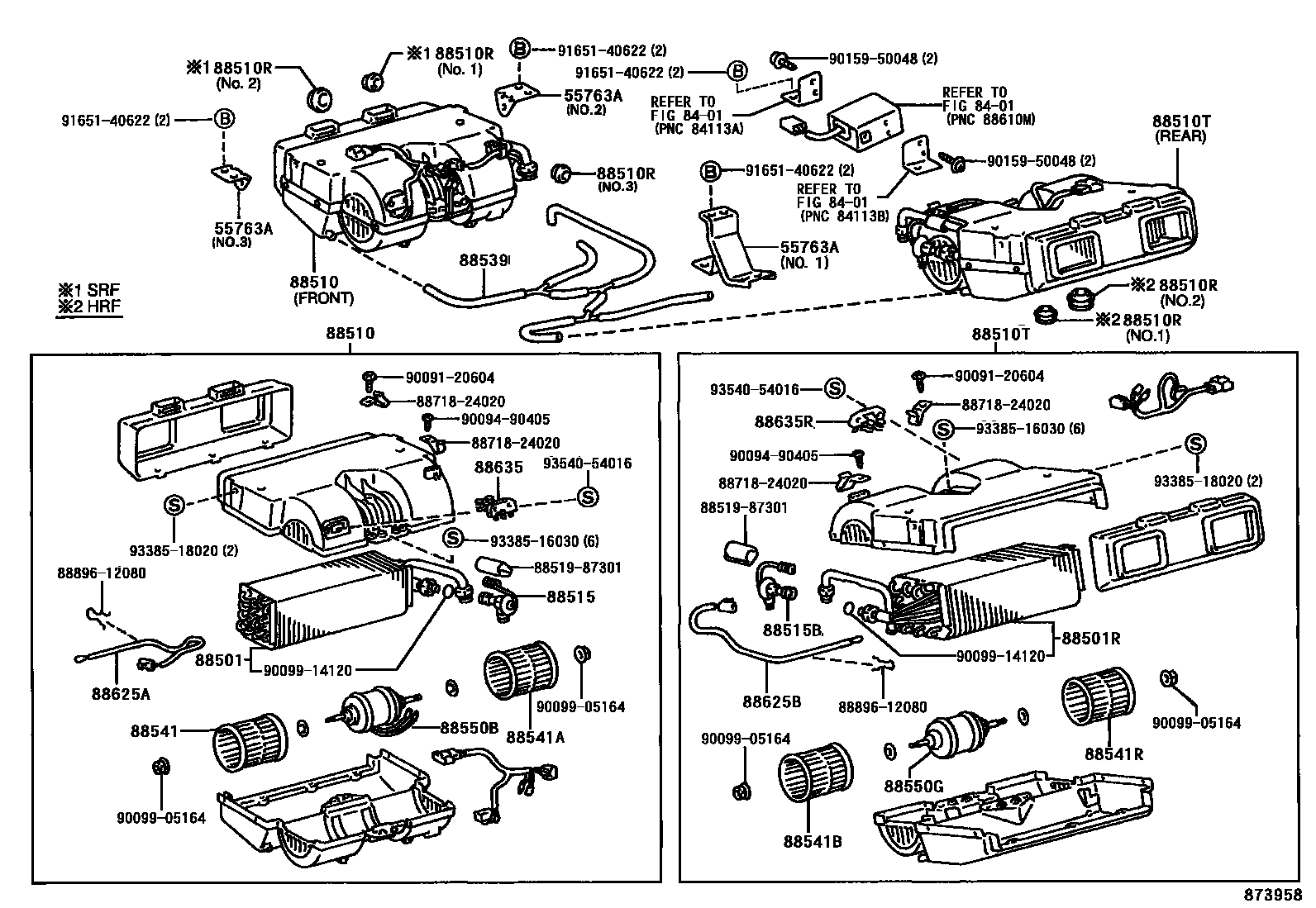

HEATING & AIR CONDITIONING - COOLER UNIT
55763ABRACKET, COOLER MOUNTING
NO.1
NO.2
NO.3
8401
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501REVAPORATOR SUB-ASSY (REAR)
88510UNIT ASSY, COOLER
88510RGROMMET (FOR COOLER UNIT)
NO.1
NO.3
NO.1 & NO.2
88510TUNIT ASSY, COOLING (REAR)
88515VALVE, COOLER EXPANSION
88515BVALVE, REAR COOLING UNIT EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88541FAN, BLOWER
88541AFAN, BLOWER, NO.2
88541BFAN, BLOWER, NO.3
88541RFAN, BLOWER
88550BMOTOR ASSY, BLOWER
88550GMOTOR ASSY, BLOWER, REAR
88625THERMISTOR, COOLER, NO.1
88625ATHERMISTOR, COOLER NO.2
88625BTHERMISTOR, COOLER NO.3
88635RESISTOR, COOLER UNIT BLOWER
88635RRESISTOR, BLOWER
8851987301HOLDER, REMOTE BULB
main88519-87301
8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-24020
8889612080PLATE, COOLER AIR OUTLET GRILLE ORNAMENT
main88896-12080
9009120604
main90091-20604
9009490405
main90094-90405
9009905164
main90099-05164
9009914120
main90099-14120
9015950048
main90159-50048
9165140622
main91651-40622
9338516030
main93385-16030
9338518020
main93385-18020
9354054016
main93540-54016
33 parts on this diagram · 3 diagrams in section
