WINDSHIELD WIPER
85070MOTOR & BRACKET ASSY, FRONT WIPER
85150BLINK ASSY, WIPER
85154PACKING, FRONT WIPER SHAFT
85160LINK ASSY, WINDSHIELD WIPER
85168NUT, WINDSHIELD WIPER LINK PIVOT
85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
sub85214-20370
85214BRUBBER, WIPER, LH
sub85214-35060
85214CRUBBER, WIPER BLADE, CENTER
sub85214-20370
85221BARM, FRONT WIPER, LH
85221CARM, FRONT WIPER, CENTER
85222ABLADE, FR WIPER, LH
85222BBLADE, FR WIPER, CENTER
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85224GPLATE, WIPER BLADE RUBBER BACKING, NO.5
85224HPLATE, WIPER BLADE RUBBER BACKING, NO.6
9011906166
main90119-06166
9017608029
main90176-08029

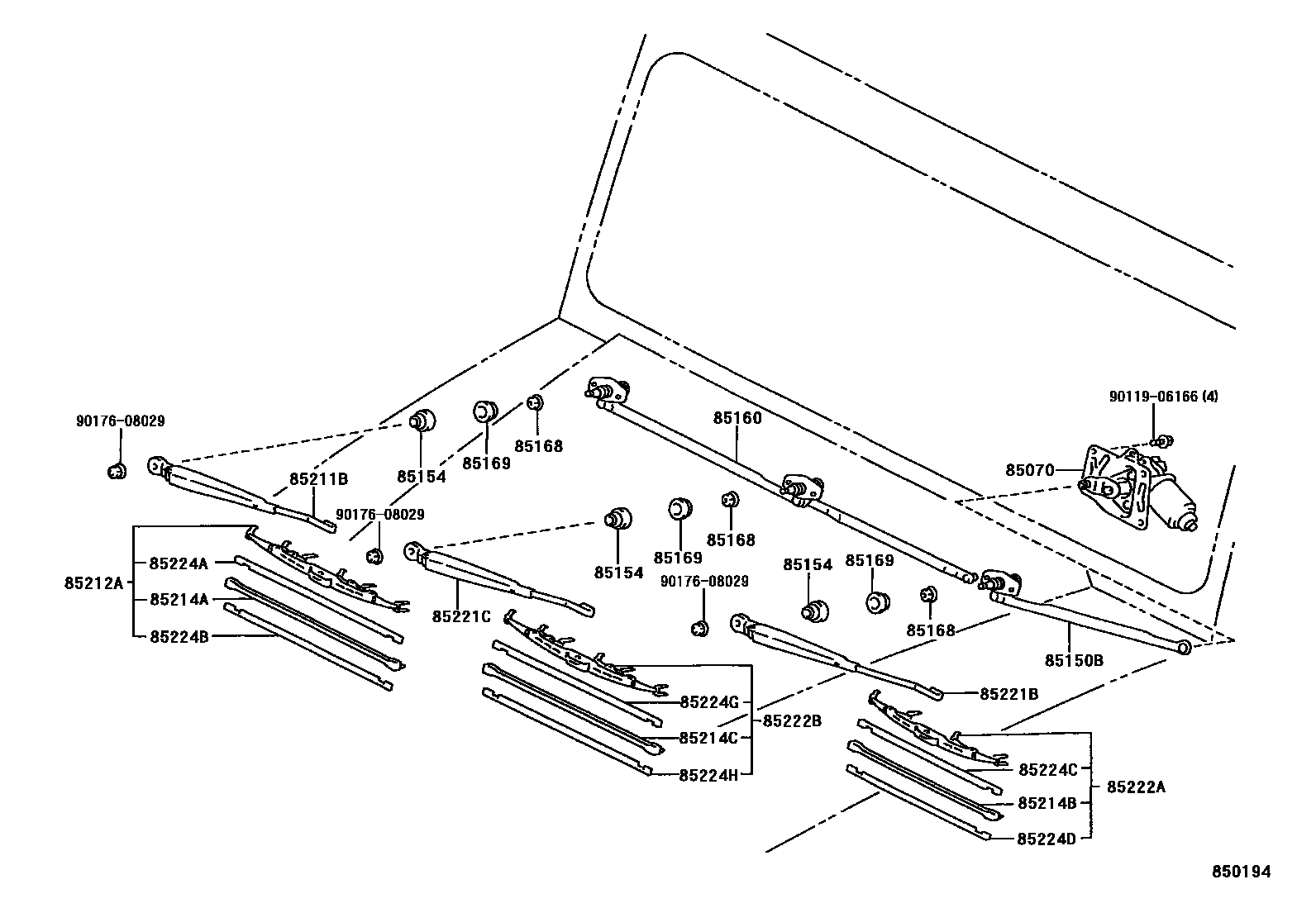

23 parts on this diagram · 1 diagram in section
