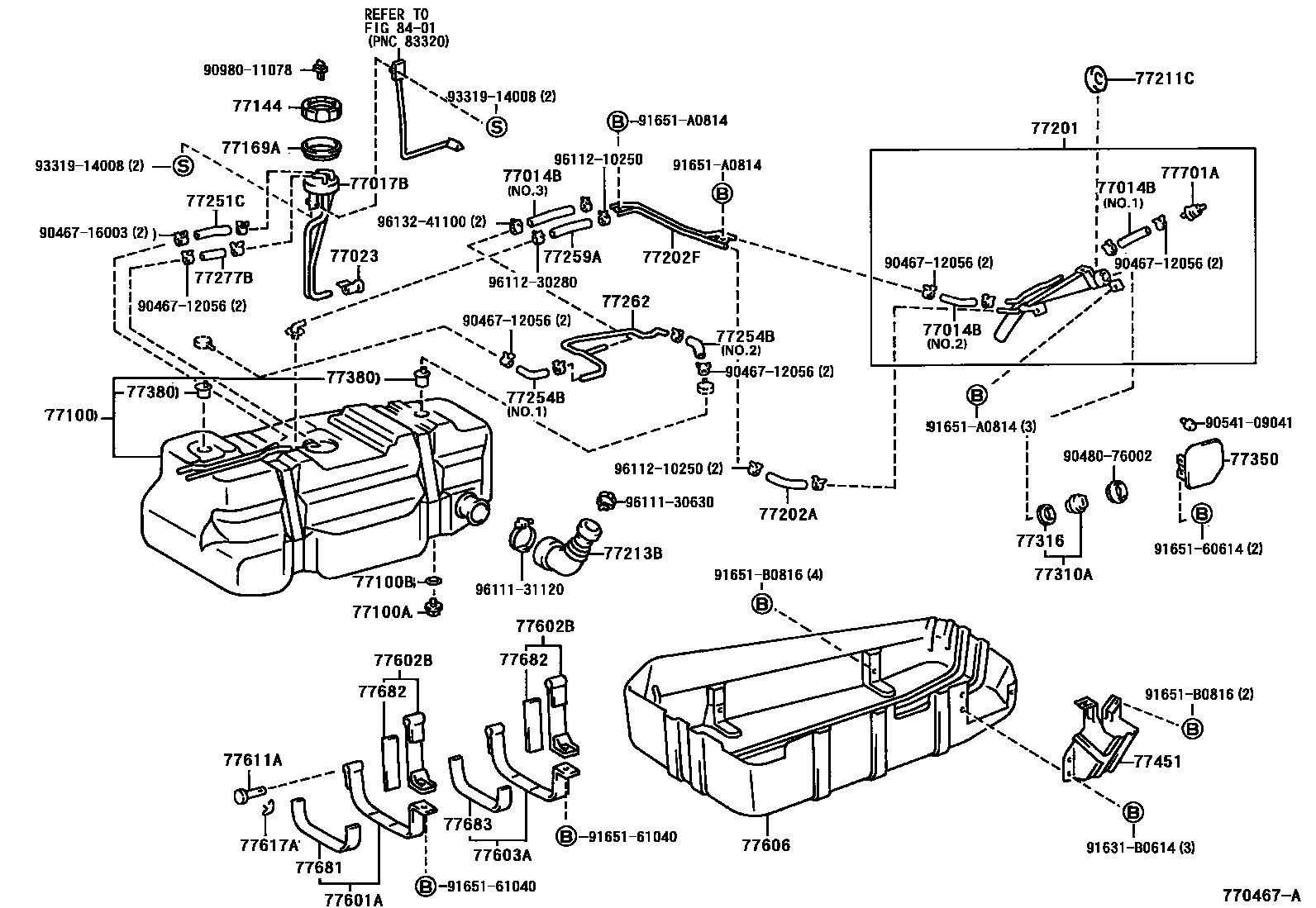

FUEL TANK & TUBE
77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
*H,L=100,NO.1
77017BTUBE SUB-ASSY, FUEL TANK VENT
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201PIPE SUB-ASSY, FUEL TANK INLET
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=240
77202FTUBE, FUEL, NO.1 (FOR BREATHER TUBE)
77211CPAD, FUEL INLET PIPE
77213BHOSE, FUEL TANK TO FILLER PIPE
77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
L=200(*H,L=120)
77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77259AHOSE, FUEL(FOR BREATHER TUBE)
L=135
77262TUBE, FUEL EMISSION, NO.2
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
L=100(*H,L=80)
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77380VALVE ASSY, FUEL CUT OFF
77451PROTECTOR, FUEL INLET HOSE
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77617AUNION, AUXILIARY FUEL BAND
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77683SEAT, FUEL TANK BAND, NO.3
77701AHOSE, FUEL, NO.1 (FOR BREATHER VALVE)
8401
9046712056
main90467-12056
9046716003
main90467-16003
9048076002
main90480-76002
9054109041
main90541-09041
9098011078
main90980-11078
91631B0614
main91631-B0614
9165160614
main91651-60614
9165161040
main91651-61040
91651A0814
main91651-A0814
91651B0816
main91651-B0816
9331914008
main93319-14008
9611130630
main96111-30630
9611131120
main96111-31120
9611210250
main96112-10250
9611230280
main96112-30280
9613241100
main96132-41100
50 parts on this diagram · 2 diagrams in section
