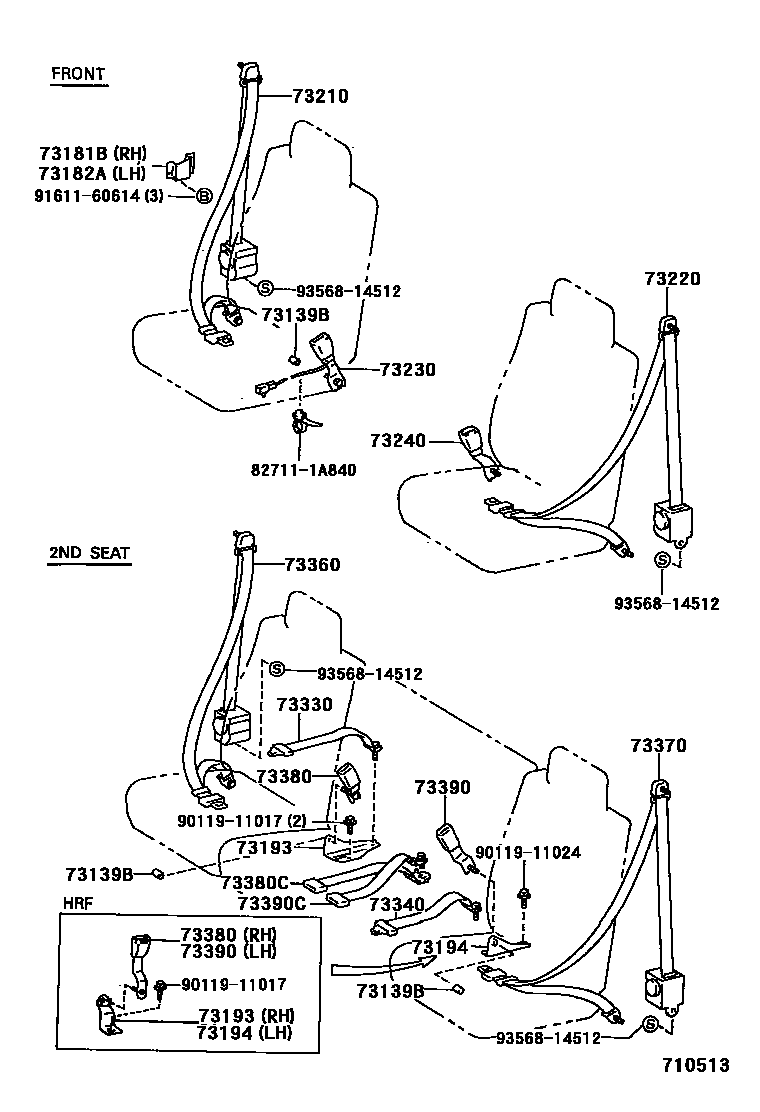

SEAT BELT
73139BCOVER, SEAT BELT ANCHOR
73181BGUIDE, FRONT SEAT LAP BELT, OUTER
73182AGUIDE, FRONT SEAT LAP BELT, OUTER LH
73193BRACKET, SEAT BELT INNER ANCHOR, NO.2 RH
73194BRACKET, SEAT BELT INNER ANCHOR, NO.2 LH
73210BELT ASSY, FRONT SEAT OUTER, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73380CBELT ASSY, REAR NO.1 SEAT, INNER RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
73390CBELT ASSY, REAR NO.1 SEAT, INNER LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
827111A840WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A840
9011911017
main90119-11017
9011911024
main90119-11024
9161160614
main91611-60614
9356814512
main93568-14512
22 parts on this diagram · 2 diagrams in section
