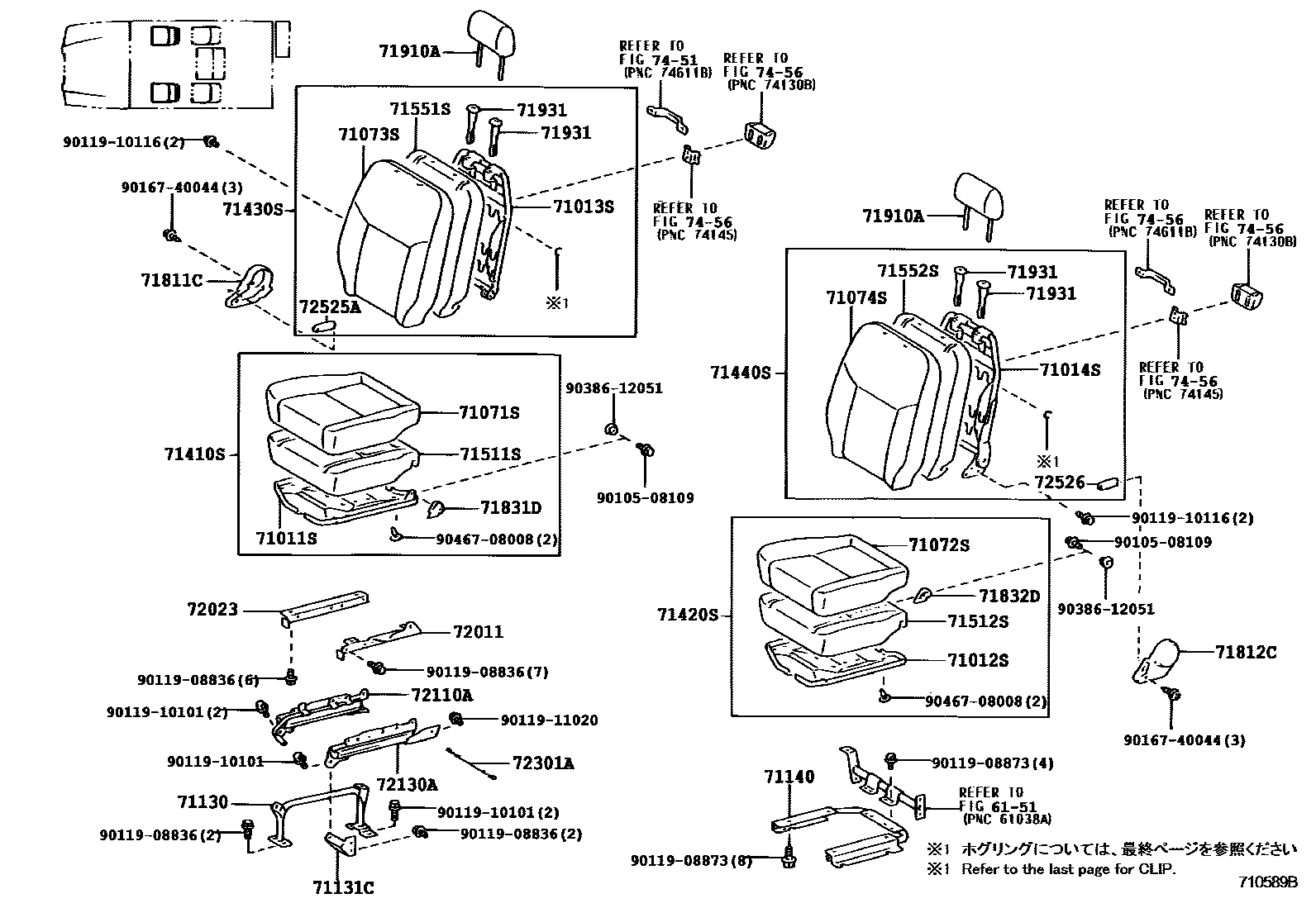

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1CLIP

6151

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-65030iBXD20199610

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-65020iBXD20199610

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-65010iBXD20199610

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-65030iBXD20..SRF199610

main71014-65050iBXD20..HRF199612

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-65040-B0iBXD20199610

BLUISH GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-65050-B0iBXD20199610

BLUISH GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-65050-B0iBXD20199610

BLUISH GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-65060-B0iBXD20199610

BLUISH GRAY,TRIM1#

71130LEG ASSY, FRONT SEAT, RH

main79110-65010iBXD20199610

71131CBRACKET, FRONT SEAT LEG, FRONT RH

main79118-65010iBXD20199610

71140LEG ASSY, FRONT SEAT, LH

main79120-65010iBXD20199610

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-65040-B0iBXD20199610

***,BLUISH GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-65040-B0iBXD20199610

***,BLUISH GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71401-65020-B0iBXD20199610

***,BLUISH GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71402-65030-B0iBXD20..SRF199610

***,BLUISH GRAY,TRIM1#

main71402-65060-B0iBXD20..HRF199612

***,BLUISH GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-65020iBXD20199610

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-65020iBXD20199610

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-95J20iBXD20199610

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-95J20iBXD20199610

71811CCOVER, RECLINING ADJUSTER, RH

main71811-95J00-B0iBXD20199610

BLUISH GRAY,TRIM1#

sub71811-95J00

71812CCOVER, RECLINING ADJUSTER, LH

main71812-95J00-B0iBXD20199610

GRAY,TRIM1#

sub71812-95J00

71831DCOVER, FRONT SEAT HINGE, RH

main71831-95J00-B0iBXD20199610

BLUISH GRAY,TRIM1#

sub71831-95J00

71832DCOVER, FRONT SEAT HINGE, LH

main71832-95J01-B0iBXD20199610

BLUISH GRAY,TRIM1#

sub71832-95J01

71910AHEADREST ASSY, FRONT SEAT

main71910-65010-B0iBXD20199610

BLUISH GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-26010-B0iBXD20199610

W(LOCK),BLUISH GRAY,TRIM1#

sub71930-26010

main71931-26010-B0iBXD20199610

W/O(LOCK),BLUISH GRAY,TRIM1#

sub71931-26010

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72011-65010iBXD20199610

72023RAIL SUB-ASSY, FRONT OUT SEAT TRACK, UPPER RH

main72023-65010iBXD20199610

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-65020iBXD20199610

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-65020iBXD20199610

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-65010iBXD20199610

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-95J01-B0iBXD20199610

BLUISH GRAY,TRIM1#

sub72525-95J01

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72525-95J01-B0iBXD20199610

BLUISH GRAY,TRIM1#

sub72525-95J01

7451

7456

9010508109

main90105-08109

9011908836

main90119-08836

9011908873

main90119-08873

9011910101

main90119-10101

9011910116

main90119-10116

9011911020

main90119-11020

9016740044

main90167-40044

9038612051

main90386-12051

9046708008

main90467-08008

44 parts on this diagram · 6 diagrams in section
