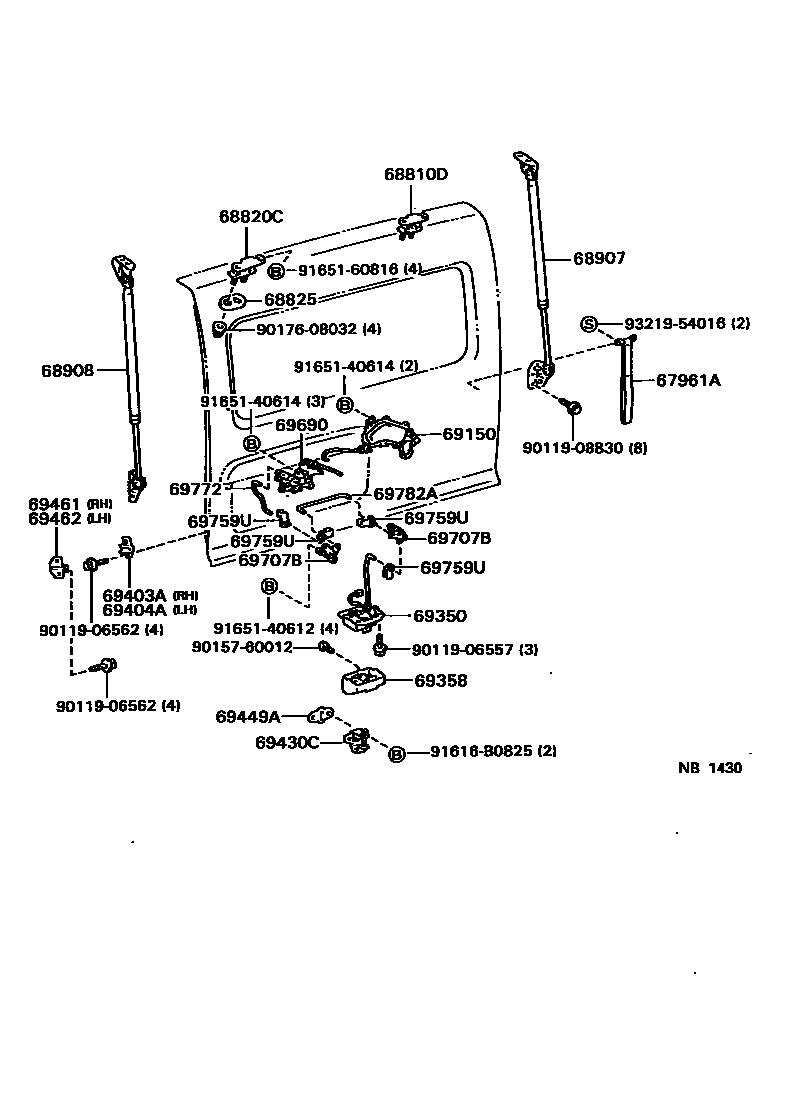

BACK DOOR LOCK & HINGE
67961ASTRAP, BACK DOOR PULL
sub67961-26020
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68825PLATE, BACK DOOR HINGE
68907STAY SUB-ASSY, BACK DOOR DAMPER, RH
68908STAY SUB-ASSY, BACK DOOR DAMPER, LH
69150ACTUATOR ASSY, BACK DOOR LOCK
69350LOCK ASSY, BACK DOOR
69358PROTECTOR, BACK DOOR LOCK
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
sub69403-26050
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
sub69403-26050
69430CSTRIKER ASSY, BACK DOOR LOCK
69449ASHIM, BACK DOOR LOCK STRIKER
69461STOPPER, BACK DOOR SIDE MALE, RH
69462STOPPER, BACK DOOR SIDE MALE, LH
69690CONTROL ASSY, BACK DOOR REMOTE
69707BBELLCRANK SUB-ASSY, DOOR LOCK CONTROL, LOWER
69759USNAP, BACK DOOR LOCK CONTROL LINK
69772ROD, BACK DOOR LOCK CONTROL
69782AROD, BACK DOOR LOCK CONTROL, NO.3
9011906557
main90119-06557
9011906562
main90119-06562
9011908830
main90119-08830
9015760012
main90157-60012
9017608032
main90176-08032
91616B0825
main91616-B0825
9165140612
main91651-40612
9165140614
main91651-40614
9165160816
main91651-60816
9321954016
main93219-54016
30 parts on this diagram · 1 diagram in section
