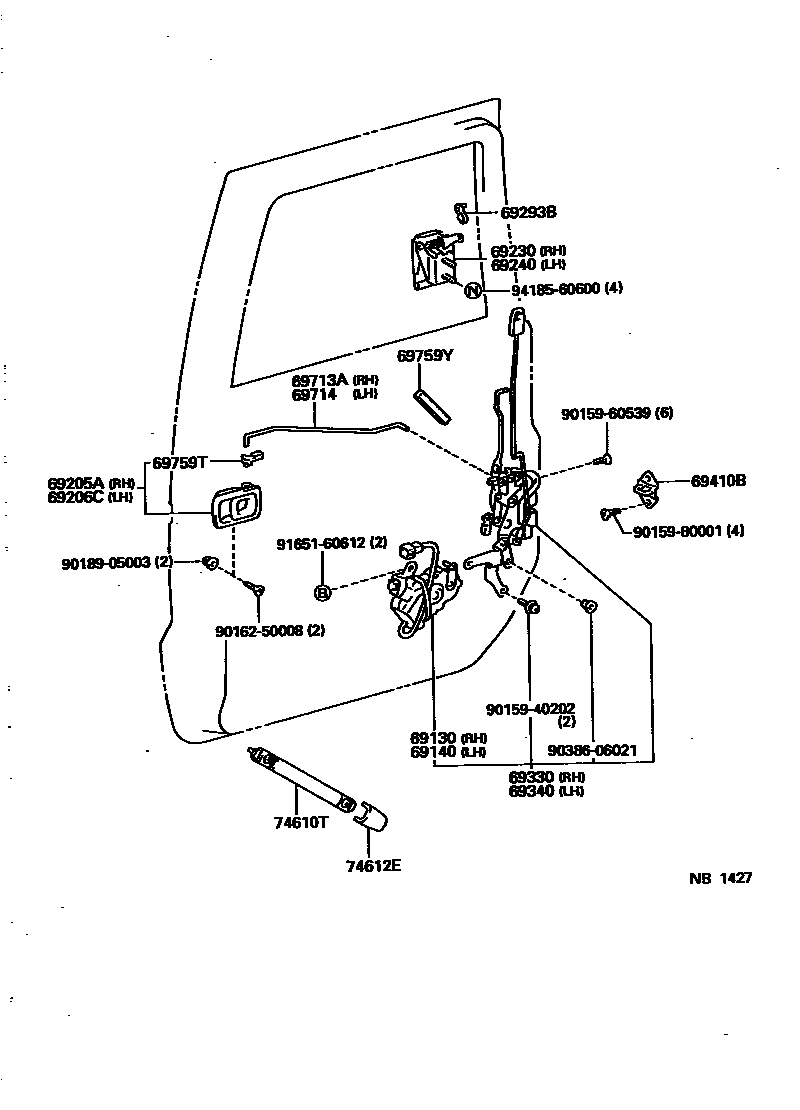

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69110-37010iBXD20199610

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69120-37010iBXD20199610

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-10040-B1iBXD20199610

GRAY,TRIM1#

sub69205-10040

sub69205-10030

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-10040-B1iBXD20199610

GRAY,TRIM1#

sub69206-10040

sub69206-10030

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-65020iBXD20199610

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-65020iBXD20199610

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-22010iBXD20199610

WHITE

main69293-22020iBXD20199610

YELLOW

69330LOCK ASSY, REAR DOOR, RH

main69050-65010-C0iBXD20199610

BLACK,TRIM1#

69340LOCK ASSY, REAR DOOR, LH

main69060-65010-C0iBXD20199610

BLACK,TRIM1#

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-89103iBXD20199610

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69711-65010iBXD20199610

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69712-65010iBXD20199610

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-20060iBXD20199610

GRAY

main69759-20070iBXD20199610

GREEN

69759YSILENCER, REAR DOOR LOCK LINK

main69759-65010iBXD20199610

74610TGRIP ASSY, ASSIST

main74610-33030-B1iBXD20199610

LT.BLUISH GRAY,TRIM1#

74612ECOVER, ASSIST GRIP

main74612-22050-B4iBXD20199610

LT.BLUISH GRAY,TRIM1#

sub74612-22050

sub74612-20050

9015940202

main90159-40202

9015960539

main90159-60539

9015980001

main90159-80001

9016250008

main90162-50008

9018905003

main90189-05003

9038606021

main90386-06021

9165160612

main91651-60612

9418560600

main94185-60600

24 parts on this diagram · 1 diagram in section
