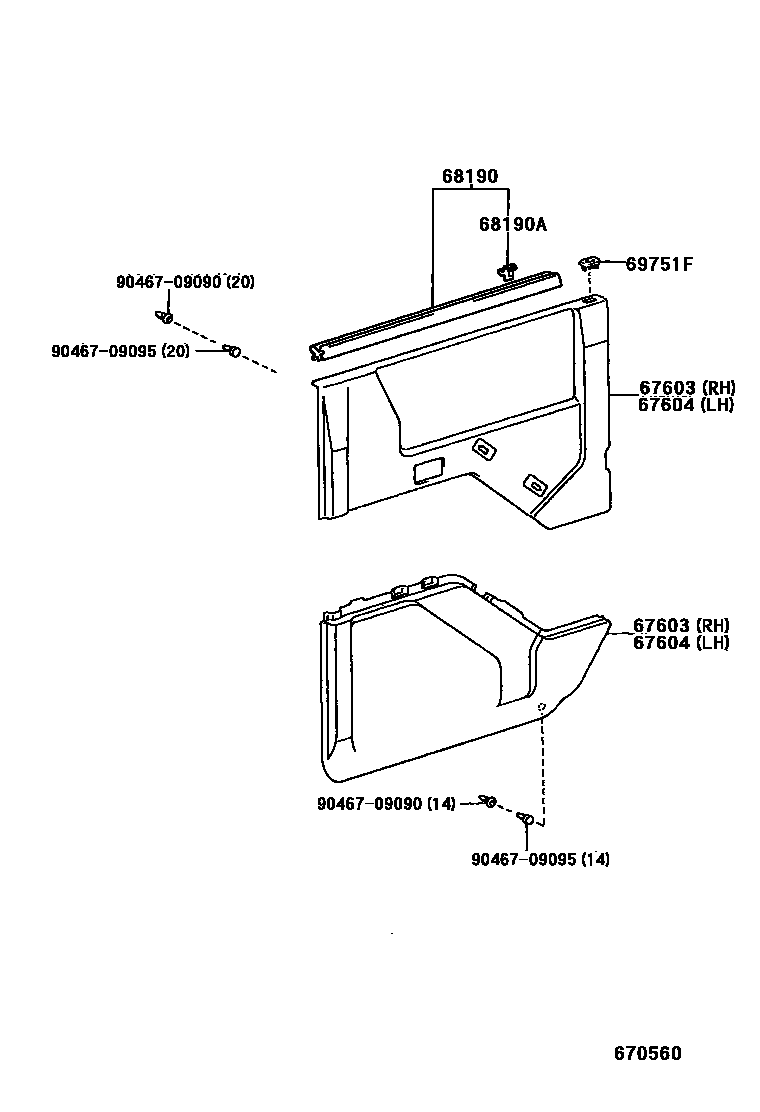

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67611-65030-B0iBXD20199610

LT.BLUISH GRAY,TRIM1#,LOWER

main67613-65010-B0iBXD20199610

LT.BLUISH GRAY,TRIM1#,UPPER

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67612-65020-B0iBXD20199610

LT.BLUISH GRAY,TRIM1#,UPPER

main67612-65030-B0iBXD20199610

LT.BLUISH GRAY,TRIM1#,LOWER

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68170-65020×4iBXD20199610

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68212-89101×12iBXD20199610

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12040-C0×2iBXD20199610

BLACK,TRIM1#

9046709090

main90467-09090

9046709095

main90467-09095

7 parts on this diagram · 2 diagrams in section
