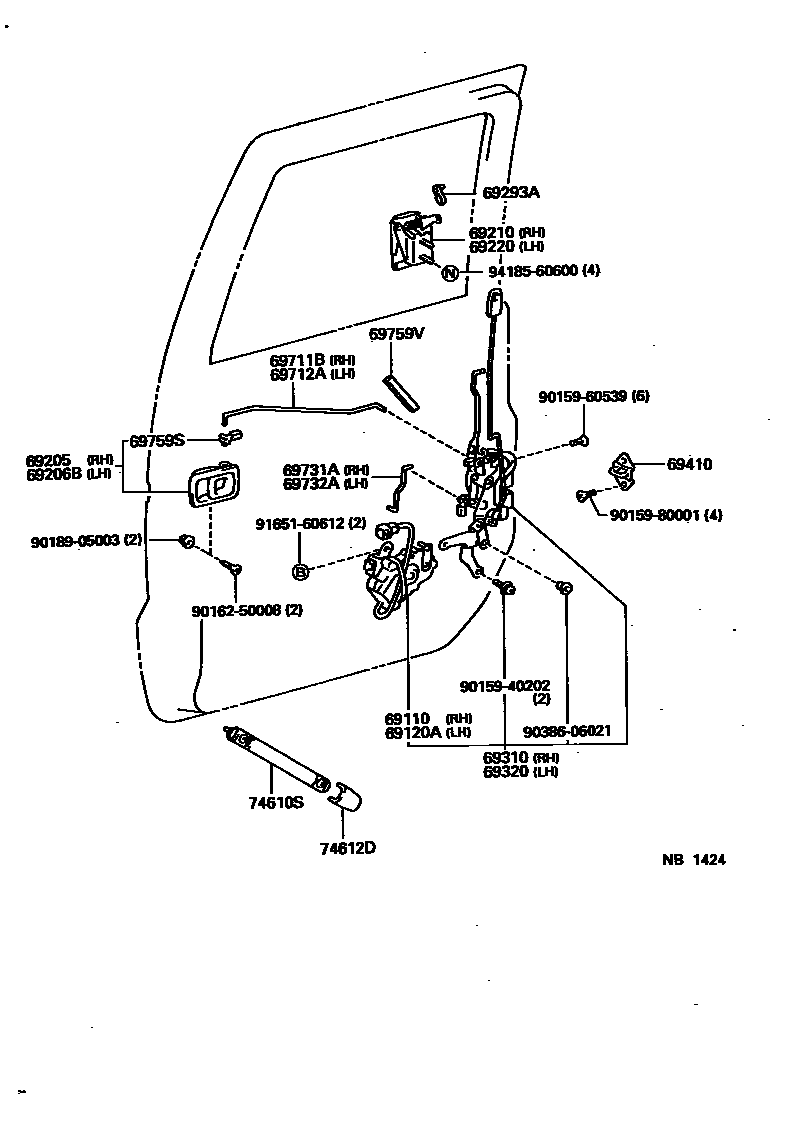

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37010iBXD20199610

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37010iBXD20199610

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-B1iBXD20199610

GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-B1iBXD20199610

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-65020iBXD20199610

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-65020iBXD20199610

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-22010iBXD20199610

WHITE

main69293-22020iBXD20199610

YELLOW

69310LOCK ASSY, FRONT DOOR, RH

main69030-65010-C0iBXD20199610

BLACK,TRIM1#

69320LOCK ASSY, FRONT DOOR, LH

main69040-65010-C0iBXD20199610

BLACK,TRIM1#

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-89103iBXD20199610

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-65010iBXD20199610

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-65010iBXD20199610

69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-65010iBXD20199610

69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-65010iBXD20199610

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iBXD20199610

GRAY

main69759-20070iBXD20199610

GREEN

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-65010iBXD20199610

74610SGRIP ASSY, ASSIST

main74610-33030-B1iBXD20199610

LT.BLUISH GRAY,TRIM1#

74612DCOVER, ASSIST GRIP

main74612-22050-B4iBXD20199610

LT.BLUISH GRAY,TRIM1#

9015940202

main90159-40202

9015960539

main90159-60539

9015980001

main90159-80001

9016250008

main90162-50008

9018905003

main90189-05003

9038606021

main90386-06021

9165160612

main91651-60612

9418560600

main94185-60600

26 parts on this diagram · 1 diagram in section
