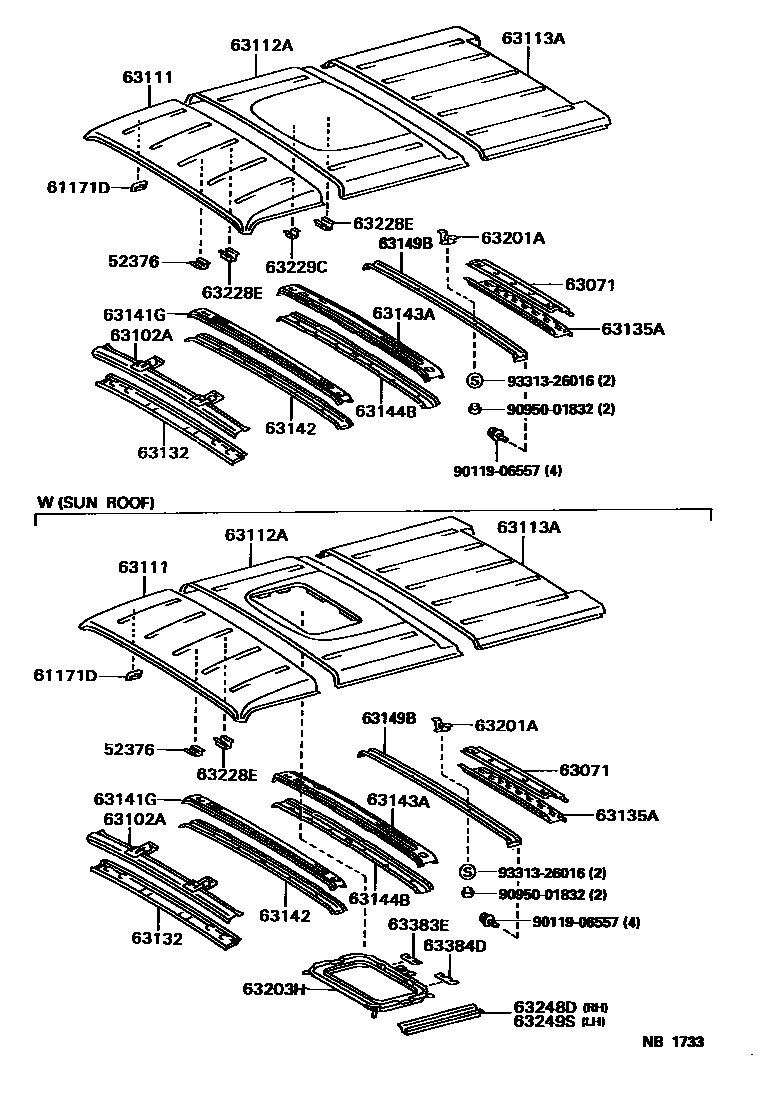

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

52376BRACKET, MOUNTING HOOK GUIDE

main52376-65010iBXD20199610

61171DBRACKET, ANTENNA POLE MOUNTING

main61171-65020iBXD20199610

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-65010iBXD20199610

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-65010iBXD20199610

63111PANEL, ROOF

main63111-65030iBXD20199610

63112APANEL, ROOF, NO.2

main63112-65030iBXD20..SRF199610

main63112-65040iBXD20..SRF199610

W(SUN ROOF)

main63112-65050iBXD20..HRF199612

63113APANEL, ROOF, NO.3

main63113-65040iBXD20..SRF199610

main63113-65050iBXD20..HRF199612

63132PANEL, WINDSHIELD HEADER, INNER

main63132-65010iBXD20199610

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-65010iBXD20199610

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-65020iBXD20..SRF199610

W(SUN ROOF)

main63141-65030iBXD20199610

sub63103-65020

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-65010iBXD20199610

63143AREINFORCEMENT, ROOF PANEL

main63143-65030iBXD20..SRF199610

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-65030iBXD20..SRF199610

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63104-65030iBXD20..SRF199610

63201APANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

main63201-92605iBXD20..SRF199610

63203HHOUSING SUB-ASSY, REMOVABLE ROOF

main63203-65020iBXD20..SRF199610

63228EBRACKET, ROOF HEADLINING, NO.1

main63228-65010iBXD20..SRF199610

W(SUN ROOF)

63229CBRACKET, ROOF HEADLINING, NO.2

main63229-65020iBXD20..SRF199610

63248DSUPPORT, REMOVABLE ROOF HOUSING, RH

main63248-65010iBXD20..SRF199610

63249SSUPPORT, REMOVABLE ROOF HOUSING, LH

main63249-65040iBXD20..SRF199610

63383ERETAINER, ROOF HEADLINING TRIM, REAR RH

main63383-42010iBXD20..SRF199610

63384DRETAINER, ROOF HEADLINING TRIM, REAR LH

main63384-42010iBXD20..SRF199610

9011906557

main90119-06557

9095001832

main90950-01832

9331326016

main93313-26016

25 parts on this diagram · 3 diagrams in section
