FLOOR MAT & SILENCER PAD
58511HMAT, FLOOR, FRONT RH
BLUISH GRAY,TRIM1#
58512HMAT, FLOOR, FRONT LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
58513CMAT, FLOOR, FRONT CENTER
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
58514FMAT, FRONT FLOOR, CENTER NO.2
BLUISH GRAY,TRIM1#
58515CMAT, FRONT FLOOR, REAR NO.1
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
58516BMAT, FRONT FLOOR, REAR NO.2
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
58517DMAT, REAR FLOOR
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
58519BMAT, REAR WHEEL HOUSE, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
58525CMAT, REAR FLOOR, REAR NO.1 LH
BLUISH GRAY,TRIM1#
58529BMAT, REAR WHEEL HOUSE, LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
58881BBOX, EQUIPMENT SET
64913APLATE, DOOR SCUFF
67913PLATE, FRONT DOOR SCUFF, RH
BLUISH GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
BLUISH GRAY,TRIM1#
67917APLATE, REAR DOOR SCUFF, RH
BLUISH GRAY,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
BLUISH GRAY,TRIM1#
9018904085
main90189-04085
9046706017B0
main90467-06017B0
9053006001
main90530-06001
9053006007
main90530-06007
9353014014
main93530-14014
9356054014
main93560-54014

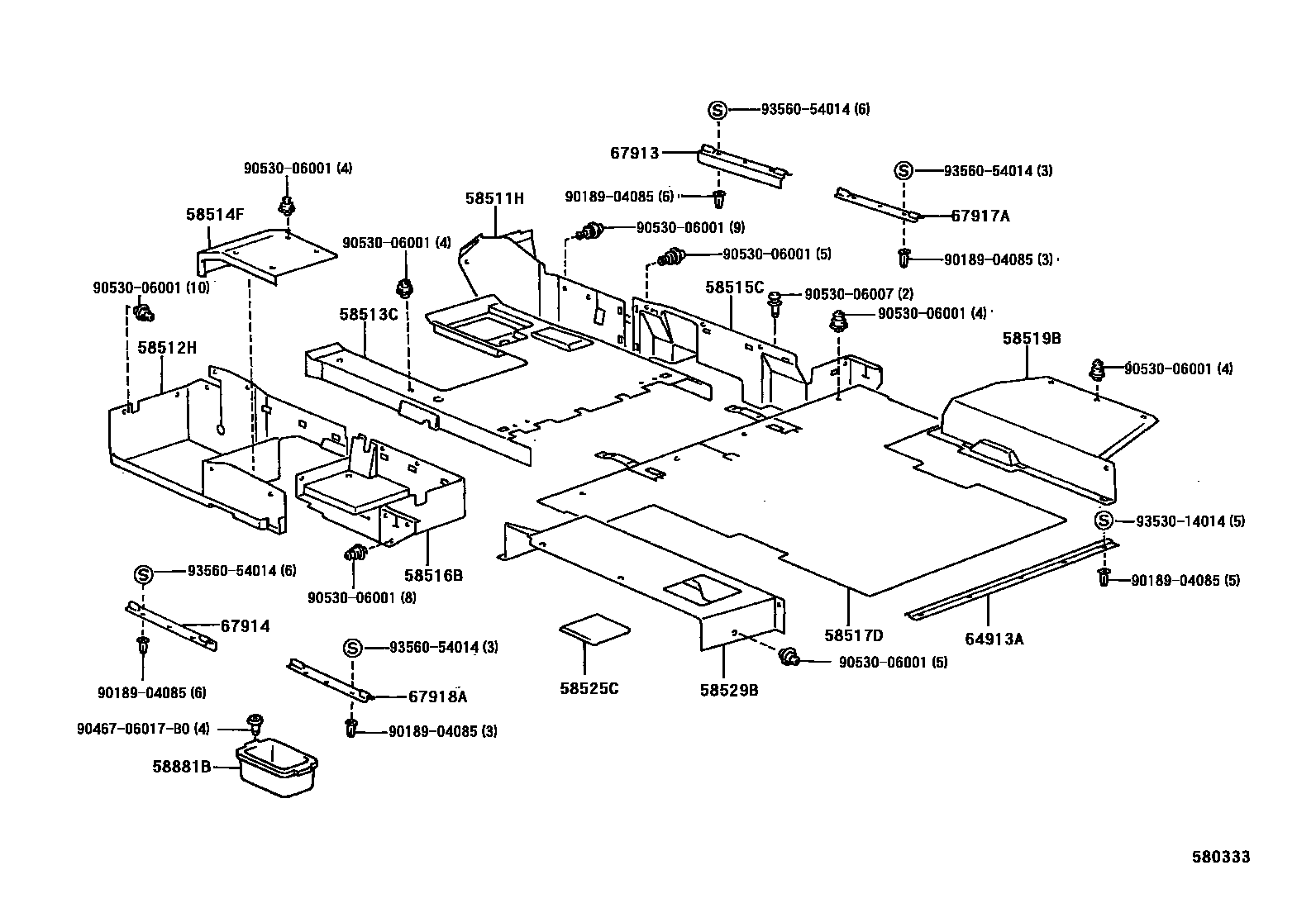

22 parts on this diagram · 1 diagram in section
