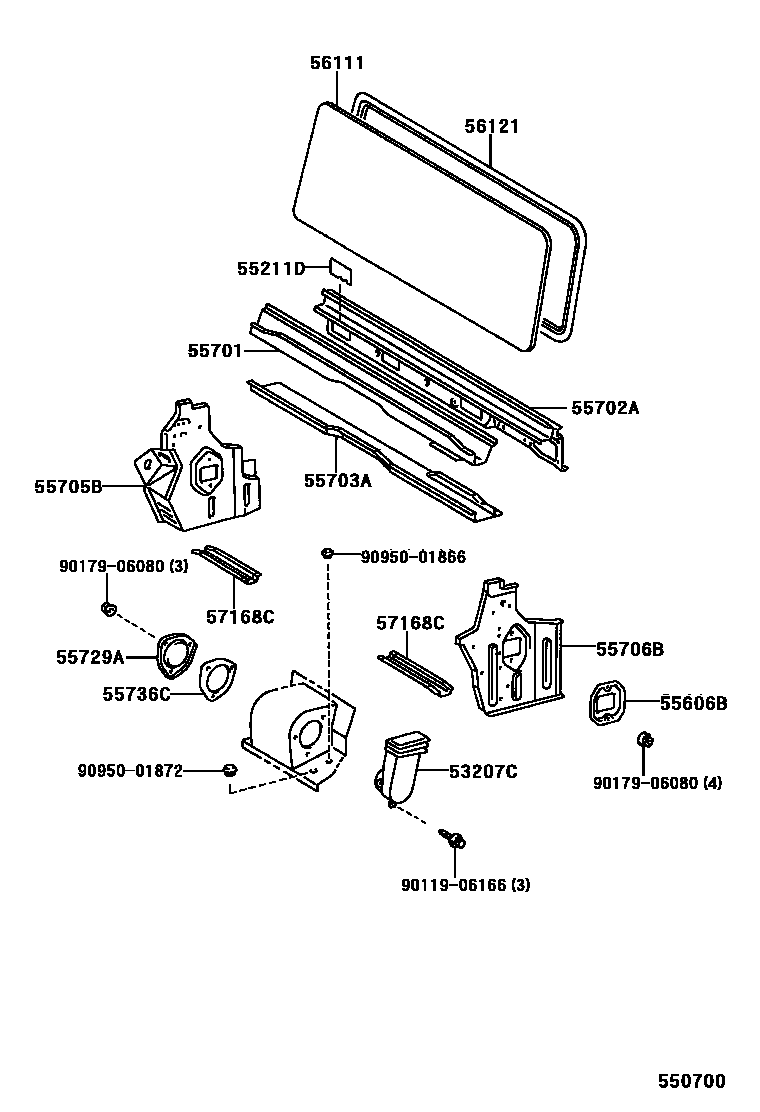

COWL PANEL & WINDSHIELD GLASS

53207CDUCT SUB-ASSY, COOL AIR INTAKE

main53207-65020iBXD20¥5,100199610

55211DSILENCER, FRONT PANEL, UPPER

main55211-65010iBXD20¥1,190199610

55606BCOVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-65010iBXD20¥3,370199610

55701PANEL SUB-ASSY, COWL

main55701-65050iBXD20¥31,500199610-200105

sub55701-65070¥31,500

main55701-65070iBXD20¥31,500200105

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-65030iBXD20¥38,600199610

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-65030iBXD20¥19,200199610-199906

main55703-65050iBXD20¥19,200199906

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55706-65030iBXD20¥28,600199610-200110

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55707-65100iBXD20¥21,500199610-200110

55729ACOVER, COWL PANEL HOLE

main55729-65010iBXD20¥1,720199610

55736CSEAL, WATER GUARD PLATE

main55736-65010iBXD20¥440199610

56111GLASS, WINDSHIELD

main56111-65030iBXD20¥76,800199610

*TL,T=4.7,GREEN

56121WEATHERSTRIP, WINDSHIELD

main56121-65030iBXD20¥9,300199610

57168CMEMBER, FRONT FLOOR, LH

main57168-65010iBXD20¥6,700199610-200110

9011906166

main90119-06166¥80

9017906080

main90179-06080¥80

9095001866

main90950-01866¥120

9095001872

main90950-01872¥220

17 parts on this diagram · 1 diagram in section
