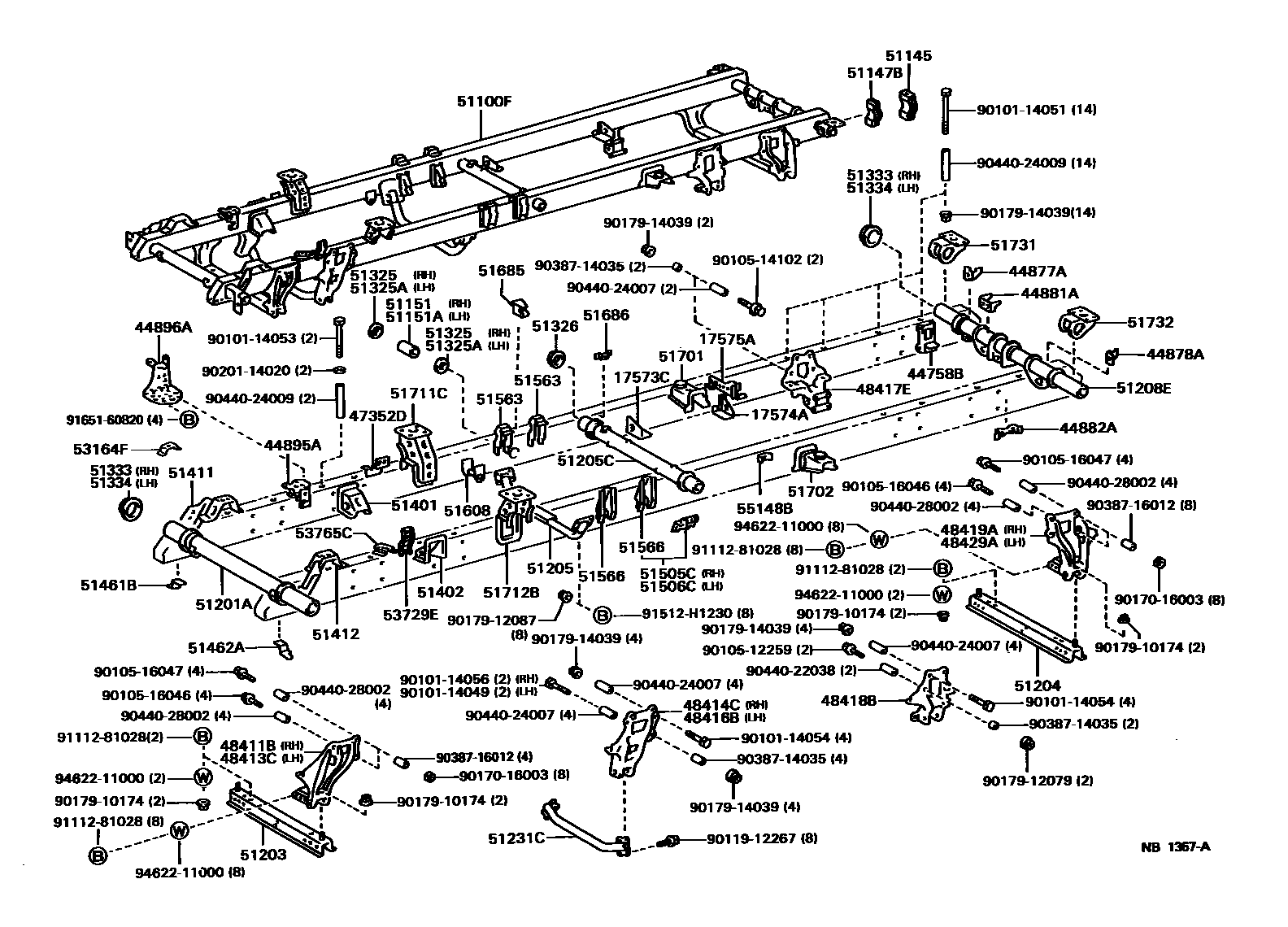

FRAME
17573CBRACKET, EXHAUST PIPE SUPPORT, NO.3
17574ABRACKET, EXHAUST PIPE SUPPORT, NO.4
17575ABRACKET, EXHAUST PIPE SUPPORT, NO.5
44758BBRACKET, AIR RESERVOIR SIDE RAIL
44877ABRACKET, TRAILER AIR BRAKE COUPLING, NO.1
44878ABRACKET, TRAILER AIR BRAKE COUPLING, NO.2
44881ABRACKET, AIR BRAKE REDUCING VALVE
44882ABRACKET, AIR BRAKE RELAY VALVE
44895ABRACKET, AIR BRAKE COMPRESSOR SIDE RAIL
44896ABRACKET, AIR BRAKE COMPRESSOR
47352DBRACKET, FLEXIBLE HOSE, NO.2
48411BBRACKET, SPRING, NO.1 RH
48413CBRACKET, SPRING, NO.2 LH
48414CBRACKET, SPRING, NO.3 RH
48416BBRACKET, SPRING, NO.4 RH
48417EBRACKET, SPRING, NO.5
48418BBRACKET, SPRING, NO.6
48419ABRACKET, SPRING, NO.7
48429ABRACKET, SPRING, NO.8
51100FFRAME SUB-ASSY
51145STIFFENER, FRAME SIDE RAIL
51147BSEAL, FRAME SIDE RAIL STIFFENER
51151REINFORCEMENT, SIDE RAIL, NO.1
51151AREINFORCEMENT, SIDE RAIL, NO.1
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51208ECROSSMEMBER SUB-ASSY, FRAME, NO.8
51231CCROSSMEMBER, FRAME, NO.3
51325RETAINER, FRAME NO.2 CROSSMEMBER
51325ARETAINER, FRAME NO.2 CROSSMEMBER
51326RETAINER, FRAME NO.2 CROSSMEMBER, LH
51333RETAINER, FRAME NO.3 CROSSMEMBER, RH
51334RETAINER, FRAME NO.3 CROSSMEMBER, LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51411BRACKET, RADIATOR SUPPORT, RH
51412BRACKET, RADIATOR SUPPORT, LH
51461BBRACKET, RADIATOR MOUNTING, LOWER RH
51462ABRACKET, RADIATOR MOUNTING, LOWER LH
51505CSUPPORT SUB-ASSY, ANCHOR ARM, RH
51506CSUPPORT SUB-ASSY, ANCHOR ARM, LH
51563BRACKET, ANCHOR ARM SUPPORT
51566SUPPORT, ANCHOR ARM
51608SUPPORT SUB-ASSY, REAR STEERING LEVER SIDE RAIL
51685BRACKET, CABLE SUPPORT SIDE RAIL
51686BRACKET, CABLE CLAMP SIDE RAIL
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51711CBRACKET, CAB MOUNTING, NO.1 RH
51712BBRACKET, CAB MOUNTING, NO.1 LH
51731BRACKET, CAB REAR MOUNTING, RH
51732BRACKET, CAB REAR MOUNTING, LH
53164FBRACKET, RADIATOR SUPPORT SIDE
53729EBRACKET, FENDER APRON, LH
53765CBRACKET, FUEL FILTER MOUNTING
55148BBRACKET, POWER STEERING TUBE
9010114049
main90101-14049
9010114051
main90101-14051
9010114053
main90101-14053
9010114054
main90101-14054
9010114056
main90101-14056
9010512259
main90105-12259
9010514102
main90105-14102
9010516046
main90105-16046
9010516047
main90105-16047
9011912267
main90119-12267
9017016003
main90170-16003
9017910174
main90179-10174
9017912079
main90179-12079
9017912087
main90179-12087
9017914039
main90179-14039
9020114020
main90201-14020
9038714035
main90387-14035
9038716012
main90387-16012
9044022038
main90440-22038
9044024007
main90440-24007
9044024009
main90440-24009
9044028002
main90440-28002
9111281028
main91112-81028
91512H1230
main91512-H1230
9165160820
main91651-60820
9462211000
main94622-11000
85 parts on this diagram · 1 diagram in section
